Trainor Sports 18201920080US Owner's Manual

8ft round trampoline and enclosure
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

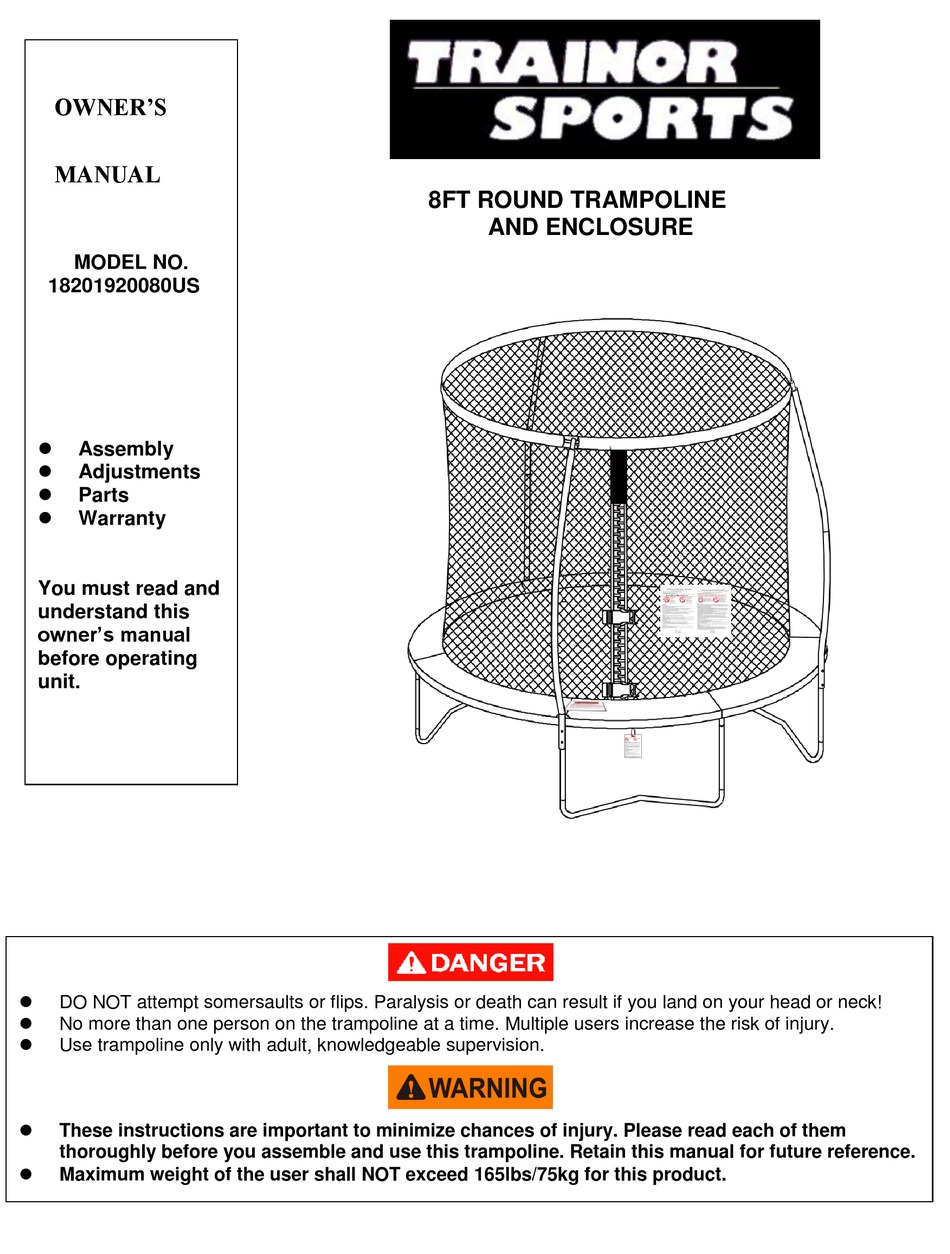

OWNER'S
MANUAL
MODEL NO.
18201920080US
Assembly
Adjustments
Parts
Warranty
You must read and
understand this
owner's manual
before operating
unit.
DO NOT attempt somersaults or flips. Paralysis or death can result if you land on your head or neck!
No more than one person on the trampoline at a time. Multiple users increase the risk of injury.
Use trampoline only with adult, knowledgeable supervision.
These instructions are important to minimize chances of injury. Please read each of them
thoroughly before you assemble and use this trampoline. Retain this manual for future reference.
Maximum weight of the user shall NOT exceed 165lbs/75kg for this product.
8FT ROUND TRAMPOLINE
AND ENCLOSURE
