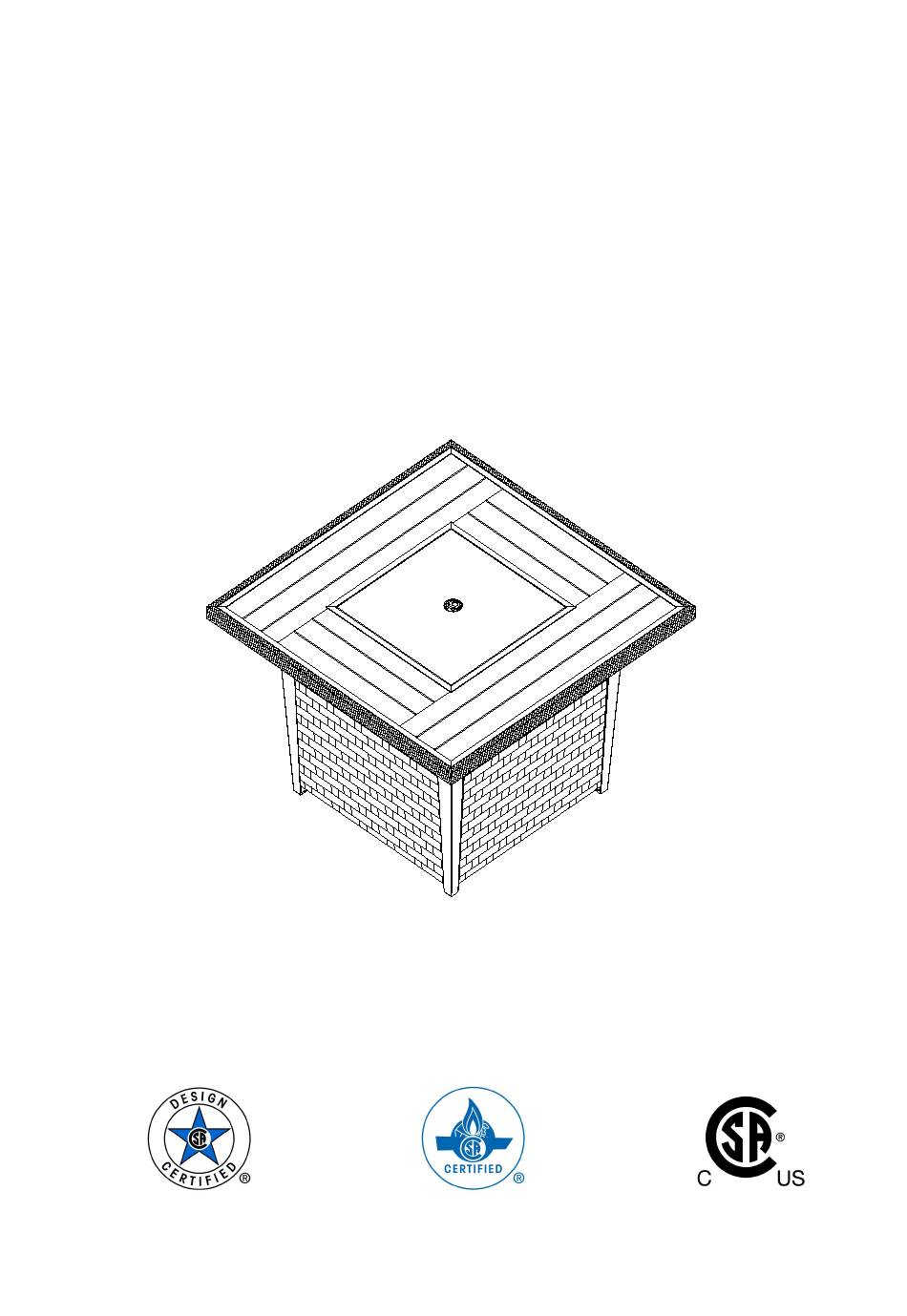

- Page 1 OWNER’S MANUAL OUTDOOR GAS FIRE PIT BATTERY,NG CONVERSION KIT NOT INCLUDED FP-004T / GN2S321E IMPORTANT，RETAIN FOR FUTURE REFERENCE:READ CAREFULLY FOR OUTDOOR USE ONLY.NOT FOR COMMERICAL USE...
-
Page 2: Safety Information
SAFETY INFORMATION Please read and understand this entire manual before attempting to assemble, operate or install the product. This appliance has been tested to and complies with the ANSI Z21.97-2017, Outdoor Decorative Gas Appliances. When connecting to a fixed piping system, The installation must conform to local codes or the absence of local codes to the National Fuel Gas Code. - Page 3 SAFETY INFORMATION WARNING DANGER Certain materials or items, when stored under the fire DANGER indicates an imminently pit, will be subjected to radiant heat and could be hazardous situation which, if not avoided, will result in death or serious seriously damaged. injury.
-
Page 4: Carbon Monoxide Hazard
SAFETY INFORMATION WARNING WARNING We cannot foresee every use which may be made of Improper installation, adjustment, our fire pit. alteration, service or maintenance can Check with your local fire safety authority if you have cause property damage, injury or questions about fire pit use. - Page 5 OPERATION CHECKLIST Operation Checklist For a safe and pleasurable heating experience, perform this check before each use. Before Operating: 1. I am familiar with entire owner’s manual and understand all precautions noted. 2. All components are properly assembled, intact and operable. 3.
-
Page 6: Exploded View
EXPLODED VIEW... -
Page 7: Part List
PART LIST PART NO. DESCRIPTION Table top Table base left side panel Table base back panel Table base right side panel Tank shelf Door support Door Glass beads 8 kgs Glass windshield 1 set Rain Cover SCREW PACKAGE PART NO. Description Picture ①... - Page 8 ASSEMBLY INSTRUCTIONS Step 1 ③x2 ① ③ Step 2 ③x2 ① ③...
- Page 9 Step 3 ③x4 ① ③ Step 4 ④x2 ① ④...
- Page 10 Step 5 ②x2 ③x2 ① ② ③ Step 6 ③x6 ① ③...
- Page 11 Step 7 Step 8 × √...
- Page 12 Step 9 Step 10...
- Page 13 Step 11 Step 12...
-
Page 14: Installing Lp Gas Tank
INSTALLING LP GAS TANK Connect LP Gas Tank Before connecting, be sure that there is no debris caught in the head of the LP gas tank, head of the regulator valve or in the head of the burner and burner ports. LP GAS Connect regulator/hose assembly to tank by turning knob clockwise stops. -
Page 15: Leak Testing
LEAK TESTING WARNING: Before using this outdoor fire pit, make sure you have read, understand and are following all information provided in the Dangers and Warnings. Failure to follow those instructions can cause death ,serious injury or property damage. WARNING Never use your fire pit without leak testing all gas connections, hoses and propane tank. -
Page 16: Battery Installation
BATTERY INSTALLATION 1xAAA Battery (Battery not included) Put correct Battery in before use. STORAGE FOR TABLE COVER Step 1... - Page 17 Step2 Step3...
-
Page 18: Lighting Instructions
LIGHTING INSTRUCTIONS Caution: Keep outdoor gas cooking appliance area clear and free from combustible materials, gasoline and other flammable vapors and liquids. Caution: Do not obstruct the flow of combustion and ventilation air. Caution: Check and clean burner/venturi tubes for insects and insect nests. A clogged tube can lead to a fire beneath the grill. -
Page 19: Troubleshooting
TROUBLESHOOTING PROBLEM POSSIBLE CAUSE CORRECTIVE ACTION Propane cylinder is empty Replace propane cylinder Burner won’t light Blockage in orifice Clear blockage Control knob is not in ON position Turn control knob to ON Turn cylinder valve OFF and fill the Gas pressure is low cylinder Outdoor temperature is less than 40ºF and... -
Page 20: Care And Maintenance
CARE AND MAINTENANCE CAUTION: All cleaning and maintenance should be done when fire pit is cool and with the fuel supply disconnected. 1. DO NOT clean any outdoor fire pit part in a self cleaning oven. The extreme heat will damage the finish. 2. - Page 21 ASSEMBLY GLASS WINDSHIELD...
