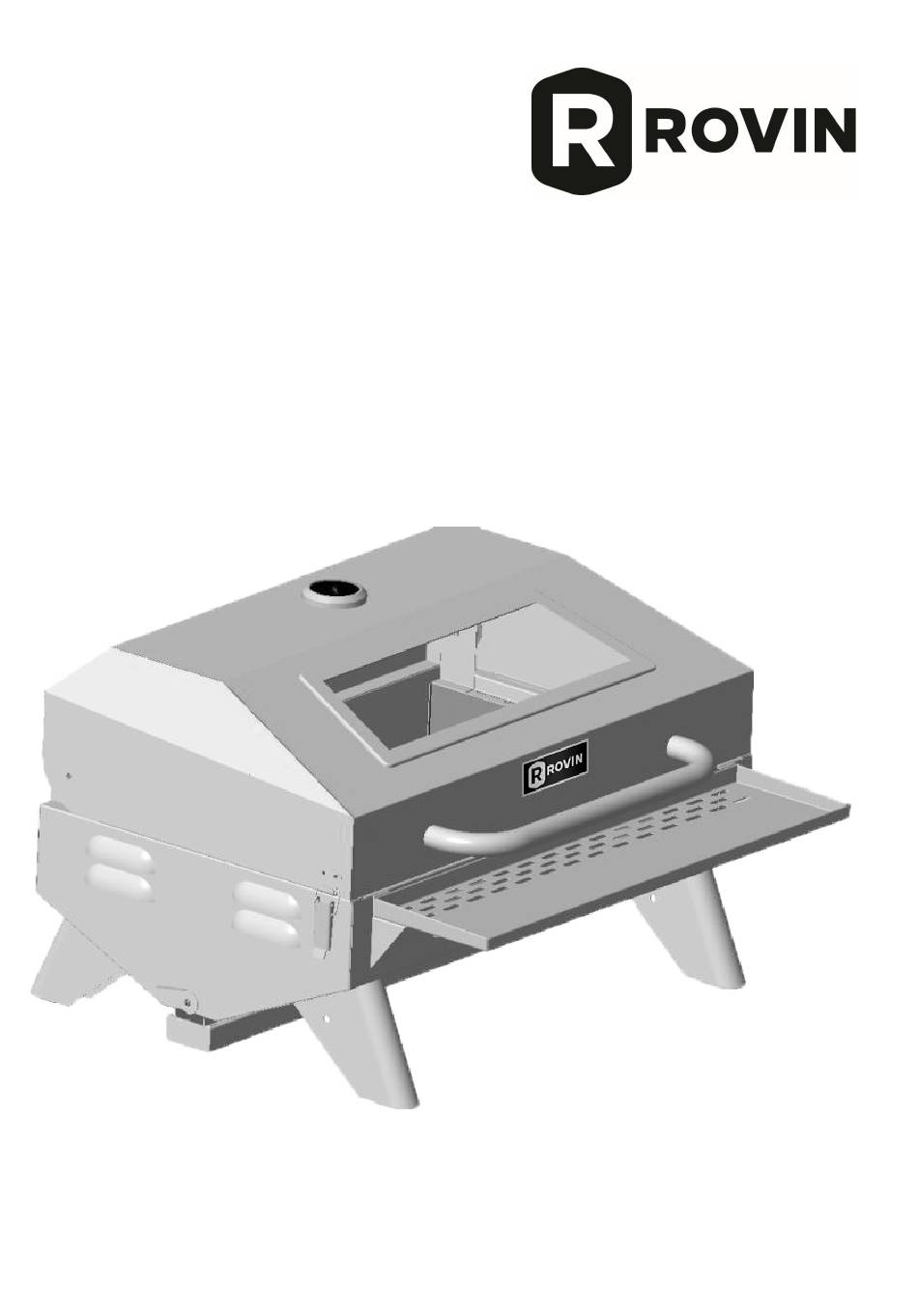

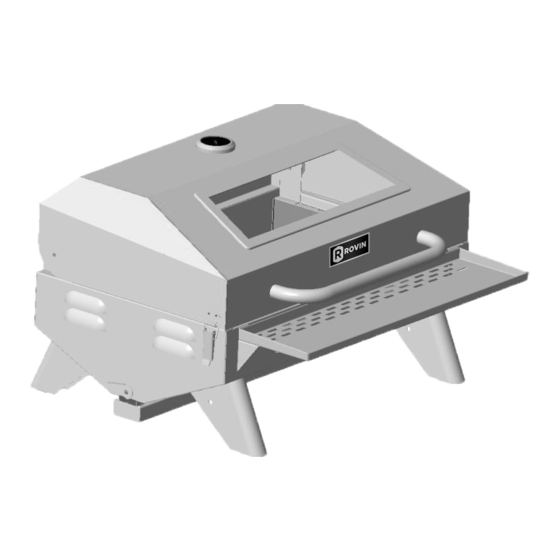

- Page 1 ASSEMBLY & OPERATION INSTRUCTIONS FOR OUTDOOR 316 MARINE GAS BARBECUE FOR MODEL# ROVIN BBQWF ( ) 1...
-
Page 2: If You Smell Gas
SAFETY INSTRUCTIONS READ THE FOLLOWING INSTRUCTIONS CAREFULLY AND BE SURE YOUR BARBECUE IS PROPERLY ASSEMBLED, INSTALLED AND MAINTAINED. FAILURE TO FOLLOW THESE INSTRUCTIONS MAY RESULT IN SERIOUS INJURIES AND/OR PROPERTY DAMAGE. THESE INSTRUCTIONS SHOULD BE KEPT BY THE BARBECUE USER FOR FUTURE REFERENCE. - Page 3 SAFETY INSTRUCTIONS The parts that make up the fuel system are designed for operation with the ROVIN BBQWF only. They must not be replaced with any other brand. (See parts list for replacement items.) DO NOT MODIFY THIS APPLIANCE. Ensure appliance has been installed properly. If any faults are detected please contact a qualified maintenance operator for service before attempting to use...
- Page 4 For a partial enclosure that includes an overhead cover and more than two walls, the following shall apply: • At least 25% total surrounding is completely open and at least 30% of remaining wall area is open and unrestricted. (see figure 4 and 5) •...
- Page 5 ( ) 5...
- Page 6 SAFETY INSTRUCTIONS INSTALLATION OF COOKING PLATE The cooking plate must be installed in the correct orientation, with the grill section located on the right-hand side where the burner ports are well protected. Incorrect installation may lead to a hazardous situation. ever allow children near SURFACES.
-
Page 7: Connecting Gas Cylinder
LPG is a mix of butane and propane. In Australia this mixture is usually quite consistent, but in other countries such as New Zealand the mixture can vary a lot more. This ROVIN barbecue has been tested and approved for Australia only. -
Page 8: Lighting Your Barbecue
SAFETY INSTRUCTIONS Failure to follow these instructions may result in an explosion of fire that may cause property damage, serious injury or death. BEFORE USING BARBECUE • Remove any protective packaging used during transit. • Make sure the LPG cylinder valve is in its full OFF position. •... -
Page 9: Manual Ignition
• Most parts on the ROVIN BBQWF are made of 316 stainless steel (see parts list). It can be cleaned easily with warm soapy water, or stainless steel cleaner. -
Page 10: Parts Breakdown
• Allow the barbecue to cool down for at least 30 minutes before moving or packing away. Surface temperatures can get very hot. Use oven mitts to open and close the lid and don’t touch any part of the BBQ with your skin. •... -
Page 11: Illustrated Parts
ILLUSTRATED PARTS Make ROVIN Model Name ROVIN BBQWF Item # TCA590 Gas Type Burner Pressure 2.75 kPa Gas Input Rate 13.5 MJ/h Orifice Size 1.05 mm Importer Menace Marine Pty. Ltd. Certificate No GMK10674... -
Page 12: Troubleshooting
TROUBLE SHOOTING Spider and Insect warning: Spiders and insects can nest in burners and cause the gas flow to be irregular. This can be very dangerous and could cause an unexpected fire hazard to occur. You should inspect the burners at least once a year or immediately after any of the following situations: •...
