Summary of Contents for Costway HW67841

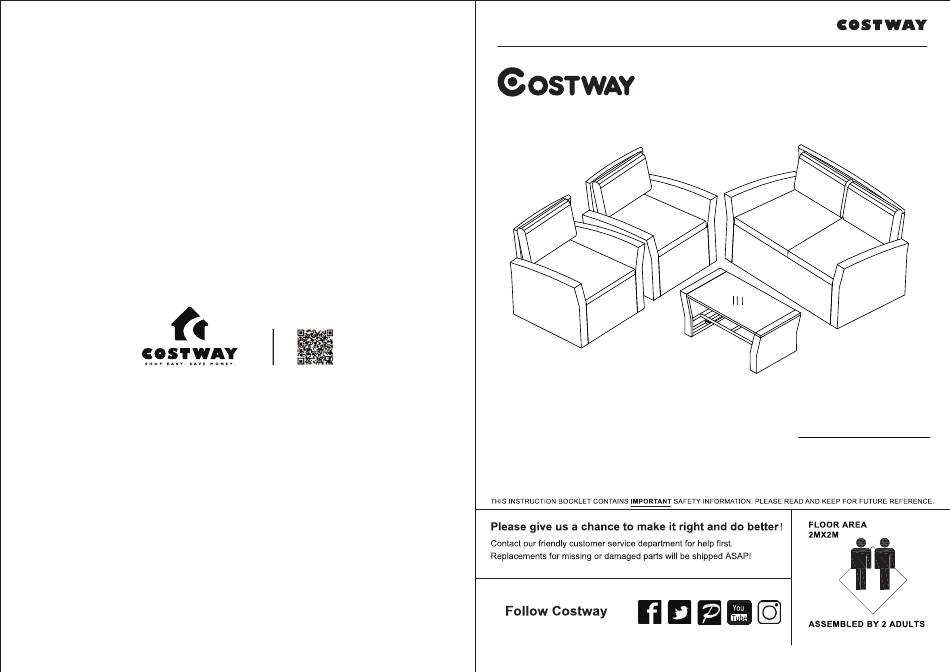

- Page 1 USER’S MANUAL WICKER SOFA SET 4PCS HW67841...
- Page 3 Part List Bolt and Accessories Hardware Spec Description 2 pcs 2 pcs M6 x 80 mm Bolt 6 pcs M6 x 60 mm 12 pcs 2 pcs 1 pc Bolt M6 x 45 mm 6 pcs Bolt 1 pc 1 pc M6 x 35 mm 28 pcs Bolt...
- Page 4 STEP 1 STEP 3 100% 100% STEP 2 STEP 4 100% 100%...
- Page 5 STEP 5 STEP 7 100% 100% 100% 100%...
- Page 6 STEP 9 STEP 11 100% 100% STEP 10 STEP 12 100%...
- Page 7 Care and Maintenance Welcome to visit our website and purchase our quality products! With your inspiring rating, COSTWAY will be more consistent to offer you EASY SHOPPING EXPERIENCE, GOOD PRODUCTS and EFFICIENT SERVICE! Use a soft, clean cloth that will not scratch the surface when dusting.
Need help?
Do you have a question about the HW67841 and is the answer not in the manual?
Questions and answers
Hello I purchased this product last fall and I just brought it home from storage . I am at a loss as only the g and h peices are labelled and I am not sure if we are missing a box . Please advise
To assemble the Costway HW67841, follow these steps:
1. Preparation:
- Work in a spacious area, preferably on a carpet.
- Read each step carefully before starting.
- Check that all parts and hardware are present. Most parts are labeled or stamped on the edges.
2. Tools:
- Use the included Allen key (O) and wrench (K).
- Avoid using an electric drill; hand tools are recommended.
3. Assembly Steps:
- Follow Steps 01 through 12 in order, as shown in the manual.
- Use the labeled hardware and parts according to the step numbers.
- Do not fully tighten screws until the unit is fully assembled. Tighten all at the end.
4. Identifying Pieces:
- Hardware List includes:
- Bolts: A (M6x80mm), B (M6x60mm), C (M6x45mm), D (M6x35mm), E (M6x30mm)
- Washers: F (M6), G (3 pcs)
- Nuts: H (3 pcs)
- Tools: I (1 pc), K (Wrench), L (2 pcs), M (4 pcs), N (4 pcs), O (Allen Key)
- Match each part with its label and quantity before starting.
5. Maintenance Advice:
- Use a soft cloth to clean.
- Do not use water or solvents.
- Check and tighten screws periodically.
Following these steps and identifying labeled parts ensures proper assembly of the Costway HW67841.
