THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY INFORMATION. PLEASE READ AND KEEP FOR FUTURE REFERENCE.
Please give us a chance to make it right and do better！
Contact our friendly customer service department for help first.
Replacements for missing or damaged parts will be shipped ASAP!
Follow Costway
Visit us: www.costway.com
www.costway.com
USER'S MANUAL
4 Pcs Wicker Sofa Set
FLOOR AREA
2MX2M
ASSEMBLED BY 2 ADULTS
HW64403

Advertisement

loading
Need help?

Need help?

Do you have a question about the Patiojoy HW64403 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Costway Patiojoy HW64403

Summary of Contents for Costway Patiojoy HW64403

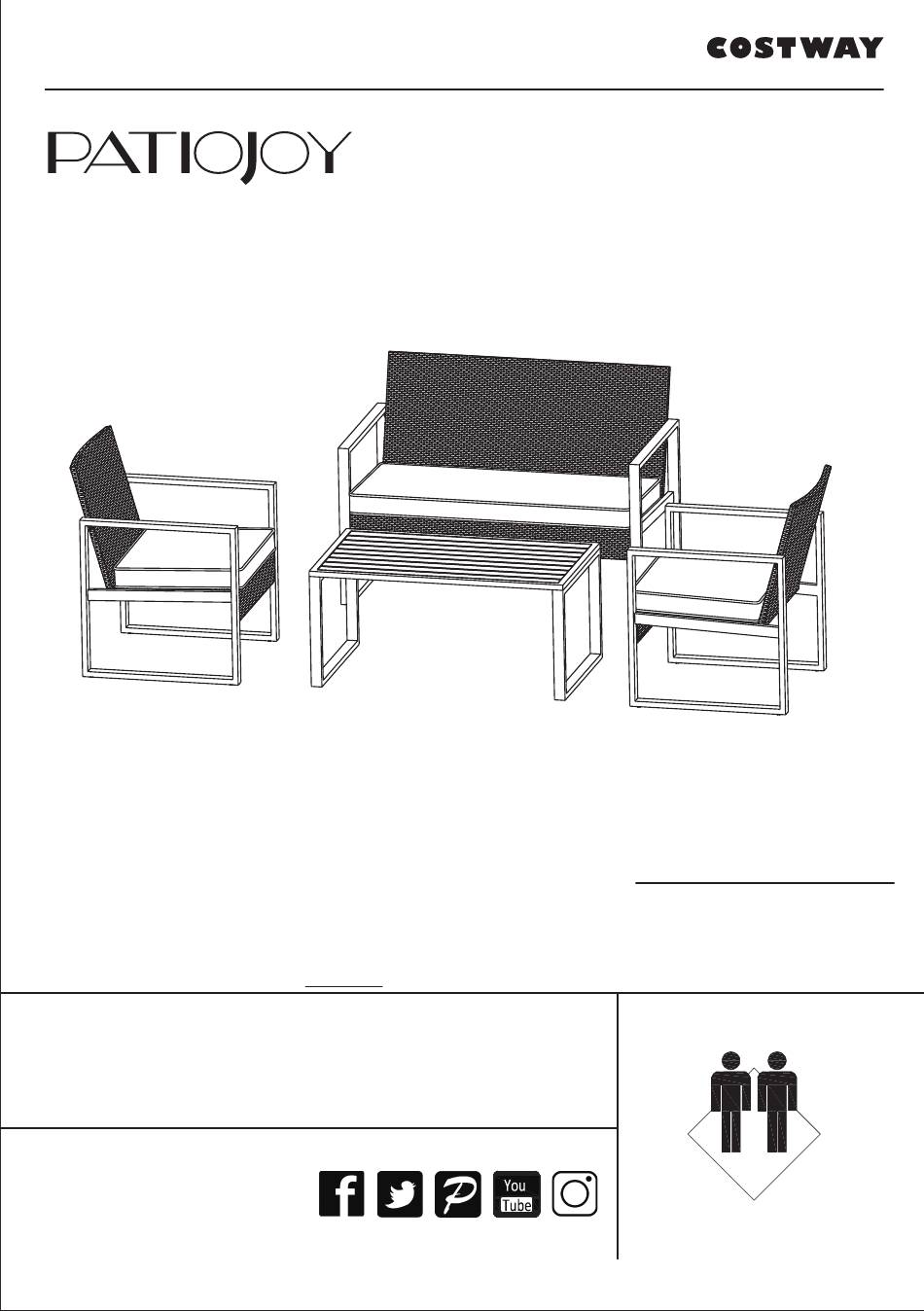

  • Page 1 Please give us a chance to make it right and do better！ FLOOR AREA 2MX2M Contact our friendly customer service department for help first. Replacements for missing or damaged parts will be shipped ASAP! Follow Costway Visit us: www.costway.com ASSEMBLED BY 2 ADULTS...

  • Page 2: Before You Start

    Contact Us! Do NOT return this item. Contact our friendly customer service department for help first. E-mail US: cs.us@costway.com UK: cs.uk@costway.com Before You Start Read each step carefully before starting. It is very important to ensure each step followed in correct order, otherwise assembly difficulties may occur.
  • Page 3 Not actual size Left Arm x 2 Right Arm x 2 Back x 2 Seat x 2 Cushion x 2...
  • Page 4 Not actual size...

  • Page 5: Hardware List

    Hardware List Actual size M6 x 15mm M6 x 25mm BOLT BOLT M6 x 35mm BOLT WASHER 4 x 4 ADJUSTABLE ALLEN WRENCH LEVELLERS...
  • Page 6 STEP 1 Insert adjustable levellers (O) to bottom of each Arm(A) by turning clockwise until secure. Adjust height as desired. Repeat step for the other side arm(B).
  • Page 7 STEP 2 Attach the seat(D) to the arm (B) by inserting bolts (K & J) with washers (M) through the pre-drilled holes on the seat into the pre-welded nuts on the arm. Repeat step for the other side arm(A).
  • Page 8 STEP 3 Attached the back(C) to the seat (D) by inserting bolts (K) with washers (M). STEP 4 Attached the back(C) to the arm (A&B) by inserting bolts (I) with washers (M).
  • Page 9 STEP 5 Tighten all the bolts with the allen wrench, and turn the chair to the upright position. place the seat cushions(P) onto the chair seat. Your chair is now ready for use.

  • Page 10: Maximum Loads

    Maximum Loads 250 lbs This item is only suitable within the specified maximum load-bearing. Heavier loads than the indicated load capacity may cause instability, resulting in possible injuries.
  • Page 11 Not actual size Left Arm x 1 Right Arm x 1 Back x 1 Seat x 1 Cushion x 1...
  • Page 12 Not actual size...
  • Page 13 Hardware List Actual size M6 x 15mm M6 x 25mm BOLT BOLT M6 x 35mm BOLT WASHER 4 x 4 ADJUSTABLE ALLEN WRENCH LEVELLERS...
  • Page 14 STEP 1 Insert adjustable levellers (O) to bottom of each Arm(A) by turning clockwise until secure. Adjust height as desired. Repeat step for the other side arm(B).
  • Page 15 STEP 2 Attach the seat(F) to the arm (B) by inserting bolts (K & J) with washers (M) through the pre-drilled holes on the seat into the pre-welded nuts on the arm. Repeat step for the other side arm(A).
  • Page 16 STEP 3 Attached the back(E) to the seat (F) by inserting bolts (K) with washers (M). STEP 4 Attached the back(E) to the arm (A&B) by inserting bolts (I) with washers (M).
  • Page 17 STEP 5 Tighten all the bolts with the allen wrench, and turn the chair to the upright position. place the seat cushions(Q) onto the chair seat. Your chair is now ready for use.
  • Page 18 Maximum Loads 250 lbs 250 lbs This item is only suitable within the specified maximum load-bearing. Heavier loads than the indicated load capacity may cause instability, resulting in possible injuries.
  • Page 19 Not actual size Table Top x 1 Table Leg x 2...
  • Page 20 Not actual size...
  • Page 21 Hardware List Actual size M6 x 15mm M6 x 30mm BOLT BOLT 4 x 4 ALLEN WRENCH WASHER ADJUSTABLE LEVELLERS...
  • Page 22 STEP 1 Insert adjustable levellers (O) to bottom of each Table leg(H) by turning clockwise until secure. Adjust height as desired. Repeat step for the other side Table leg(H).
  • Page 23 STEP 2 Attached the Table Leg(H) to the Table Top (G) by inserting bolts (L&I) with washers (M).
  • Page 24 STEP 3 Tighten all the bolts with the allen wrench, and turn the table to the upright position. Your coffee table is now ready for use.
  • Page 25 Maximum Loads 50 lbs This item is only suitable within the specified maximum load-bearing. Heavier loads than the indicated load capacity may cause instability, resulting in possible injuries.

  • Page 26: Care And Maintenance

    Care and Maintenance Use a soft, clean cloth that will not scratch the surface when dusting. Use of furniture polish is not necessary. Should you choose to use polish, test first in an inconspicuous area. Using solvents of any kind on your furniture may damage the finish.
  • Page 27 February 24, 2019 Great products so far. Fast delivery, easy setup, and working without any issues. With your inspiring rating, COSTWAY will be more consistent to offer you EASY SHOPPING EXPERIENCE, GOOD PRODUCTS and EFFICIENT SERVICE! US office: Fontana, California...
