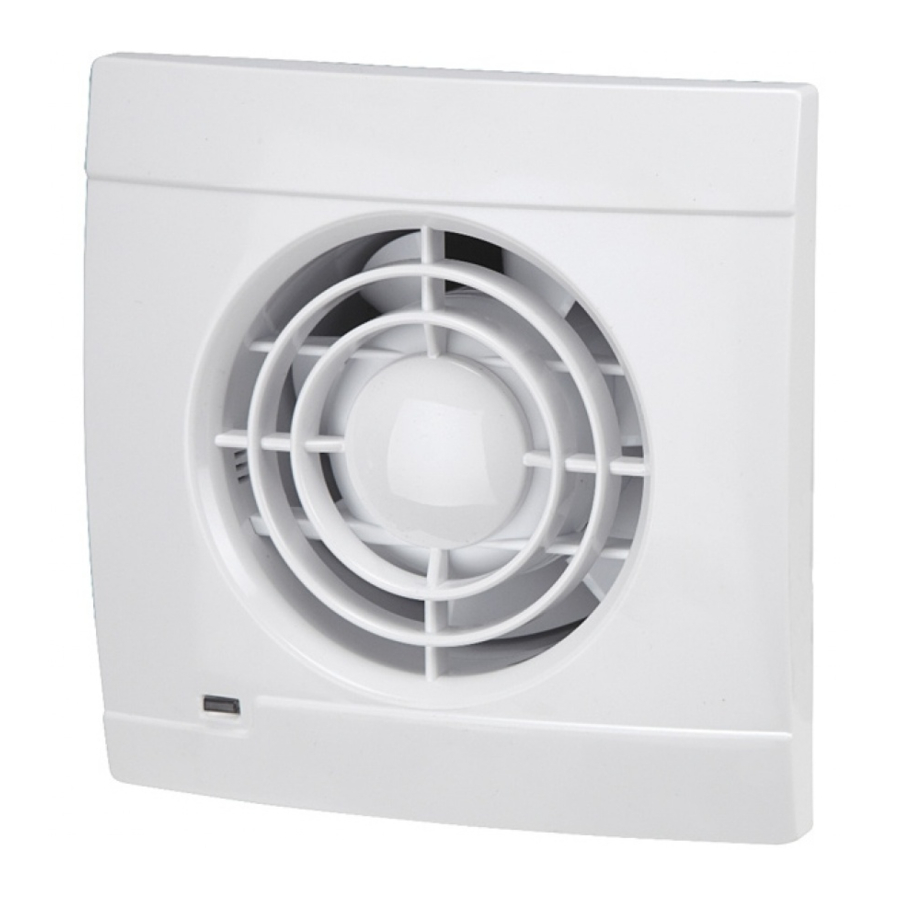

ELPLAST AERO 100, Vulkan 100 - Fan User Manual

Technical data

	Aero	Vulkan
Voltage	230 V	230 V
Frequency	50 Hz	50 Hz
Power	19 W	19 W
Air flow	100 m3/h	120 m3/h
Insulation class	II	II
Protection	IP-X4	IP-X4

APPLICATION

The exhaust duct fans are ideal for bathrooms and toilet applications. They are used for supporting natural ventilation and can be installed the areas with their own ventilation duct lines with the exception of areas prone to corrosion and explosion.

The equipment is not intended for use by persons (including children) with reduced physical, sensory or mental ability.
The equipment is not designed to be fun for children

INSTALLATION AND USAGE

Please take off the front cover (1/Fig.1) using a small cross screw driver (Screw—5/Fig.1).
The fan should be fitted instead of the ventilation grill or in the place prepared exactly for his kind of fans. For installation please use the holes situated in a fan body.
The fans with a pull switch and cable with a plug should be plugged into the electric socket ~220-230V. In order to use the fan please pull the cord to switch it on and off.
The fans in basic version (B) with terminal block only or with the electronic control systems (T, HT) should be connected with the wiring system directly (Electric schema of fan installation below). Please note that all wiring must comply with current I.E.E. Wiring Regulations, if in any doubt consult a qualified electrician.
The fan with a pull switcher (4/Fig.1) enables temporary starting and stopping of the fan by pulling the cord coming out of the fan.
The fixed cover should evenly adhere to the wall panel to avoid distortion
Every precaution should be taken to avoid reverse gas flow to the open ventilation trunk or other open fire areas.

For the fans with the permanent electrical connection, the electrical installation must have a switch with the distance between the contacts of all poles of not less than 3 mm.

The (T) and (HT) fan versions have an embedded timer, which needs to be set with an adjustable knob (T/Fig.2). The range of the delay is 0,5-30 min. The activation is done by the switch or in the (HT) fan version automatically when a certain humidity level is reached.
When the LED light is pulsing the fan works in a timer mode.
INSTALLATION AND USAGE - Using the adjustable knob

The fan with a humidity sensor (HT) requires the setting of the room humidity level. It is done by turning the adjustable knob (% rh/Fig.2) to the extreme (-) position. The fan starts working and the LED light sends continuous light. If the knob is turned very slowly to the (+) position, the LED light begins pulsing. It is the indication the required humidity level is reached.
The adjustments should be made in the dry room before bathing or other water operations.

EU / GUARANTEE CONDITIONS

The producer grants a guarantee for a failure-free operation of the fan.
The guarantee period is 24 months from the sale date.
This Guarantee Certificate is valid only with a receipt confirming the date of purchase.
Claims under this guarantee should be made through the authorized dealer.
The costs between of carriage to the dealer shall be borne by the purchaser.
The producer shall not be liable for mechanical damage or when the purchaser makes any construction changes in the product.

Information for Users on Disposal of Old Equipment

This symbol indicates that the electrical and electronic equipment should not be disposed of as general household waste at its end-of-life. Instead, the products should be handed over to the appliance collection points for the recycling of electrical and electronic equipment., recovery and recycling in accordance with your national legislation and the Directive 2002/96/EC and 2006/66/ EC.
