Linear LB60Z-1 - Radio Frequency Controlled LED Light Bulb Quick Start Manual

NOTE: This unit must be "included in the Network" only where it will be permanently installed. The proper operation of this node in the mesh network is dependent on it knowing its location with respect to other nodes. You cannot "test bench" configure this bulb, then install.

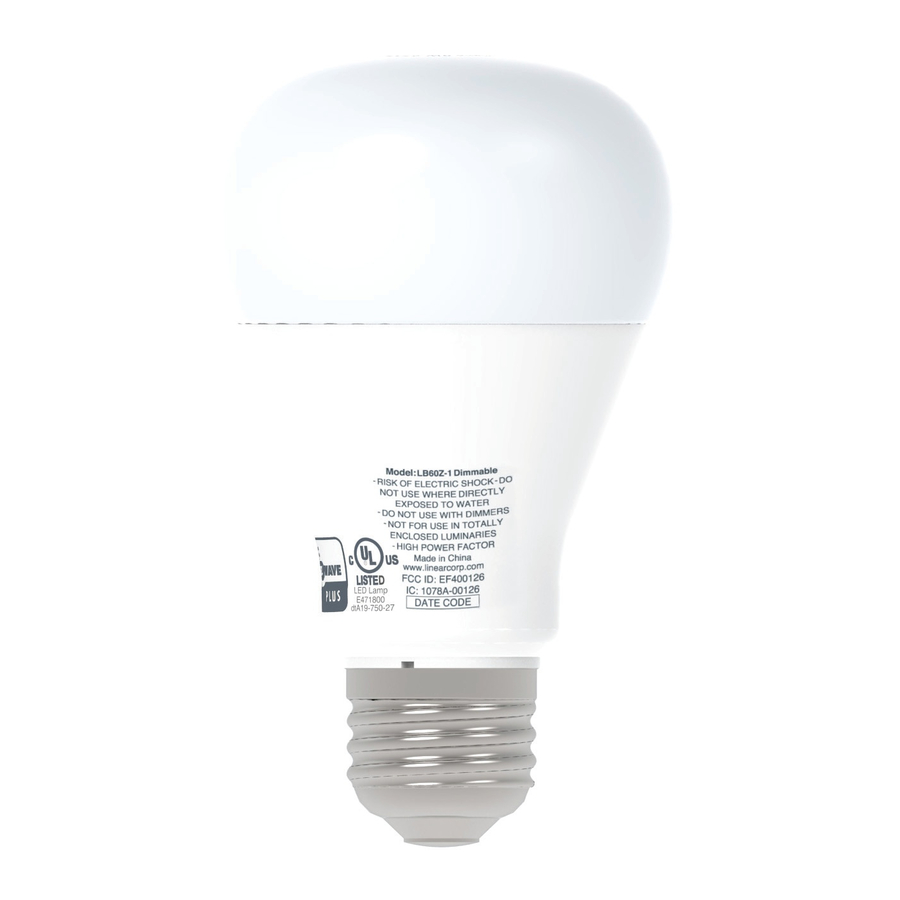

LB60Z-1 SMART LED LIGHT BULB

Linear's family of LinearLinc^® Z-Wave^® certified wireless lighting products (smart LED bulbs, switches, dimmers, outlets, and plug-in modules) and security devices (alert sounder, passive infrared sensor and door/window transmitter) bring a new level of intelligent wireless capability to commercial and residential environments.

The Z-Wave wireless protocol is an international wireless standard for remote home automation, security and other applications. Embedded in each device, the Z-Wave smart chip enables two-way RF communication among hundreds of Z-Wave enabled devices, allowing products and services from multiple manufacturers to work seamlessly.

The LB60Z-1 Smart LED Light Bulb is simple to set up and provides longer life and more energy efficiency than incandescent or florescent light bulbs. The bulb is instant on, without the warm-up delay common in CFL bulbs.

LinearLinc Z-Wave products are easy to install, and allow dealers to create an integrated wireless network with nearly limitless expansion and interoperability with security, energy management, home entertainment, appliances, and more.

As part of a Z-Wave network, the LB60Z-1 will also act as a wireless repeater to insure that commands intended for another device in the network are received. This is useful when the device would otherwise be out of the radio range of the wireless controller.

For indoor use only. Retain instructions for future use.

Z-Wave^® is a registered trademark of Sigma Designs

INSTALLATION

1. At the selected location, turn the power to the light bulb socket OFF.
2. Screw the Smart LED Light Bulb into the lamp socket.

For "Inclusion" to (adding to) a network

Refer to your Controller operating instructions to add this bulb under the command of the Wireless Controller.

1. With your controller in Inclusion Mode, turn the power to the light bulb socket ON.
2. You should see an indication on your Controller that the "device was included" in the network. The Smart LED Light Bulb will fl ash twice.
3. The device will appear in the list of Switches. It should display multi-level switch / Linear.

If the Controller/Gateway shows the inclusion failed, repeat Steps 1-3.

✓ NOTE: If you have trouble adding the LB60Z-1 to a group it may be that the Home ID and Node ID were not cleared from it after testing. You must first "RESET UNIT" to remove it from the network. Although adding it to a group includes it in the network, removing it from a group does not remove it from the network. If removed from a group, it functions as a repeater (only). "RESET UNIT" removes it completely from the network.

To Reset Unit (If Required)

To reset the bulb and clear all network information, follow these steps:

1. Use the wall switch to turn the power to the bulb ON then OFF four times within four seconds.
2. The Smart LED Light Bulb will fl ash twice when the reset occurs.

Before repeating the steps above, try moving the Smart LED Light Bulb to a socket in the same room as the Controller/Gateway in case the preferred socket is out of range initially.

Repeat Steps 1-3 above until the Smart LED Light Bulb is added to the network. Once the bulb has been successfully added to the network, move it to the preferred location.

For "Exclusion" from (removing from) a network

The Smart LED Light Bulb can be excluded from the network by the Controller/ Gateway. Refer to the Controller operating instructions for details.

1. Set the Controller into "exclusion" mode, and following its instruction to delete the LB60Z-1 from the Controller.
2. Reset the bulb by using the wall switch to turn the power to the bulb ON. The Smart LED Light Bulb will flash twice to confirm the exclusion.

BASIC OPERATION

Remote Control Operation

The Smart LED Light Bulb can be controlled ON / OFF/ BRIGHT / DIM through wireless signals from the Z-Wave remote controller or through a gateway via an application on a smart phone, tablet, or PC.

Once the Smart LED Light Bulb has been added to the network, depending on the functions supported by your controller, it can be assigned to a Group or Scene and operate when the ALL ON or ALL OFF command is received from the Controller. It can also be set in Association with another Z-Wave device to perform a specific duty.

Manual Operation

The Smart LED Light Bulb can be manually operated using the wall switch while keeping it on-line with the Z-Wave network.

To manually turn the Smart LED Light Bulb ON:
Flip the wall switch OFF then ON. Be sure the switch is ON when finished.

To manually turn the Smart LED Light Bulb OFF:
Flip the wall switch OFF then ON twice within two seconds. Be sure the switch is ON when finished.

CONFIGURATION

The LB60Z-1 supports the Configuration command. The LB60Z-1 can be configured to operate slightly differently than how it works when you first install it. Using the Configuration command you can configure the following:

Parameter 1: Dim Level Memory

By default, the LB60Z-1 bulb will go to full brightness when turned on. To have the bulb turn on to the last dim level setting, set parameter 1 to 1.

• Parameter No: 1
• Length: 1 Byte
• Valid Values = 0 (default) or 1.
• When the value = 0, the bulb will be full brightness when turned on.
• When the value = 1, the bulb will turn on to the last dim level setting.

Z-Wave Plus Features

The LB60Z-1 contains a Z-Wave 500 Series Module that supports Z-Wave Plus features. A Z-Wave certified portable or stationary controller can communicate with the Z-Wave 500 Series Module.

Depending on the capability of the controller or gateway software, the following operations can be performed with the Smart LED Light Bulb. Refer to the controller or gateway manual for details.

• Turn the bulb ON and OFF.
• Dim the bulb.
• Add (Include) or Delete (Exclude) the Smart LED Light Bulb.
• Assign the Smart LED Light Bulb to a specific Group/Scene and/or to include the bulb as part of ALL ON or ALL OFF system commands.
• Over-the-air firmware update by the gateway or static controller.
• Lifeline function which automatically notifies the associated modules and the network that a manually reset device is no longer in the network, thus, the corresponding association becomes invalid.

INTEROPERABILITY WITH Z-WAVE DEVICES

A Z-Wave network can integrate devices of various classes of products, and these devices can be made by different manufacturers. The LinearLinc Smart LED Light Bulb has Z-Wave certification which guarantees interoperability.

ASSOCIATION

The LB60Z-1 supports one Group with fi ve Nodes for lifeline communication. Group 1 must be assigned the Node ID of the controller to which unsolicited notifications from the LB60Z-1 will be sent. The Z-Wave controller should set this association automatically after inclusion. You can associate up to five Z-Wave devices to Group 1. Lifeline association only supports the "manual reset" event.

For instructions on how to "set lifeline association" please refer to your wireless controller instructions.
