Linear LB60Z-1 Quick Start Manual

NOTE: This unit must be "included in the Network" only where it will be permanently installed. The proper operation of this node in the mesh
network is dependent on it knowing its location with respect to other nodes. You cannot "test bench" confi gure this bulb, then install.

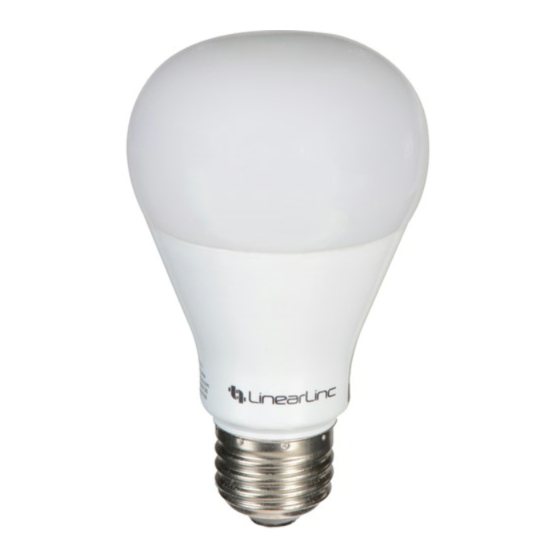

LB60Z-1 SMART LED LIGHT BULB
®
Linear's family of LinearLinc
(smart LED bulbs, switches, dimmers, outlets, and plug-in modules) and
security devices (alert sounder, passive infrared sensor and door/window
transmitter) bring a new level of intelligent wireless capability to commercial
and residential environments.
The Z-Wave wireless protocol is an international wireless standard for remote
home automation, security and other applications. Embedded in each device,
the Z-Wave smart chip enables two-way RF communication among hundreds
of Z-Wave enabled devices, allowing products and services from multiple
manufacturers to work seamlessly.
The LB60Z-1 Smart LED Light Bulb is simple to set up and provides longer
life and more energy effi ciency than incandescent or fl orescent light bulbs. The
bulb is instant on, without the warm-up delay common in CFL bulbs.
LinearLinc Z-Wave products are easy to install, and allow dealers to create an
integrated wireless network with nearly limitless expansion and interoperability
with security, energy management, home entertainment, appliances, and more.
As part of a Z-Wave network, the LB60Z-1 will also act as a wireless repeater to
insure that commands intended for another device in the network are received.
This is useful when the device would otherwise be out of the radio range of the
wireless controller.
For indoor use only. Retain instructions for future use.
®
Z-Wave is a registered trademark of Sigma Designs
®
Z-Wave certifi ed wireless lighting products
INSTALLATION
1. At the selected location, turn the power to the light bulb socket OFF.
2. Screw the Smart LED Light Bulb into the lamp socket.
For "Inclusion" to (adding to) a network:
Refer to your Controller operating instructions to add this bulb under the
command of the Wireless Controller.
1. With your controller in Inclusion Mode, turn the power to the light bulb
socket ON.
2. You should see an indication on your Controller that the "device was
included" in the network. The Smart LED Light Bulb will fl ash twice.
3. The device will appear in the list of Switches. It should display multi-level
switch / Linear.
If the Controller/Gateway shows the inclusion failed, repeat Steps 1-3.
✓ NOTE: If you have trouble adding the LB60Z-1 to a group it may be that the Home
ID and Node ID were not cleared from it after testing. You must fi rst "RESET UNIT" to
remove it from the network. Although adding it to a group includes it in the network,
removing it from a group does not remove it from the network. If removed from a
group, it functions as a repeater (only). "RESET UNIT" removes it completely from
the network.
To Reset Unit (If Required)
To reset the bulb and clear all network information, follow these steps:
1. Use the wall switch to turn the power to the bulb ON then OFF four times
within four seconds.
2. The Smart LED Light Bulb will fl ash twice when the reset occurs.
Before repeating the steps above, try moving the Smart LED Light Bulb to
a socket in the same room as the Controller/Gateway in case the preferred
socket is out of range initially.
Repeat Steps 1-3 above until the Smart LED Light Bulb is added to the
network. Once the bulb has been successfully added to the network, move it
to the preferred location.
For "Exclusion" from (removing from) a network:
The Smart LED Light Bulb can be excluded from the network by the Controller/
Gateway. Refer to the Controller operating instructions for details.
1. Set the Controller into "exclusion" mode, and following its instruction to
delete the LB60Z-1 from the Controller.
2. Reset the bulb by using the wall switch to turn the power to the bulb ON. The
Smart LED Light Bulb will fl ash twice to confi rm the exclusion.
1
LB60Z-1
Radio Frequency Controlled
Smart LED Light Bulb
750 Lumens
Equivalent
to a 60 Watt
incandescent
light bulb
