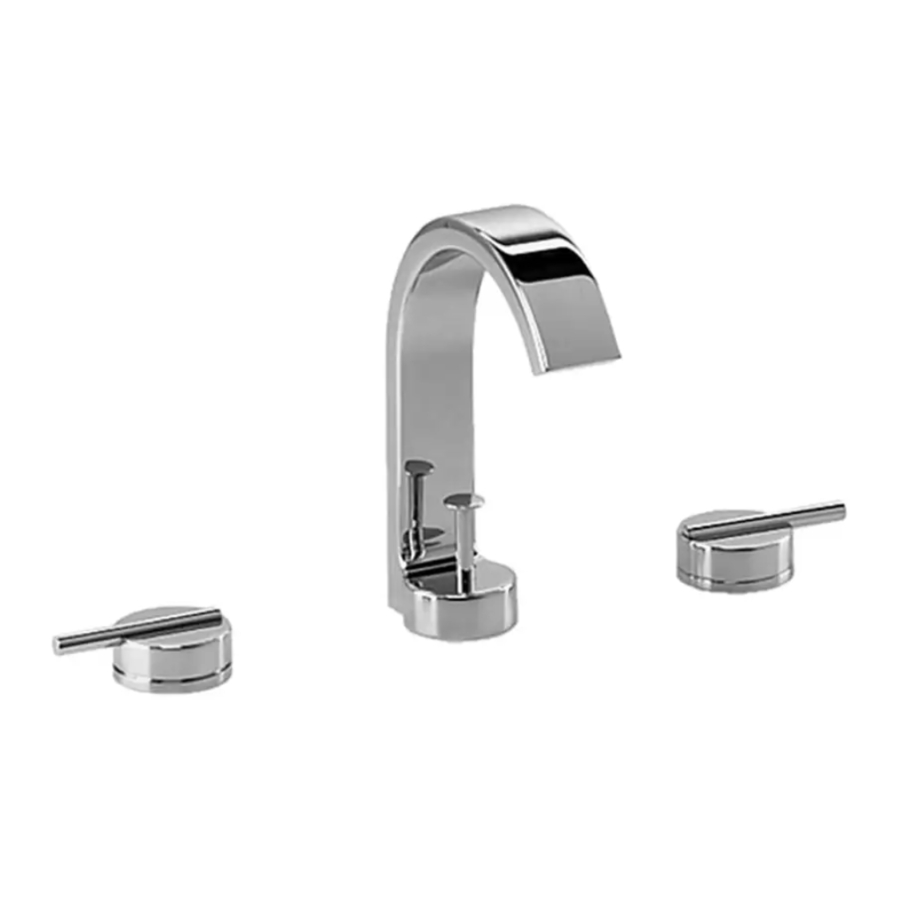

JADO Glance 831/003 - Widespread Lavatory Faucet Installation Manual

To ensure that your installation proceeds smoothly--please read these instructions carefully before you begin.

TOOLS REQUIRED

ROUGHING-IN DIMENSIONS

NOTE: MOUNTING HOLES ARE 1-1/4" D.

SPOUT ASSEMBLY

Turn off hot and cold water supplies before beginning.

• Insert POP-UP ROD (9) into bottom of faucet and thread into POP-UP KNOB (10).
• Insert SPOUT SHANK (1) through center hole of sink or mounting surface. Make sure RUBBER WASHER (2) is seated into groove in SPOUT ESCUTCHEON BASE (3).
• Assemble RUBBER WASHER (4), FIBER WASHER (5) and LOCKNUT (6) onto threads of SPOUT SHANK (1) from underside of lavatory or mounting surface.
• Align SPOUT (7) and tighten LOCKNUT (6). Insert LIFT ROD (8) through SPOUT (7).

TEE AND HOSE ASSEMBLY

• Push the TEE (1) onto SPOUT SHANK (2) until it makes full contact with the 0-RING (3)
• Rotate TEE (2) about 10 degrees from center. Insert HEX COUPLING NUT (4) into TEE (2) and tighten on end of spout shank to make a water tight connection. Do not over tighten.

INSTALL VALVE BODIES

• Unpack valve assembly and remove HANDLE (10) by unthreading SET SCREW (12). Unthread ROSETTE (9) and FLANGE (8) removing them from VALVE BODY (2).
• Thread LOCKNUT (1) to bottom of VALVE BODY (2). Make sure SPACER (3), BRASS WASHER (4) and RUBBER WASHER (5) are installed.
• Insert VALVE BODY (2) through mounting hole from underside of tub deck or mounting surface.
  Note: VALVE BODY marked Hot is installed in the left Mtg. hole, VALVE BODY marked Cold in the right when facing front of fitting. Maximum mounting surface thickness is 1-3/4".
• Install STOP RING (6) onto VALVE BODY (2) if not in place. Install O-RING (7) into groove in FLANGE (8).
• Thread FLANGE (8) flush against STOP RING (6). Thread ROSETTE (9) onto VALVE BODY (2) until tight against it's internal stop.
• Align VALVE BODY (2) and from below tighten LOCKNUT (1) to secure VALVE BODY (2).

INSTALL HANDLES

• Turn VALVES to off position. Align HANDLES (10) as shown or as desired and install onto HANDLE ADAPTER (11). Tighten SET SCREW (12) with HEX WRENCH (13) supplied. Push PLUG BUTTON (14) into place.

HOSE CONNECTIONS

• Insert FIBER WASHERS (15) into COUPLING NUTS (16) of SUPPLY HOSES (17) and tighten making water tight connection.

  Loop SUPPLY HOSES (17) as illustrated so they do not kink.

INSTALL POP-UP DRAIN

• A FOAM SEAL (1) is installed on underside of FLANGE (2). (Plumbers Putty may be used in place of FOAM SEAL (1) if desired.)
• Drop FLANGE (2) into LAVATORY DRAIN (3). From below assemble RUBBER GASKET (4), PLASTIC WASHER (5) and LOCK NUT (6) onto DRAIN FLANGE (2). Do not tighten fully.

• Inspect inside DRAIN BODY (7) that SEAL (8) is installed. Thread DRAIN BODY (7) tight against FLANGE (2) to make a water tight seal.
• The PIVOT ROD OPENING (9) in DRAIN BODY (7) should face the rear APPLY SEALANT of the lavatory. Tighten LOCK NUT (6) on FLANGE (2) to make a water OR TEFLON TAPE tight connection with channel locks. Do not over tighten.
• Apply sealant or Teflon tape to threads of TAILPIECE (10) and thread into DRAIN BODY (7) making a water tight seal.

• Assemble PIVOT ROD (11), and PIVOT NUT (12) as shown. Install CONCAVE WASHER (19) into PIVOT ROD OPENING (9) if not preinstalled. Hand tighten PIVOT NUT (12). Drop STOPPER (13) into drain.
  To vandal proof drain rotate STOPPER (13) so PIVOT ROD (11) goes through EYE (14) of STOPPER (13). Make connection to "P" TRAP.
• Assemble POP-UP SWIVEL (15) to PIVOT ROD (11) but do not tighten. Drop POP-UP ROD (16) through other hole in POP-UP SWIVEL (15) and tighten SET SCREW (17)
• Adjust STOPPER (13) height by repositioning POP-UP ROD (16) in SWIVEL (15) and tightening SET SCREW (18).

WATER SUPPLY CONNECTIONS

NOTE: FLEXIBLE SUPPLIES OR BULL-NOSE RISERS MUST BE PURCHASED SEPARATELY.

• Connect water supply to VALVE BODIES (1) with 1/2" IPS FLEXIBLE SUPPLIES (3) or 3/8" O.D. BULL-NOSE RISERS (4). Use wrench to tighten connections.
• Do not over tighten. Be careful not to kink copper supply when bending. Use tubing cutter to cut to proper length.

TEST INSTALLED FAUCET AND CONNECTIONS FOR LEAKS

• Remove AERATOR (3) from faucet.
• With HANDLES (1) in OFF position, turn on WATER SUPPLIES (2) and check all connections for leaks.
  Operate both HANDLES to flush water lines thoroughly.
• Operate Lift Rod (5) and fill lavatory with water. Check that DRAIN STOPPER (4) makes a good seal and retains water in lavatory. Adjust stopper height by repositioning Lift Rod (5) and tightening SET SCREW (6).
• Release DRAIN STOPPER (4) and check all drain connections and "P" trap for leaks. Tighten if necessary.
• Replace AERATOR (3).

HELPFUL HINTS FOR CLEANING AND MAINTENANCE

The solid brass product you have just purchased has been designed to give you years of beauty and service. It is important to bring to your attention proper care and maintenance procedures, which will ensure its lasting beauty.

• First and foremost, it is important (as it is with any fine piece of jewelry or furniture) that the product be wiped clean and dry with a soft damp cloth after every use.
• Second, under no circumstances should an abrasive cleaner or combination cleaner/polish be used on JADO products. The abrasive nature of such products will eventually destroy the finish and void the warranty.
• In the event of stubborn blemishes shown on the finish, we recommend use of Windex window cleaner with a soft cloth, but we do not recommend it be used on an everyday basis.
• It is important to note that it is normal to expect signs of usage over time.
