PCB Piezotronics ICP 356B21/ACS-23T Installation And Operating Manual page 15

Model Number
356B21
Performance
Sensitivity(± 10 %)
Measurement Range
Frequency Range(± 5 %)(y or z axis)
Frequency Range(± 5 %)(x axis)
Resonant Frequency
Broadband Resolution(1 to 10,000 Hz)
Non-Linearity
Transverse Sensitivity
Environmental
Overload Limit(Shock)
Temperature Range(Operating)

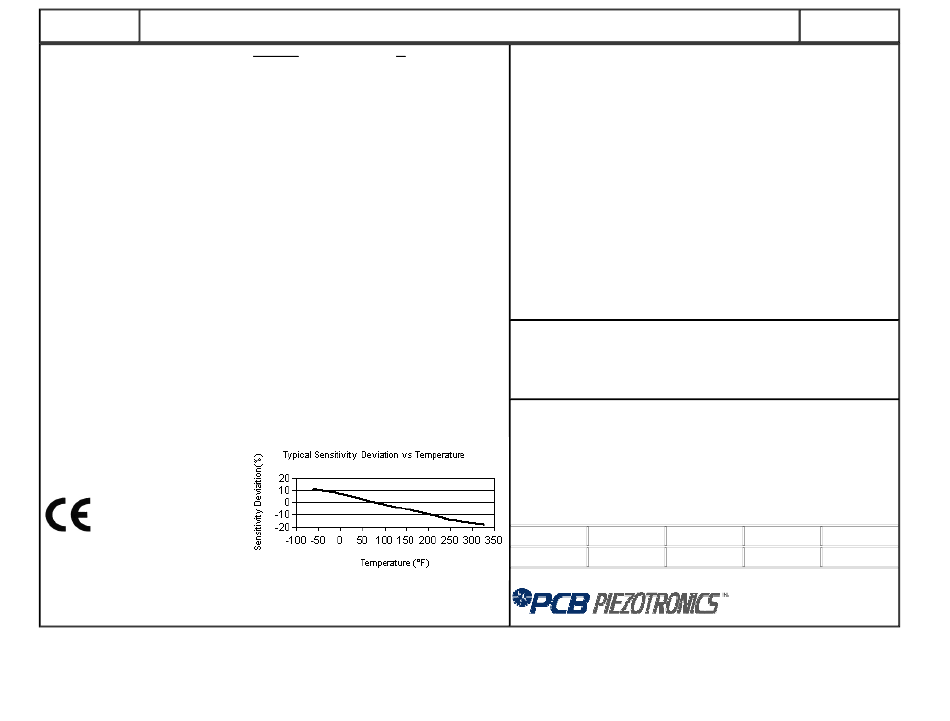

Temperature Response
Electrical
Excitation Voltage
Constant Current Excitation
Output Impedance
Output Bias Voltage
Discharge Time Constant
Settling Time(within 10% of bias)
Spectral Noise(1 Hz)
Spectral Noise(10 Hz)
Spectral Noise(100 Hz)
Spectral Noise(1 kHz)
Physical
Sensing Element
Sensing Geometry
Housing Material
Sealing
Size (Height x Length x Width)
Weight
Electrical Connector
Electrical Connection Position
Mounting Thread
[4]
All specifications are at room temperature unless otherwise specified.
In the interest of constant product improvement, we reserve the right to change specifications without notice.
®
ICP is a registered trademark of PCB Group, Inc.
TRIAXIAL ICP® ACCELEROMETER
ENGLISH SI
10 mV/g 1.02 mV/(m/s²)
± 500 g pk ± 4905 m/s² pk
2 to 10,000 Hz 2 to 10,000 Hz
2 to 7000 Hz 2 to 7000 Hz
≥ 55 kHz ≥ 55 kHz
0.004 g rms 0.04 m/s² rms
≤ 1 % ≤ 1 %
≤ 5 % ≤ 5 %
± 10,000 g pk ± 98,100 m/s² pk
-65 to +250 °F -54 to +121 °C
See Graph See Graph
18 to 30 VDC 18 to 30 VDC
2 to 20 mA 2 to 20 mA
≤ 200 Ohm ≤ 200 Ohm
7 to 12 VDC 7 to 12 VDC
0.3 to 1.0 sec 0.3 to 1.0 sec
<3 sec <3 sec
1000 µg/√Hz
9810 (µm/sec
300 µg/√Hz
2943 (µm/sec
2
100 µg/√Hz
981 (µm/sec
2
50 µg/√Hz
490 (µm/sec
Ceramic Ceramic
Shear Shear
Titanium Titanium
Hermetic Hermetic
0.4 in x 0.4 in x 0.4 in 10.2 mm x 10.2 mm x 10.2 mm
0.14 oz 4 gm
8-36 4-Pin 8-36 4-Pin
Side Side
5-40 Female 5-40 Female
Optional versions have identical specifications and accessories as listed for the standard model
except where noted below. More than one option may be used.
A
- Adhesive Mount
Supplied Accessory : Model 080A109 Petro Wax (1)
Supplied Accessory : Model 080A90 Quick Bonding Gel (1)
[1]
[3]
HT
- High temperature, extends normal operation temperatures
Temperature Range(Operating)
J
- Ground Isolated
[2]
[1][2] Frequency Range(+5 %)
Electrical Isolation(Base)
Size - Height x Length x Width
Weight
Mounting
Supplied Accessory : Model 034K10 Cable 10FT Mini 4 Pin To (3) BNC (1)
Supplied Accessory : Model 080A109 Petro Wax (1)
Supplied Accessory : Model 080A90 Quick Bonding Gel (1)
2
[1]
)/√Hz
2 [1]
)/√Hz
[1]
)/√Hz
[1]
)/√Hz
NOTES:
[1] Typical.
[2] 250° F to 325° F data valid with HT option only.
[3] Zero-based, least-squares, straight line method.
[4] See PCB Declaration of Conformance PS023 for details.
[1]
SUPPLIED ACCESSORIES:
Model 034K10 Cable 10FT Mini 4 Pin To (3) BNC (1)
Model 080A Adhesive Mounting Base (1)
Model 080A109 Petro Wax (1)
Model 081A27 Mounting Stud (5-40 to 5-40) (1)
Model 081A90 Mounting stud, 10-32 to 5-40 (1)
Model ACS-1T NIST traceable triaxial amplitude response, 10 Hz to upper 5% frequency. (1)
Model M081A27 Metric mounting stud, 5-40 to M3 x 0.50 long (1)
Entered: AP Engineer: JJB
Date: 11/8/2013 Date: 11/8/2013
3425 Walden Avenue, Depew, NY 14043
Revision: H
ECN #: 42197
OPTIONAL VERSIONS
-65 to +325 °F -54 to +163 °C
7000 Hz 7000 Hz
8 8
>10 Ohm >10 Ohm
0.44 in x 0.40 in x 0.44 in 11.2 mm x 10.2 mm x 11.2 mm
0.16 oz 4.5 gm
Adhesive Adhesive
Sales: WDC Approved: JJB
Date: 11/8/2013 Date: 11/8/2013
Phone: 716-684-0001
Fax: 716-684-0987
E-Mail: info@pcb.com
Spec Number:
15127
