Velleman BITS5 Quick Start Manual

VTSS5 – TEMPERATURE-CONTROLLED SOLDERING STATION
1. Introduction & Features
Thank you for buying the VTSS5! Thanks to its favourable price-quality ratio, this device is ideal for beginners and
professionals alike. Please read the manual before bringing the device into use.
• The device is equipped with an electronic, temperature-controlled analogue scale from 175 to 480°C.
• The soldering iron is connected to ground.
• Power is switched on or off by the temperature control button. A LED indicator lights up when the device is on.

2. Operating Instructions

• Verify whether the mains voltage is compatible with the operating voltage of the device before plugging it in.
• Make sure that the device was not damaged in transit.
• Use the rotary control on the front panel to switch the device on and set the desired temperature.

3. Common Causes for Tip Failure

1. The tip is not sufficiently tinned.
2. Wiping the tip on a surface with high sulphur content or on a dirty or dry sponge or rag.
3. Contact between the tip and organic or chemical substances such as plastic, silicone, grease, etc.
4. Impurities in the solder and/or solder with a low tin content.

4. Important Remarks

• Remove and clean the tip after heavy or moderate use. We recommend cleaning the tip every day if the device is
used on a daily basis. Clear the tip from excess solder. Never clean the tip with a file or other abrasive materials.
• Always tin the tip before returning it to the holder, prior to deactivating the station or in case of long periods of
inactivity. Clean the tip with a wet sponge or with our tip cleaner (ref. VTSTC) prior to use.
• Do not use temperatures > 400°C for long periods of time as this will shorten the life of your tip.
• Do not press too hard on the tip while soldering: this does not improve the heat transfer and may damage the tip.

5. Tips for New Tips

1. Switch the device on and set a temperature of 250°C.
2. Coat the surface with solder when the temperature of the tip has reached 250°C.
3. Install the desired temperature after allowing the unit to idle at 250°C for 3 minutes.
4. The iron will be ready for use when the preset temperature is reached.

6. Specifications

AC Input
Power Consumption
Temperature Range
Temperature Control
Tolerance
Dimensions
Output

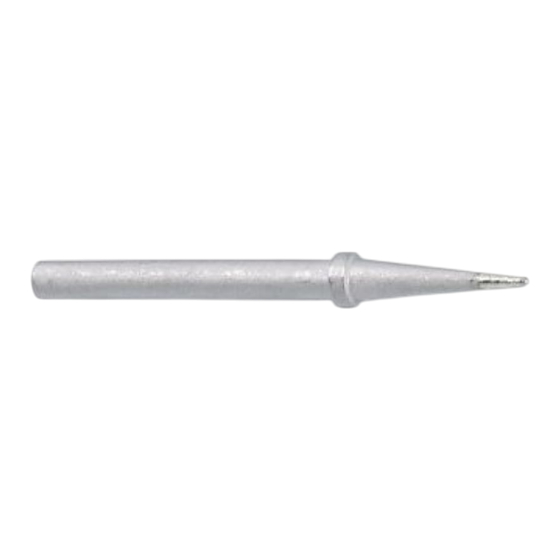

Spare bit
The information in this manual is subject to change without prior notice.
VTSS5
230Vac / 50Hz
50VA max.
175-480°C
electronic
5%
195 x 100 x 90mm
grounded
BITS5
1 VELLEMAN
