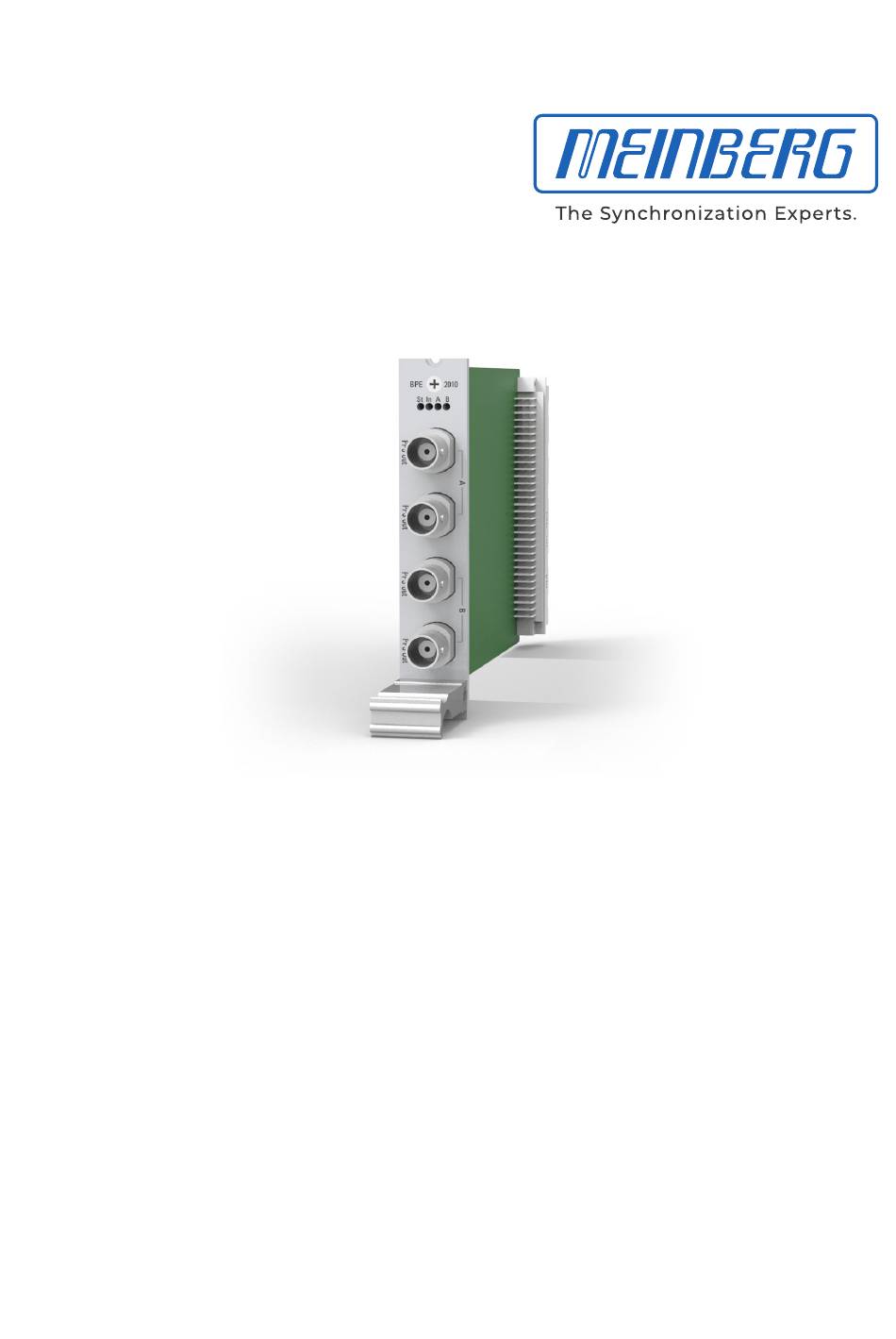

- Page 1 MANUAL BPE-2010 Setup Guide September 27, 2022 Meinberg Funkuhren GmbH & Co. KG...
-
Page 3: Table Of Contents
3 Replacement or Installation of a Hot-pluggable IMS Module Important Information Regarding Hot-Pluggable IMS Modules ....4 BPE-2010 - Backplane Port Expander 5 RoHS and WEEE... -
Page 4: Imprint
1 Imprint 1 Imprint Meinberg Funkuhren GmbH & Co. KG Lange Wand 9, 31812 Bad Pyrmont, Germany Phone: + 49 (0) 52 81 / 93 09 - 0 Fax: + 49 (0) 52 81 / 93 09 - 230 Website: https://www.meinbergglobal.com Email: info@meinberg.de... -
Page 5: Important Safety Information
• Take note of the chapter "Power Supply". 2.1 Product Documentation Detailed product documentation is provided on a USB flash drive delivered with the Meinberg system. The manuals can also be downloaded from the Meinberg website at https://www.meinbergglobal.com, where you can enter your system name into the search box at the top of the page to find the relevant manual. -
Page 6: Prevention Of Esd Damage
ESD-proof bags that are crumpled or have holes cannot provide effective protection against electrostatic discharges. ESD-proof bags must have a sufficient electrical resistance and must not be made of conductive metals if the device has a lithium battery fitted on it. BPE-2010 Date: September 27, 2022... -
Page 7: Power Supply
In the event that a power supply unit is no longer working (e.g. defective), please return it to Meinberg for repair. Failure to observe these safety instructions may result in serious injury and/or property damage. -
Page 8: Replacement Or Installation Of A Hot-Pluggable Ims Module
Make sure that the module is securely locked into the connector block before you fasten the two screws. Now you can put the installed module into operation. Attachment points of an 1U IMS system BPE-2010 Date: September 27, 2022... -
Page 9: Important Information Regarding Hot-Pluggable Ims Modules
Operating System, the configuration of some IMS modules may be reset to factory defaults! Information: The NTP service and access to the web interface will be unavailable while the CPU is not installed. Management and monitoring functions will also be disabled. Date: September 27, 2022 BPE-2010... -
Page 10: Bpe-2010 - Backplane Port Expander
4 BPE-2010 - Backplane Port Expander 4 BPE-2010 - Backplane Port Expander Output Signals: 4 x PPS / TTL Connector: BNC female Pulse width: 200 ms Level: 2.5 V, active high Impedance: Rise/Fall time: 4 ns (+-1 ns) Power Requirements: 5 V +-5%, 150 mA... -
Page 11: Rohs And Weee
WEEE-compliant fashion, it can be returned to the manufacturer. Any transportation ex- penses for returning this product (at end-of-life) must be covered by the end user, while Meinberg will bear the costs for the waste disposal itself. Date: September 27, 2022...
