Summary of Contents for Meinberg BPE-8000 Series

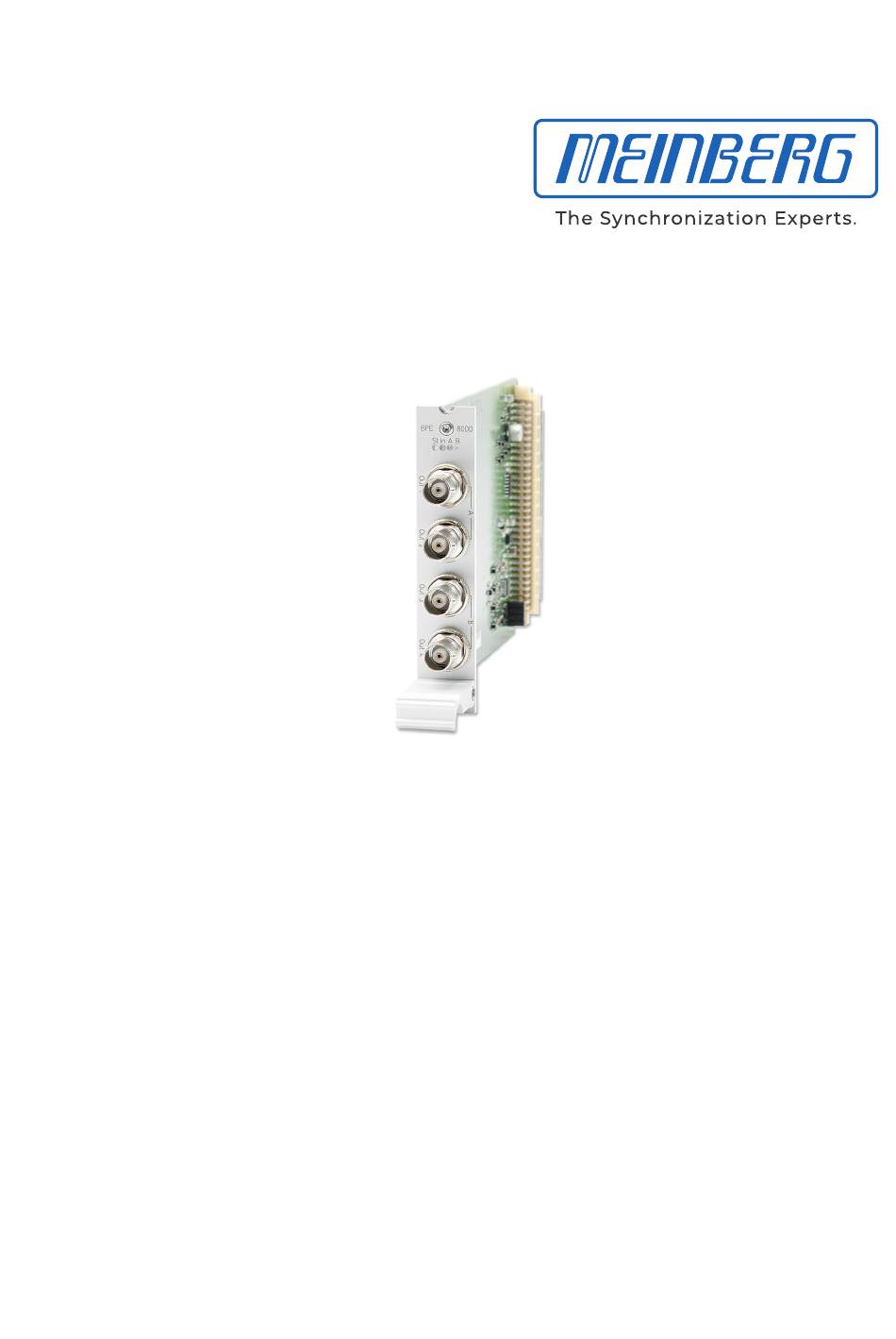

- Page 1 MANUAL BPE-8000 Series Setup Guide 14th August 2019 Meinberg Funkuhren GmbH & Co. KG...
-
Page 3: Table Of Contents
4 BPE-8000 - Switchable Backplane Port Expander Configuring an BPE-8000 expansion card via the Web Interface ....Date: 14th August 2019 BPE-8000 Series... -
Page 4: Imprint
1 Imprint 1 Imprint Meinberg Funkuhren GmbH & Co. KG Lange Wand 9, 31812 Bad Pyrmont / Germany Phone: + 49 (0) 52 81 / 93 09 - 0 Fax: + 49 (0) 52 81 / 93 09 - 230 Internet: https://www.meinbergglobal.com... -
Page 5: Safety Instructions For Hot Pluggable Modules
• Place the module out of the box or after removal from the system with the component side to the top on a grounded and static-free surface. • Storage of an IMS module must be done in a dry place. • Installation or removal from hot-swap components only by authorized personnel! Date: 14th August 2019 BPE-8000 Series... -
Page 6: Additional Safety Hints
To ensure safe operation supply mains connected to this decice must be equipped with a fuse and a fault- current circuit breaker according to the applicable national standards for safe operation. The device must be connected to a protective earth with low grounding resistance according to the applicable national rules. BPE-8000 Series Date: 14th August 2019... -
Page 7: Cabling
Wiring or any other work done the connectors particularly when connectors are opened may never be carried out when the installation is energized. All connectors must be covered to prevent from accidental contact to life parts. ALWAYS ENSURE A PROPER INSTALLATION! Date: 14th August 2019 BPE-8000 Series... -
Page 8: Replacement Or Installation Of A Hot-Pluggable Ims Module
Make sure that the module is securely locked into the connector block before you fasten the two screws. Now you can put the installed module into operation. Attachment points of an 1U IMS system BPE-8000 Series Date: 14th August 2019... -
Page 9: Important Hints For Hot-Pluggable Ims Modules
The central management unit is not "hot swappable", i.e. the system must be disconnected from mains before replacement. RSC/SPT The RSC switching card is not "hot swappable", i.e. the system must be disconnected from the mains before replacement. Date: 14th August 2019 BPE-8000 Series... -
Page 10: Bpe-8000 - Switchable Backplane Port Expander
LED St. + LED In: green LED A: green, if the desired signal is present on output 1 and output 2 LED B: green, if the desired signal is present on output 3 and output 4 BPE-8000 Series Date: 14th August 2019... - Page 11 4x BNC female 3x TTL, 1x Modulated Time Code - TC-AM ** Fixed outputs, no signal selection possible. BNC sockets Out 1 - Out 3 are freely programmable, Out 4 is permanently set to TC AM. Date: 14th August 2019 BPE-8000 Series...
-
Page 12: Configuring An Bpe-8000 Expansion Card Via The Web Interface
4.1 Configuring an BPE-8000 expansion card via the Web Interface Via the web interface or the Meinberg Device Manager (MDU), the following signals can be distributed to the BNC connectors (TTL) or fiber optical connectors (ST) according to your choice: PPS, 10MHz, Time Code DCLS, 2048kHz and programmable pulse outputs PP 1 - PP 4 of the upstream reference source.
