Fluidcontrol

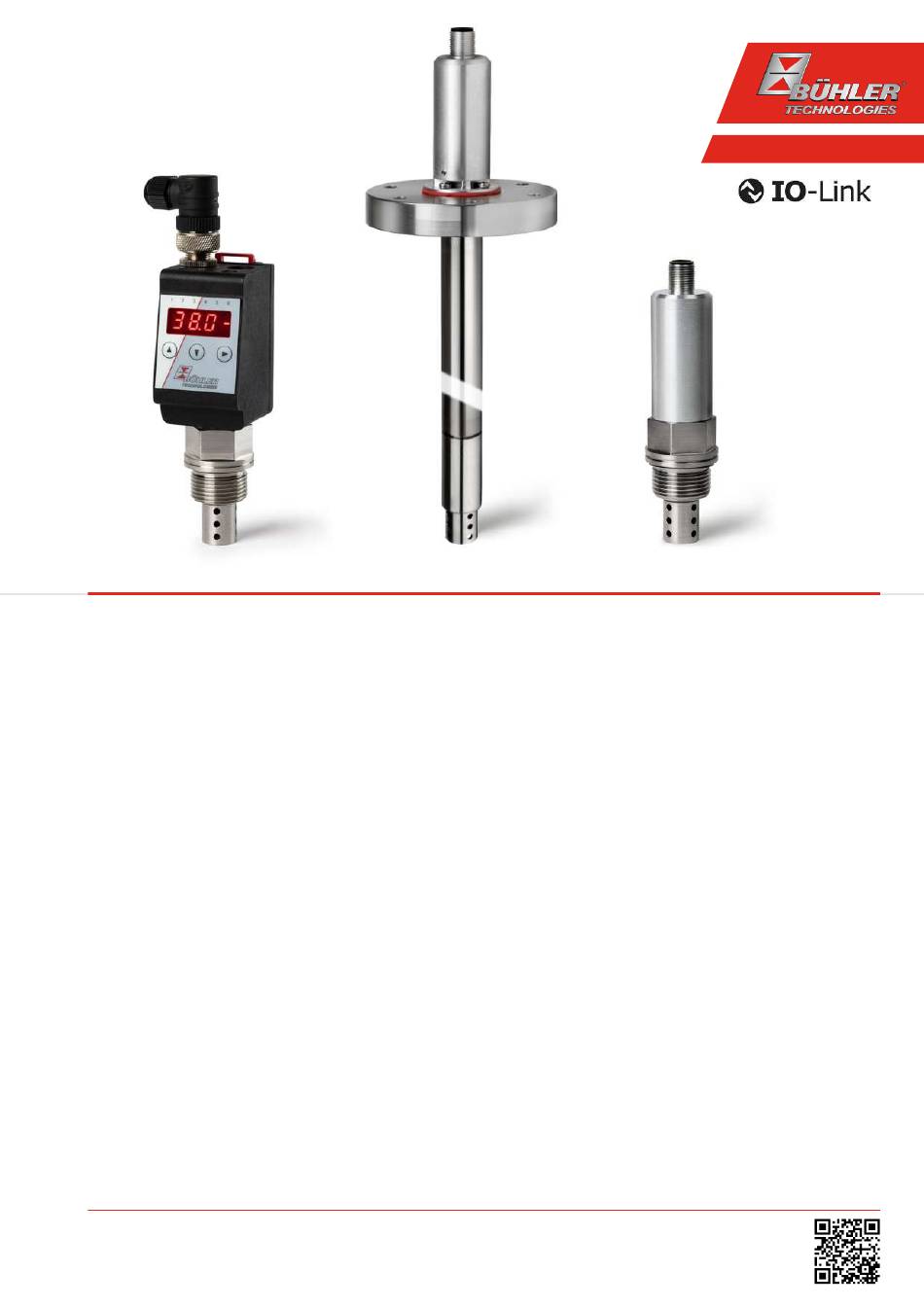

Oil Moisture Sensor
BCM-W
Installation and Operation Instructions
Original instructions
BE150101
Bühler Technologies GmbH, Harkortstr. 29, D-40880 Ratingen
12/2021
Tel. +49 (0) 21 02 / 49 89-0, Fax: +49 (0) 21 02 / 49 89-20
E-Mail: fluidcontrol@buehler-technologies.com
Internet: www.buehler-technologies.com
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Buhler BCM-W
Summary of Contents for Buhler BCM-W
- Page 1 Fluidcontrol Oil Moisture Sensor BCM-W Installation and Operation Instructions Original instructions BE150101 Bühler Technologies GmbH, Harkortstr. 29, D-40880 Ratingen 12/2021 Tel. +49 (0) 21 02 / 49 89-0, Fax: +49 (0) 21 02 / 49 89-20 E-Mail: fluidcontrol@buehler-technologies.com Internet: www.buehler-technologies.com...
- Page 2 Bühler Technologies GmbH, Harkortstr. 29, D-40880 Ratingen Tel. +49 (0) 21 02 / 49 89-0, Fax: +49 (0) 21 02 / 49 89-20 Internet: www.buehler-technologies.com E-Mail: fluidcontrol@buehler-technologies.com Read this instruction carefully prior to installation and/or use. Pay at- tention particularly to all advises and safety instructions to prevent in- juries.
-
Page 3: Table Of Contents
BCM-W Contents Introduction ............................................. 2 Intended Use......................................... 2 Functionality......................................... 2 1.2.1 Humidity monitoring.................................. 2 1.2.2 Temperature monitor.................................. 2 1.2.3 IO-Link........................................ 2 Design types.......................................... 3 Model key.......................................... 3 Scope of Delivery........................................ 3 Safety instructions ......................................... 4 Important advice ......................................... 4 General hazard warnings .................................... 5 Transport and storage ........................................ 6... -
Page 4: Introduction
BCM-W 1 Introduction 1.1 Intended Use Oil moisture sensors are used to monitor the water content in oils and the temperature. Oil moisture sensors must not be used in highly flammable or corrosive liquids. Please note the technical data in the appendix for the specific intended use, existing material combinations, as well as temper- ature limits. -
Page 5: Design Types
BCM-W 1.3 Design types The BCM is available as three basic models: Model Description BCM-WS Sensor without display BCM-WD Sensor with display (display built into the sensor) BCM-WR Combination of sensor and display (display for external installation) The BCM will have different switching and analogue outputs depending on the configuration. The outputs are freely program- mable. -
Page 6: Safety Instructions
BCM-W 2 Safety instructions 2.1 Important advice This device may only be used if: – The product is being used under the conditions described in the operating- and system instructions, used according to the nameplate and for applications for which it is intended. Any unauthorized modifications to the device will void the warranty provided by Bühler Technologies GmbH,... -
Page 7: General Hazard Warnings
BCM-W 2.2 General hazard warnings The equipment must be installed by a professional familiar with the safety requirements and risks. Be sure to observe the safety regulations and generally applicable rules of technology relevant for the installation site. Prevent malfunctions and avoid personal injuries and property damage. -
Page 8: Transport And Storage
BCM-W 3 Transport and storage Only transport the product inside the original packaging or a suitable alternative. The equipment must be protected from moisture and heat when not in use. It must be stored in a covered, dry, dust-free room at room temperature. -
Page 9: Setup And Connection
BCM-W 4 Setup and connection DANGER Electric voltage Risk of electric shock a) De-energise the system. b) The equipment may only be installed, maintained and put into operation by instruc- ted, competent personnel. c) Always observe the applicable safety regulations for the operating site. -
Page 10: Installation Recommendation
BCM-W 4.1.1 Installation recommendation Proper moisture sensor function requires the entire sensor element to be inside the medium at all times. The sensor version is suitable for installation at the side of the tank. Here the installation position should be below the minimum liquid level. When installing into a return pipe, be sure not to exceed the maximum flow rate. -
Page 11: Operation And Control
BCM-W 5 Operation and Control NOTICE The device must not be operated beyond its specifications. 5.1 BCM-WD/BCM-WR This explanation of operation refers to the versions with display unit. 5.1.1 Start-up procedure The device will automatically switch on when connected to power. It will first briefly display the software version, at which time the device will also check the built-in components. -
Page 12: General Key Functions
BCM-W 5.1.3 General key functions The keys below the display are used for operation. The menu controls are detailed in the following chapters. Mode Function – Measurement display: Change measured variables displayed. – In the menu: Move down one menu level. -
Page 13: Menu Overview
BCM-W 5.1.5 Menu overview The menu structure is based on the VDMA standard sheet 24574-1. The menu structure is hierarchic. The top menu level contains the main menu items, e.g. HuMi, tEMP, F, diA, E. Each main menu contains further submenu items. -
Page 14: Changing Basic Settings
BCM-W The basic device settings can be changed. General settings can be configured under Basic Settings Advanced Functions (b. E These settings should be configured first, as they affect the displays and settings for the individual menus. These settings are e.g. - Page 15 BCM-W Version with 2 switching outputs: Switching outputs Basic Settings 80% / 75% Err. h H. u ni 55°C t. u ni °C r. o u1 HuMi r. o u2 tEMP FASt Version with 4 switching outputs: Switching outputs Basic Settings 80% / 75% Err.
- Page 16 BCM-W 5.1.6.3 Set humidity unit This is where the unit symbol for the humidity is configured: H. u ni Basic EF b. E F Set Unit Humidity Selection menu Basic Adv. Functions -I - Humidity Unit The options are: Options:...
-
Page 17: Switching Outputs
BCM-W 5.1.6.6 Set display refresh rate The refresh rate of the display can be changed based on the application. The display can also be completely disabled. The LEDs will remain functional. b. E F Display Rate Selection menu ____ Basic EF Basic Adv. - Page 18 BCM-W 5.1.7.1 Switching output x: Definition of the switching characteristic The switching characteristic for the output can be configured under the following menu: ____ Measured variable Out X out_ EF X Set Out X Selection menu Settings menu OUTX Advanced Functions...
- Page 19 BCM-W Note: The designation of the switching function may vary: Measured variable closed open closed open rising NO contact rising NC contact falling NC contact falling NO contact NO (normally open) NC (normally closed) 5.1.7.2 Switching output x: Upper switching limit (switching point)
- Page 20 BCM-W 5.1.7.4 Switching output x: Switch-on delay The menu Advanced Functions is used to configure additional settings for switching output x. The submenu is at the second submenu level. The switching and switch-back delay prevents the alarm being triggered too frequently in unstable conditions. The switching...
- Page 21 BCM-W 5.1.7.7 Change status LED display function The LEDs in the display indicate the switching status of the output. The following table shows how LEDs are allocated to the switching output: Numbering Switching output Allocation for 2 switching outputs Allocation for 4 switching outputs...
-
Page 22: Analogue Outputs
BCM-W ____ Out X out_ LEd_ L=__ Measured variable EF X LED Out X Selection menu Settings menu OUTX Advanced Functions Function status LEDX L= o - L=_o Measured variable main menu The options are: LED = output; LED = -output;... - Page 23 BCM-W 5.1.8.3 Analogue output x: Lower limit assignment Humidity Used to configure at which humidity level to output the minimum analogue signal. This is configured in menu: ____ Analog OutX Analog MinX A I. L o Selection menu ____ Measured variable Settings menu Analog X [ o.
-
Page 24: Diagnostic Options
BCM-W 5.1.9 Diagnostic options The device is able to log events for a switching output. The LED lighting up is considered an event. The logging of switching pro- cedures therefore depends on how the LED switching function is configured. The configuration and analysis can be carried out here. - Page 25 BCM-W 5.1.9.2 View error logbook Here you can open and delete error messages: Diagnostic Journal Error J. E rr Selection menu ____ Logs errors Diagnostics menu ____ - --- To delete the error messages: Example: – Display error number 0, button –...
- Page 26 BCM-W 5.1.9.4 Maximum and minimum temperature Used to view or delete the saved maximum and minimum temperature: Diagnostic Max/Min Temp t. M M ____ Selection menu ____ - --- Diagnostics menu Max/Min Memory The journal entries will be displayed as: Example: –...
-
Page 27: Bcm-Ws
BCM-W 5.1.9.7 Delay for storing the Min/Max Temperature A delay time for saving the minimum and maximum temperature can be set to record reliable values when temperatures fluc- tuate. Here, enter the time span in seconds during which the signal must be continuously present before the temperature is logged. -
Page 28: Cleaning And Maintenance
BCM-W 6 Cleaning and Maintenance Regularly check sealing screw connections for leaks, particularly if vibration may occur. Apart from this the device is mainten- ance-free. The method for cleaning the devices must be adapted to the IP protection class of the devices. Do not use cleaners which could damage the device materials. -
Page 29: Service And Repair
BCM-W 7 Service and repair This chapter contains information on troubleshooting and correction should an error occur during operation. Repairs to the unit must be performed by Bühler authorised personnel. Please contact our Service Department with any questions: Tel.: +49-(0)2102-498955 or your agent If the equipment is not functioning properly after correcting any malfunctions and switching on the power, it must be inspected by the manufacturer. -
Page 30: Spare Parts And Accessories
BCM-W Possible errors Problem / Malfunction Possible cause Action Switching output not trigger- – Switching output configured incorrectly – In submenu Coux: “Test Switching Output“ to ing when exceeding limits ensure normal mode – Switching output defect – In submenu Coux: “Test Switching Output” to... -
Page 31: Disposal
BCM-W 8 Disposal The applicable national laws must be observed when disposing of the products. Disposal must not result in a danger to health and environment. The crossed out wheelie bin symbol on Bühler Technologies GmbH electrical and electronic products indicates special disposal notices within the European Union (EU). -
Page 32: Appendices
BCM-W 9 Appendices 9.1 Technical Data BCM-WS Sensor versions BCM-WS100 BCM-WS120 BCM-WS160 Max. operating pressure 50 bar 50 bar 1 bar Medium -20 °C to +80 °C * -20 °C to +80 °C * -20 °C to +80 °C * Threaded connection G3/4"... - Page 33 BCM-W Temperature measurement Measuring range -20 °C to +120 °C Accuracy ± 1.5 % FS Analog output 4 – 20 mA (-20 to +120 °C) Tolerance ± 0.5 % FS Load Ω = (U – 8V) / 0.02 A BE150101 ◦ 12/2021...
-
Page 34: Technical Data Bcm-Wr/Bcm-Wd
BCM-W 9.2 Technical Data BCM-WR/BCM-WD Sensor with Display and Control Unit General Technical Data Max. operating pressure 50 bar 1 bar Medium -20 °C to + 80 °C * Threaded connection G3/4" pipe thread, EOlastic seal max. torque 20 Nm... -
Page 35: Dimensions Bcm-Ws
BCM-W IO-Link IO-Link Revision 1.1 Baudrate COM3 (230.4 k) SIO Mode min. time period 10 ms Moisture measurement Measuring range 0 - 100 % rel. humidity Accuracy ± 3 % FS Analog output Parametrisable current or voltage output (4 - 20 mA, 2 - 10 V, 0 - 10 V or 0 - 5 V) Tolerance ±... -
Page 36: Outputs Bcm-Ws
BCM-W 9.4 Outputs BCM-WS Version 1S2A Plug (base) 1 x M12 – 8-pin 1 x M12 – 4-pin Switching output (fixed) IO-Link Humidity analogue output Temperature analogue output 9.5 Outputs BCM-WD/BCM-WR Version 2S2A 1D1S 4S2A Plug (base) 1 x M12 – 8-pin 1 x M12 –... -
Page 37: Pin Assignment Bcm-Wr/Wd
BCM-W 9.7 Pin assignment BCM-WR/WD Plug A Plug B Sensor connection jack WD/WR- WD/WR- WD/WR- WD/WR- 2S2A 1D1S 4S2A 4S2A Panel plug/jack 8-pin 4-pin 4-pin 8-pin 8-pin Standard IO-Link IO-Link DO/S2 S1 Humidity S2-Temp. I1 humidity I1 humidity I1 humidity I2 temp. -
Page 38: Menu Sequence Overview
BCM-W 9.10 Menu Sequence Overview Main menu Submenu 1 Submenu 2 Submenu 3 Settings and Display Menu Configuration H__i Shortcut Equipment configuration or 60s no action: Exit main/submenu Display ____ ____ Switch ____ ____ Switches the measurement display level / temperature... -
Page 39: Attached Documents
BCM-W 10 Attached documents – Declaration of conformity KX150001 – RMA - Decontamination Statement BE150101 ◦ 12/2021 Bühler Technologies GmbH... - Page 42 RMA-Formular und Erklärung über Dekontaminierung RMA-Form and explanation for decontamination RMA-Nr./ RMA-No. Die RMA-Nr. bekommen Sie von Ihrem Ansprechpartner im Vertrieb oder Service. Bei Rücksendung eines Altgeräts zur Entsorgung tragen Sie bitte in das Feld der RMA-Nr. "WEEE" ein./ You may obtain the RMA number from your sales or ser- vice representative.
- Page 43 Dekontaminierungserklärung DE000011 Bühler Technologies GmbH, Harkortstr. 29, D-40880 Ratingen 12/2022 Tel. +49 (0) 21 02 / 49 89-0, Fax: +49 (0) 21 02 / 49 89-20 E-Mail: service@buehler-technologies.com Internet: www.buehler-technologies.com...
