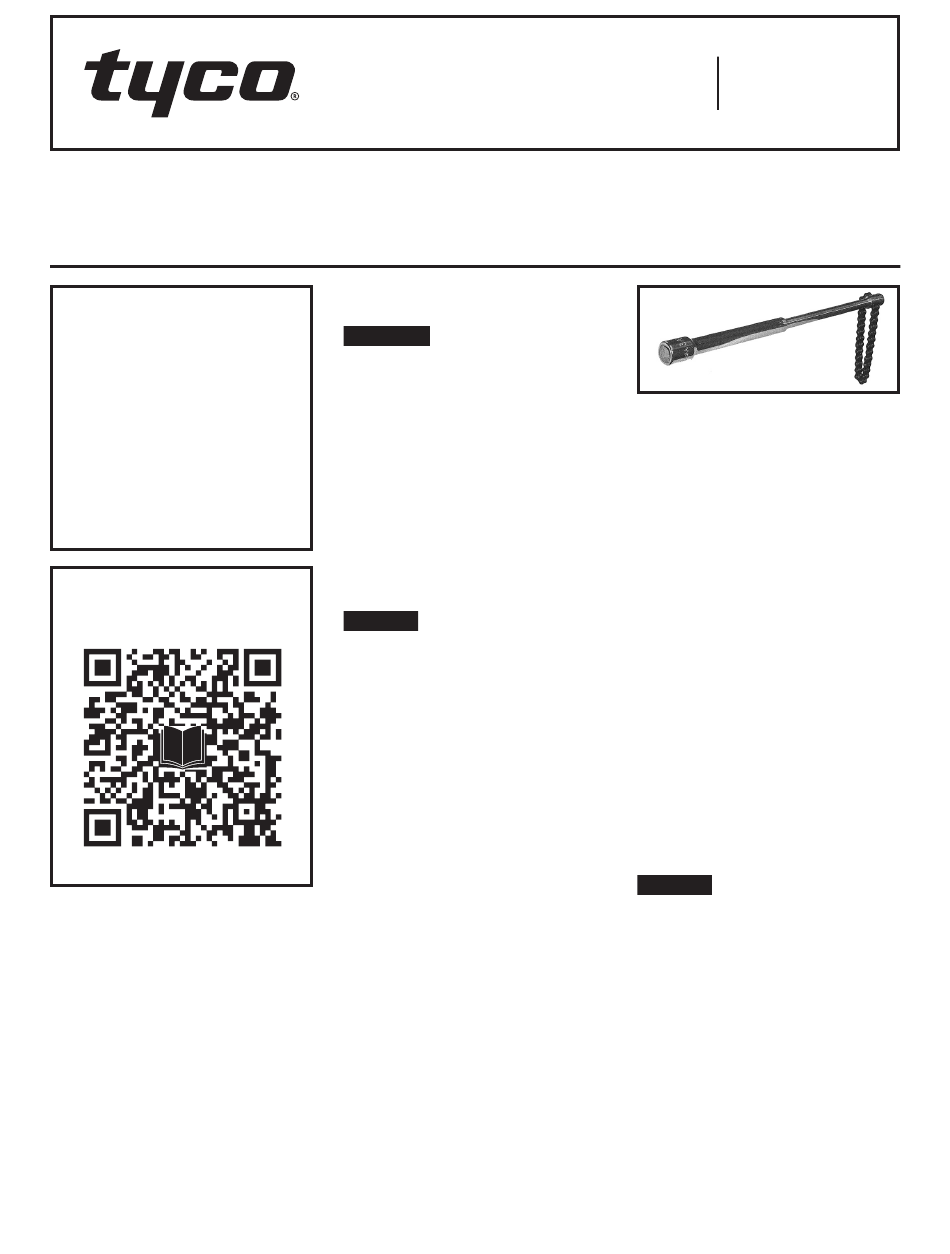

Tyco 3002B Quick Start Manual

Model 3002B
CPVC Sprinkler Head Adapter Fitting
Holdback Wrench

IMPORTANT

Refer to Technical Data Sheet
TFP2300 for warnings pertaining to
regulatory and health information.
Always refer to Technical Data
Sheet TFP700 for the "INSTALLER
WARNING" that provides cautions
with respect to handling and instal-
lation of sprinkler systems and com-
ponents. Improper handling and
installation can permanently damage
a sprinkler system or its compo-
nents and cause the sprinkler to fail
to operate in a fire situation or cause
it to operate prematurely.
Scan the QR code or enter the URL
in a web browser to access the most
up-to-date electronic version of this
document. Data rates may apply.
docs.jci.com/tycofire/tfp1950
General
Description
The TYCO Model 3002B CPVC Sprin-
kler Head Adapter (SHA) Fitting Hold-
back Wrench is designed to aid in
the service of CPVC fire sprinkler
piping systems. The wrench is used to
assist with the removal of a sprinkler
installed in finished ceilings by apply-
ing a holdback on the sprinkler head
adapter fitting, while a sprinkler wrench
removes the sprinkler.
The wrench is specifically designed to
work with TYCO CPVC sprinkler head
adapter fittings. Since CPVC pipe and
fittings are inherently flexible, caution
must be taken to insure the pipe and
Page 1 of 2
fittings are properly restrained when
removing a sprinkler.
CAUTION
The user of the TYCO Model 3002B
CPVC Sprinkler Head Adapter Fitting
Holdback Wrench must read all direc-
tions and user precautions presented
in this data sheet.
Failure to follow all printed instructions
for this product may cause injury to the
user or damage to the piping system
and structure being worked on.
As with use of all tools, proper training,
safety equipment and OSHA require-
ments must be sought, worn and
observed at all times.
Johnson Controls assumes no liability
for the use or misuse of this product.
NOTICE
The Model 3002B SHA Holdback
Wrench described herein must be uti-
lized and maintained in compliance
with this document, as well as with the
applicable standards of the NATIONAL
FIRE PROTECTION ASSOCIATION
(NFPA), in addition to the standards of
any other authorities having jurisdiction
(AHJ). Failure to do so may impair the
integrity of this device.
The owner is responsible for main-
taining their fire protection system
and devices in proper operating con-
dition. Contact the installing contrac-
tor or product manufacturer with any
questions.
Technical
Data
Construction - see Figure 1
• 3/8 in. drive socket extension
• Roller chain
• Cap
• Button head screw
Note: Two replacement chains are provided
with each wrench. Replacement chain kits
are separately available.
Care and
Maintenance
The TYCO Model 3002B CPVC SHA
Wrench must be maintained and ser-
viced in accordance with this section.
NOVEMBER 2022
Worldwide
www.tyco-fire.com
Contacts
A worn or broken roller chain must be
replaced to prevent damage to CPVC
fittings and pipe or personal injury. To
replace a roller chain see Figure 1 for
reference and perform the following
steps:
Step 1. Loosen and remove the but-
ton head cap screw using a 1/4 in. hex
bit or allen wrench.
Step 2. Remove the end cap.
Step 3. Remove the roller chain from
the drive socket extension.
Step 4. Align and insert the link of
the replacement roller chain into the
recessed end of the drive socket exten-
sion, and ensure the link is fully seated.
Step 5. Align and fully seat the end
cap onto the end of the drive socket
extension.
Step 6. Install the button head cap
screw into the drive socket extension,
tightening using 1/4 in. hex bit or allen
wrench. Do not over-tighten to avoid
causing damage to threads.

Sprinkler Removal

NOTICE
Before closing a fire protection system
main control valve for maintenance
work on the fire protection system that
it controls, permission to shut down the
affected fire protection system must be
obtained from the proper authorities
and all personnel who may be affected
by this action must be notified.
A sprinkler system must be de-pres-
surized and properly drained before
removing a sprinkler.
Other common hand tools, furnished
by the user, are needed in conjunc-
tion with the TYCO Model 3002B SHA
Fitting Holdback Wrench to facilitate
removal of a sprinkler from a CPVC fire
sprinkler piping system.
The holdback wrench accepts a 3/8 in.
