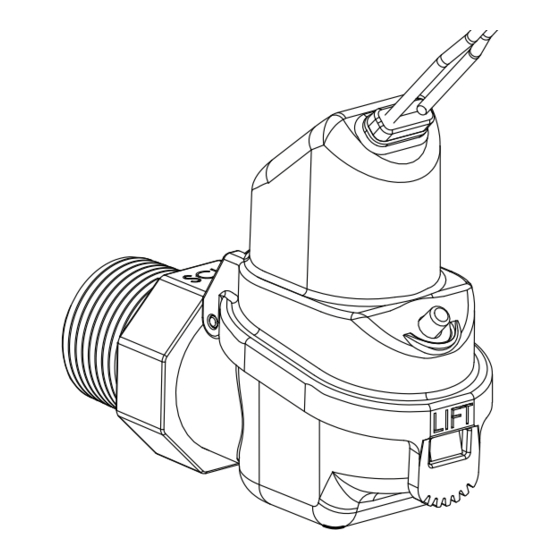

DIVERSITECH ASURITY BG-301+ Installation Instructions

Switch to measure and monitor the
condensate water level on an HVAC unit.
CONDENSATE MANAGEMENT
WARNING WORK SAFE, READ THIS:
Failure to read and comply with all warnings, cautions, &
instructions prior to starting installation may cause personal
injury and/or property damage and will void warranty.
This device must be installed according to manufacturer's
instructions, and must be in agreement with all applicable
local HVAC, plumbing, drainage, and electrical codes.
Remove electric shock hazard - DISCONNECT THE POWER
BEFORE INSTALLING SWITCH to avoid electrical shock and/
or equipment damage. Do not use on circuits exceeding 24
volts to avoid damage to switch, shock, or fire hazard. Switch
must be connected to an isolated transformer with a max
rating of 30VAC, 8A, and 100VA.
In any installation where property damage may result from an
inoperative switch due to power outage, a back-up system(s)
and/or alarm should be installed.
The switch must only be installed by a licensed contractor or
under the direct supervision of the same. The condensation
pan must be properly maintained after installation and kept
free from foreign objects, rust, or other obstructions that
might interfere with the proper operation of the float switch.
Installation Instructions
WIRING THE BG-301 IN A CONVENTIONAL
HVAC SYSTEM
(To ensure proper performance of product, instructions must
be followed.)
1. Ensure the power is disconnected to the unit at the main
panel prior to moving to the next step. Refer to the
appliance manufacturer's installation and operating
instructions and review wire layout in their instructions.
2. Locate the red wire connecting the 24 volt transformer
on the air handler and the Thermostat (See Fig 1).
3. Disconnect or cut.
4. Using wire nuts, connect one of the Latching Switch wires
to the cable going to the 24 VAC transformer on the air
handler.
Red
Thermostat
Switch
Fig. 1
Primary Pan Latching Switch
BG-301+, BG-302P+T
5. Using wire nuts, connect the other Latching Switch
wires to the red wire going to the thermostat. This
configuration results in power to both air handler and
compressor terminating when switch is tripped.
Note: If only compressor power is to be terminated, it is
acceptable to connect to the yellow thermostat wire as
an alternate configuration.
The Latching Switch is a normally closed switch. The
switch is compatible with communicating HVAC
systems. Please refer to your HVAC manufacturer for
wiring instruction in communicating HVAC systems.
24 VAC Supply
Switch
Air Handler
diversitech.com 800.995.2222
3 YEAR
