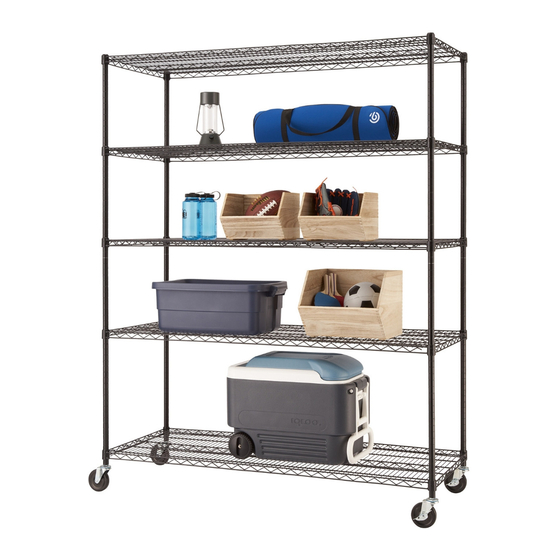

- Page 1 ® Everything in its place. OWNER’S MANUAL TRINITY 5-TIER NSF WIRE SHELVING RACK w/WHEELS – BLACK Model # TBFPB-0931...
-
Page 2: Parts List
Your TRINITY 5-TIER NSF Black Wire Shelving Rack with Wheels should include the following parts. Please inspect box contents to ensure you have received all components. If you are missing any parts, need assistance with assembly or have questions, please contact TRINITY Customer Service: 800.985.5506 or customerservice@trinityii.com. Parts can also be requested online at www.trinityii.com (Help &... - Page 3 * For safety and stability, the lowest SHELF (C) should be lower than the 3 notch from the bottom. ** Note: There will be a very small gap in-between the SLIP SLEEVES (D) —this is normal. © 2017 TRINITY - 800.985.5506...
- Page 4 C (1) *Note: The level side of the SHELF (C) is the TOP side (the TRINITY logo on the corner cylinders should be right-side up.) **Use a rubber mallet, if needed, to secure the SHELF (C). ***For convenience, place BOTTOM POLES (B) with Locking...
- Page 5 Lower SHELF (C) over the TOP POLES (A) so that the corner cylinders of the SHELF (C) are positioned over the SLIP SLEEVES (D). Repeat Step 6 to install other SHELVES (C) as desired. **Use a rubber mallet, if needed, to secure the SHELVES (C). © 2017 TRINITY - 800.985.5506...
- Page 6 SERVICE PARTS LIST – TBFPB-0931 TRINITY Customer Service provides the following replacement parts: Part Number Description Part Number Description XBK-01-012-2543 Slip Sleeve ZSV-99-008-4010 Locking Caster PBK-04-006-3600 Top Pole XBK-98-003-2538 Feet Leveler ZSV-01-013-2523 Pole Connector ZSV-99-007-4010 Non-locking Caster PBK-04-008-3600 Bottom Pole...
- Page 7 © 2016 TRINITY - 800.985.5506...
-
Page 8: Care And Maintenance
Weight capacity per Shelf on Casters 120 lb (evenly distributed) Total weight capacity of Shelving Rack 2250 lb (on Feet Levelers) 600 lb (on Casters) (evenly distributed) CARE AND MAINTENANCE • Avoid harsh, abrasive cleaners, and other corrosive chemicals © 2017 TRINITY - 800.985.5506... -
Page 9: Product Registration
PRODUCT REGISTRATION Thank you for purchasing a TRINITY 5-TIER NSF Black Wire Shelving Rack with Wheels. In order to register your product and receive streamlined customer service, please fill out the following Product Registration Form and (1) fax the form to 310.347.4134 (2) complete the Product Registration Form online at www.trinityii.com or (3) scan and email the form to... - Page 10 © 2017 TRINITY - 800.985.5506...
-
Page 11: Year Limited Warranty
Product, use contrary to this User’s Manual, or alteration by any one other than Trinity. The warranty period of 1 year shall not be extended or renewed by the repair or replacement of, or compensation for, the Product. Any warranty implied by applicable law is limited in duration to one year from the date of purchase and is subject to the same conditions and limitations as is provided for our express warranty. - Page 12 WE ARE HERE TO HELP! Please feel free to contact us. There are no questions too small, or any problems too big. We’re committed to providing our customers with the highest level of service. TRINITY Customer Service TEL: 800.985.5506 FAX: 310.347.4134 EMAIL: customerservice@trinityii.com Monday through Friday 8:00 AM –...
