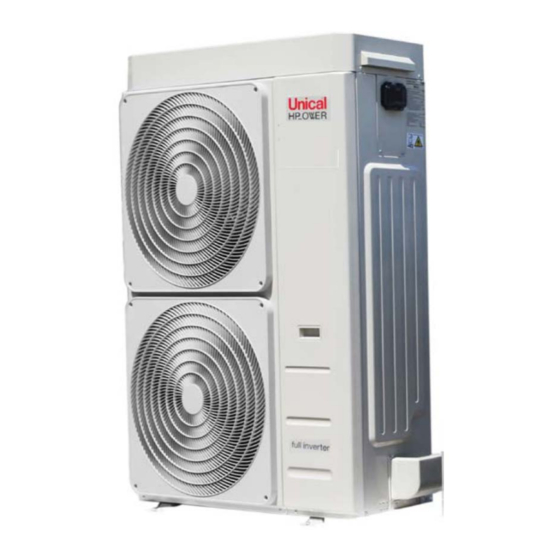

Unical HP-OWER ONE R Series User's And Installer's Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
ONE R
70R – 90R – 120R - 120RK – 140R – 160RT – 180R
70RK – 90RK – 120RK – 140RK – 160RTK – 180RK
User's and Installer's ManUal

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HP-OWER ONE R Series and is the answer not in the manual?

Questions and answers

Related Manuals for Unical HP-OWER ONE R Series

Summary of Contents for Unical HP-OWER ONE R Series

  • Page 1 ONE R 70R – 90R – 120R - 120RK – 140R – 160RT – 180R 70RK – 90RK – 120RK – 140RK – 160RTK – 180RK User’s and Installer’s ManUal...

  • Page 3: Table Of Contents

    CONTENTS PURPOSE AND CONTENTS OF THE MANUAL ......................4 HOW TO KEEP THE MANUAL ............................4 GRAPHIC SYMBOLS USED IN THE MANUAL ....................... 4 NORMATIVE REFERENCES ............................... 4 PERMITTED USE ................................... 5 GENERAL SAFETY GUIDELINES ............................. 5 WORKERS’ HEALTH AND SAFETY ..........................5 PERSONAL PROTECTIVE EQUIPMENT ..........................
  • Page 4 OPERATING LIMITS ................................54 15.1 EVAPORATOR WATER FLOW RATE ..........................54 15.2 COLD WATER PRODUCTION (SUMMER MODE) ......................55 15.3 HOT WATER PRODUCTION (WINTER MODE) ......................55 15.4 AMBIENT AIR TEMPERATURE AND SUMMARISED TABLE ..................55 CORRECTION FACTORS FOR USE OF GLYCOL ....................... 57 DIMENSIONS ..................................

  • Page 5: Purpose And Contents Of The Manual

    The manual of HP_OWER ONE units contains all the necessary information for optimal use of the equipment under safe conditions for the operator. 1 PURPOSE AND CONTENTS OF THE MANUAL This manual provides basic information as to the selection, installation, operation and maintenance of heat pumps. It is intended for the operators of the appliance and it enables them to use the equipment efficiently, even if they do not have any previous specific knowledge.

  • Page 6: Permitted Use

    3 PERMITTED USE • The company excludes any contractual and extra contractual liability for damage caused to persons, animals or objects, by incorrect installation, setting and maintenance, improper use of the equipment, and the partial or superficial reading of the information contained in this manual.

  • Page 7: Personal Protective Equipment

    During the design phase, the indications contained in UNI EN ISO 14738 regarding the workstations on the machine were followed and the lifting limits imposed by UNI ISO 11228-1 were evaluated. Be sure to maintain a posture that does not cause fatigue during installation and maintenance of the unit. Also check its weight before moving any component.

  • Page 8: Refrigerant Safety Data Sheet

    REFRIGERANT SAFETY DATA SHEET Name: R32. HAZARDS IDENTIFICATION Main hazards: Asphyxiation. Specific hazards: Quick evaporation could cause it to freeze. FIRST AID MEASURES General information: Do not administer to people who are unconscious. Inhalation: Immediately remove to fresh air. Use oxygen or artificial respiration as required. The use of adrenaline or similar drugs should be avoided.

  • Page 9: Specific R32 Gas Warnings

    STABILITY AND REACTIVITY Stability: Stable under normal conditions. Materials to avoid: Air, oxidizing agents, humidity. Under normal storage and use conditions, hazardous decomposition products should not be Decomposition products generated. hazardous: TOXICOLOGICAL INFORMATION Acute toxicity: LD/LC50/inhalation/4 hours/on rat >1107000 mg/m Local effects: No known effect.

  • Page 10: Average Versions

    5 AVERAGE VERSIONS Model Description HP_OWER ONE 70R Size 7kW HP_OWER ONE 70RK Size 7kW + Antifreeze kit HP_OWER ONE 90R Size 9kW HP_OWER ONE 90RK Size 9kW + Antifreeze kit HP_OWER ONE 120R Size 12kW (Single-phase power supply) HP_OWER ONE 120RK Size 12kW + Antifreeze kit (Single-phase power supply) HP_OWER ONE 120RT Size 12kW (Three-phase power supply)

  • Page 11: Temperature Limits During Transport And Storage

    Do not perforate or burn CAUTION: There are some moving components inside the unit. Pay the utmost attention when operating in their vicinity, even if power is disconnected. The heads and delivery pipe of the compressor are normally quite hot. Be careful when working near the condensing coils.
  • Page 12 This is why the Minimum clearances shown below must be strictly guaranteed. MODEL A[mm] B [mm] C [mm] D [mm] E[mm] L[mm] HP_OWER ONE 70R/RK 1500 HP_OWER ONE 90R/RK 1500 HP_OWER ONE 120R/RK/RT 1500 HP_OWER ONE 140R/RK 1500 HP_OWER ONE 160RT/RTK 1500 HP_OWER ONE 180R/RK 1500...
  • Page 13 In the case of suspended installation, it is necessary to ensure that the wall is made of solid brick, concrete or materials with similar resistance characteristics. The bearing capacity of the wall must be sufficient to support at least four times the weight of the unit. The support surface must not be inclined to guarantee the correct functioning of the unit and to avoid the possible overturning of the same.

  • Page 14: Plumbing Connections

    In the event of winds stronger than 2.2 m/s the use of wind barriers is recommended. It is always advisable to carry out an environmental impact assessment on the basis of the power and sound pressure data reported in the "Technical data" chapter and of the sound emission limits based on the installation area of the unit, with reference to DPCM 14 / 11/1997 .

  • Page 15: Features Of The Circuit Water

    6.5.1 Features of the circuit water To guarantee correct operation of the unit, the water must be appropriately filtered (see the instructions at the start of this paragraph) and there must be only a minimum amount of dissolved substances. The maximum allowed values are shown below MAXIMUM CHEMICAL-PHYSICAL PROPERTIES ALLOWED FOR THE CIRCUIT WATER 7.5 - 9 Electrical conductivity...

  • Page 16: Filling The System

    6.5.3 Filling the system CAUTION: supervise all filling/top-up operations. CAUTION: before filling/topping up the system, disconnect power to the units. CAUTION: the system must always be filled/topped up in controlled pressure conditions (max 1 bar). Make sure that a pressure reducer and safety valve have been installed on the filling/top-up line. CAUTION: the water on the filling/top-up line must be appropriately pre-filtered from any impurities and suspended particles.

  • Page 17: System Unloading

    In the event of observing a water leak, it is mandatory to replace the component, by loosening it with a wrench, as pictured below. 6.5.6 System unloading If the unit has to be completely drained, first close the manual inlet and outlet gate valves (not supplied) and then disconnect the pipes arranged externally on the water inlet and outlet in order to let the liquid contained in the unit escape (to make the operation is easy, it is advisable to install two drain cocks interposed between the unit and the manual gate valves externally on the water inlet and outlet).

  • Page 18: Hydraulic Circuit

    6.5.7 HYDRAULIC CIRCUIT HP_OWER ONE 70R - 70RK - 90R - 90RK HP_OWER ONE 120R - 120RK-120RT HP_OWER ONE 140R - 140RK - 160RT - 160RTK - 180R - 180RK UTILITY INLET TEMPERATURE PROBE TEOE UTILITY OUTLET TEMPERATURE PROBE DRAIN VALVE SAFETY VALVE FLOW SWITCH PUMP...

  • Page 19: Refrigerant Diagram Hp_Ower One 70R - 70Rk - 90R - 90Rk

    REFRIGERANT DIAGRAM HP_OWER ONE 70R – 70RK - 90R – 90RK CODE DESCRIPTION CODE DESCRIPTION COMPRESSOR H/CS UTILITY WATER OUTLET CO/EV CONDENSER (IN CHILLER MODE) H/CR UTILITY WATER INLET EV/CO EVAPORATOR (IN CHILLER MODE) PEHTC HIGH PRESSURE TRANSDUCER ELECTRONIC EXPANSION VALVE PEDTR LOW PRESSURE TRANSDUCER YISV...

  • Page 20: Refrigerant Diagram Hp_Ower One 120R - 120Rk - 120Rt

    REFRIGERANT DIAGRAM HP_OWER ONE 120R – 120RK - 120RT REFRIGERANT DIAGRAM HP_OWER ONE 140R - 140RK - 160RT – 160RTK - 180R - 180RK...

  • Page 21: Electrical Connections

    ELECTRICAL CONNECTIONS Check that the power supply matches the unit’s electric nominal data (voltage, phases, frequency) displayed on the rating plate on the unit’s side panel. The electric power connections must be made in accordance to the wiring diagram enclosed with the unit and in conformity with national and international standards (providing general circuit breaker, residual current devices for each line, proper earthing of the plant, etc.).

  • Page 22: Power Supply

    6.9.2 Power supply The electrical wiring to the terminal blocks has to be done only by qualified personnel. Make sure to install an adequate ground connection, incomplete grounding can cause electric shock. The manufacturer cannot be held responsible for any damage caused by failure or ineffective earthing. Power cables, electric protections and line fuses must be sized according to the specifications listed in the wiring diagram enclosed with the unit and in the electrical data contained in the table of technical characteristics (see Paragraph 0).
  • Page 23 USER TERMINAL BLOCK: HP_OWER ONE 70R - 70RK - 90R - 90RK - 120R - 120RK - 140R - 140RK HP_OWER ONE 120RT - 160RT - 160RTK - 180R - 180RK...

  • Page 24: Startup

    TERMINAL CONNECTION TYPE Connect the earth cable Power supply Input Connect the neutral cable from the mains 1-Ph/N/PE, 230Vac, 50Hz Connect the phase cable from the mains Connect the earth cable Power supply Input Connect the neutral cable from the mains 3-Ph/N/PE, 400 Vac, 50Hz.

  • Page 25: Switching On The Unit

    Fill in the "First start request" form in the document envelope. CAUTION: The unit must be connected to the electric mains and placed in STANDBY (powered on) by closing the master switch at least 12 hours before start-up. This will allow the heaters to adequately warm up the compressor crankcase (the heaters are powered automatically when the switch is closed).

  • Page 26: Maintenance And Periodic Checks

    10 MAINTENANCE AND PERIODIC CHECKS CAUTION: All the operations described in this chapter MUST BE CARRIED OUT BY QUALIFIED PERSONNEL ONLY. Before performing any intervention on the unit or accessing internal parts, make sure you have disconnected power. The heads and delivery pipe of the compressor are normally quite hot. Be careful when working near the condensing coils.

  • Page 27: Cleaning The Finned Coil

    exchanger. This operation is essential if ambient temperatures are expected during the shutdown period below the freezing point of the fluid used Circulation pump efficiency. Check presence of corrosions/ oxidations Check panel fastening Check the water quality (see chapter Characteristics of the system water) and the possible concentration of glycol Check the pressure drops of any filter driers on the liquid line Check the hydronic side safety valve...

  • Page 28: Environmental Protection

    10.4 ENVIRONMENTAL PROTECTION Legislation regulating the use of substances harmful for the ozone layer establishes the prohibition of releasing refrigerant gases into the environment. In fact at the end of their service life, these must be retrieved and handed over to specific collection facilities.

  • Page 29: Residual Risks

    11.1 Residual risks This paragraph sets forth any residual risks which cannot be eliminated by the manufacturer in the design stage. Risk due to: Precautions/Corrections There is always the risk of the unit falling or tipping over during handling. Follow the instructions in the Handling “Handling”...
  • Page 30 Measurement Completed Notes Trigger Sources ■ Never use ignition sources, which could ignite the refrigerant, when carrying out operations on the cooling circuit which contains, or contained, flammable refrigerant. Remove all possible sources of ignition, including cigarettes, from the area where installation, repair, dismantling or disposal operations are being carried out, which may lead to a leak of refrigerant.
  • Page 31 Measurement Completed Notes Repairs on sealed connectors ■ During operations on sealed components, completely isolate the device from the power supply, before removing the sealed covers. ■ If, during operations, the power supply is absolutely necessary: Position a continuously operating refrigerant detector in the most critical places, so that it emits a warning signal in case of potentially dangerous situations.
  • Page 32 Measurement Completed Notes Leak detection The following leak detection methods are suitable for plants with flammable refrigerant: Leak detection by electronic refrigerant leak detector: ■ Electronic refrigerant leak detectors may not have the required sensitivity or may need to be calibrated for the relevant range. Perform the calibration operations in an area free of refrigerant.
  • Page 33 Measurement Completed Notes - The cylinders must be kept vertical. - Make sure that the refrigeration system is grounded before proceeding to recharge the system with the refrigerant fluid. - Label the system when charging is complete, (if not already done). - Particular care must be taken not to overload the refrigeration system.
  • Page 34 Measurement Completed Notes refrigerant fluid storage). The cylinders must be complete with a pressure relief valve and associated shut-off valves, in good working order. The cylinders of Empty cases are collected and, if possible, cooled before recovery takes place. The recovery apparatus must be in good operating condition with a series of instructions relating to the apparatus that is being managed and must be suitable for the recovery of fluids flammable refrigerants.

  • Page 35: Technical Data

    12 TECHNICAL DATA 12.1 TECHNICAL SHEET Model HP_OWER ONE Unit of TECHNICAL SPECIFICATIONS measurement 70R-70RK 90R-90RK 120R-120RK-120RT Cooling capacity (1) 4,82 / 6,18 / 6,80* 4,91 / 7,72 / 8,49* 6,41 / 11,60 / 12,76* min/nom/max Input power (1) 1,28 1,76 2,79 E.E.R.
  • Page 36 Model HP_OWER ONE Unit of TECHNICAL SPECIFICATIONS measurement 70R-70RK 90R-90RK 120R-120RK-120RT 230V/1/50Hz(120R- 120RK) Power supply 230V/1/50Hz 230V/1/50Hz 400V/3P+N+T/50Hz (120RT) Electrical data Maximum input power 22,1 (120R) Maximum input current 15,1 17,0 7,3 (120RT Maximum input power (version -K) Maximum input current (version -K) 15,6 17,6 22,7 22,7 (120RK)

  • Page 37: Unit And Auxiliary Electrical Data

    Model HP_OWER ONE Unit of TECHNICAL SPECIFICATIONS measurement 140R-140RK 160RT-160RTK 180R-180RK Nominal circulator output 0,14 0,14 0,14 Maximum circulator output 0,14 0,14 0,14 Max circulator absorbed current 1,10 1,10 1,10 Energy Efficiency Index (EEI) circulator ≤ 0,23 ≤ 0,23 ≤ 0,23 Fully Loaded Sound power level L dB(A) Partial Loaded Sound power level L...

  • Page 38: Corrective Factors

    12.3 CORRECTIVE FACTORS DIRTY EXCHANGER WITH WATER / REFRIGERANT PLATES Dirt Factor [m °C / kW] Correction factor Thermal Power Correction factor Input Power 1,00 1,00 0,44 x 10 0,99 1,00 0,88 x 10 0,98 1,00 1,76 x 10 ALTITUDE: The performance correction factors according to altitude are calculated by cooling under conditions (2) and for heating under conditions (3) of the previous technical data tables.

  • Page 39: Product Fiche Eu Regulation 811/2013

    13 PRODUCT FICHE EU REGULATION 811/2013 PRODUCT FICHE - HP_OWER ONE R MODELS for low-temperature application (Twater=35°C) Supplier's name UNICAL A.G. SPA Model 120R-120RK- 70R-70RK 90R-90RK 140R-140RK 160RT-160RTK 180R-180RK 120RT Seasonal space heating energy efficiency class A+++ A+++ A+++ A+++...
  • Page 40 Technical parameters for heat pump space heaters Model HP_OWER ONE 70R - 70RK Air-to-water heat pump Sì Water-to-water heat pump Brine-to-water heat pump Low-temperature heat pump Equipped with a supplementary heater Heat pump combination heater Parameters shall be declared for low-temperature application 35°C Parameters shall be declared for average climate condition Item Symbol...
  • Page 41 Technical parameters for heat pump space heaters Model HP_OWER ONE 90R – 90RK Air-to-water heat pump Sì Water-to-water heat pump Brine-to-water heat pump Low-temperature heat pump Equipped with a supplementary heater Heat pump combination heater Parameters shall be declared for low-temperature application 35°C Parameters shall be declared for average climate condition Item Symbol...
  • Page 42 Technical parameters for heat pump space heaters Model HP_OWER ONE 120R – 120RK – 120RT Air-to-water heat pump Sì Water-to-water heat pump Brine-to-water heat pump Low-temperature heat pump Equipped with a supplementary heater Heat pump combination heater Parameters shall be declared for low-temperature application 35°C Parameters shall be declared for average climate condition Item Symbol...
  • Page 43 Technical parameters for heat pump space heaters Model HP_OWER ONE 140R – 140RK Air-to-water heat pump Sì Water-to-water heat pump Brine-to-water heat pump Low-temperature heat pump Equipped with a supplementary heater Heat pump combination heater Parameters shall be declared for low-temperature application 35°C Parameters shall be declared for average climate condition Item Symbol...
  • Page 44 Technical parameters for heat pump space heaters Model HP_OWER ONE 160RT – 160RTK Air-to-water heat pump Sì Water-to-water heat pump Brine-to-water heat pump Low-temperature heat pump Equipped with a supplementary heater Heat pump combination heater Parameters shall be declared for low-temperature application 35°C Parameters shall be declared for average climate condition Item Symbol...
  • Page 45 Technical parameters for heat pump space heaters Model HP_OWER ONE 180R – 180RK Air-to-water heat pump Sì Water-to-water heat pump Brine-to-water heat pump Low-temperature heat pump Equipped with a supplementary heater Heat pump combination heater Parameters shall be declared for low-temperature application 35°C Parameters shall be declared for average climate condition Item Symbol...
  • Page 46 PRODUCT FICHE - HP_OWER ONE R MODELS for medium-temperature application (Twater=55°C) Supplier's name UNICAL A.G. SPA Model 120R-120RK- 70R-70RK 90R-90RK 140R-140RK 160RT-160RTK 180R-180RK 120RT Seasonal space heating energy efficiency class Rated heat output average climate conditions 7 kW 7 kW...
  • Page 47 Technical parameters for heat pump space heaters Model HP_OWER ONE 70R – 70RK Air-to-water heat pump Sì Water-to-water heat pump Brine-to-water heat pump Low-temperature heat pump Equipped with a supplementary heater Heat pump combination heater Parameters shall be declared for medium-temperature application 35°C Parameters shall be declared for average climate condition Item Symbol...
  • Page 48 Technical parameters for heat pump space heaters Model HP_OWER ONE 90R – 90RK Air-to-water heat pump Sì Water-to-water heat pump Brine-to-water heat pump Low-temperature heat pump Equipped with a supplementary heater Heat pump combination heater Parameters shall be declared for medium-temperature application 35°C Parameters shall be declared for average climate condition Item Symbol...
  • Page 49 Technical parameters for heat pump space heaters Model HP_OWER ONE 120R – 120RK– 120RT Air-to-water heat pump Sì Water-to-water heat pump Brine-to-water heat pump Low-temperature heat pump Equipped with a supplementary heater Heat pump combination heater Parameters shall be declared for medium-temperature application 35°C Parameters shall be declared for average climate condition Item Symbol...
  • Page 50 Technical parameters for heat pump space heaters Model HP_OWER ONE 140R – 140RK Air-to-water heat pump Sì Water-to-water heat pump Brine-to-water heat pump Low-temperature heat pump Equipped with a supplementary heater Heat pump combination heater Parameters shall be declared for medium-temperature application 35°C Parameters shall be declared for average climate condition Item Symbol...
  • Page 51 Technical parameters for heat pump space heaters Model HP_OWER ONE 160RT – 160RTK Air-to-water heat pump Sì Water-to-water heat pump Brine-to-water heat pump Low-temperature heat pump Equipped with a supplementary heater Heat pump combination heater Parameters shall be declared for medium-temperature application 35°C Parameters shall be declared for average climate condition Item Symbol...
  • Page 52 Technical parameters for heat pump space heaters Model HP_OWER ONE 180R – 180RK Air-to-water heat pump Sì Water-to-water heat pump Brine-to-water heat pump Low-temperature heat pump Equipped with a supplementary heater Heat pump combination heater Parameters shall be declared for medium-temperature application 35°C Parameters shall be declared for average climate condition Item Symbol...

  • Page 53: Hydraulic Circuit Available Head Pressure

    14 HYDRAULIC CIRCUIT AVAILABLE HEAD PRESSURE Below the characteristic curves corresponding to Head pressure -Water flow without head losses of the hydronic kit. The optimal operating point is shown on each curve under the specified conditions at the apex (4). The circuit’s plant must be designed so as to ensure the nominal water flow rate corresponding to the operating points indicated below.
  • Page 54 Here also the range of the available head pressures that the unit can provide during the circulator modulation periode. HP_OWER ONE 70R - 70RK - 90R - 90RK HP_OWER ONE 120R - 120RK - 120RT...

  • Page 55: Operating Limits

    HP_OWER ONE 140R - 140RK - 160RT -160RTK – 180R - 180 RK 15 OPERATING LIMITS 15.1 EVAPORATOR WATER FLOW RATE The nominal water flow rate refers to a 5°C temperature difference between the evaporator inlet and outlet. The maximum permitted flow rate features a 3°C temperature difference while the minimum one has an 8°C temperature difference at the nominal conditions as shown in the technical sheet.

  • Page 56: Cold Water Production (Summer Mode)

    15.2 COLD WATER PRODUCTION (SUMMER MODE) A minimum temperature of 5°C is allowed at the evaporator outlet: for lower temperatures, contact the Technical Department. In this case contact our technical department to study the feasibility and assess the changes to be made according to demands. A maximum temperature of 25°C can be maintained at the evaporator outlet in steady-state operation.
  • Page 57 CHILLER MODE Cooling DOMESTIC HOT WATER MODE...

  • Page 58: Correction Factors For Use Of Glycol

    16 CORRECTION FACTORS FOR USE OF GLYCOL Glycol rate Freezing point (°C) IPCF WFCF PDCF -3,2 0,985 1,02 1,08 -7,8 0,98 0,99 1,05 1,12 -14,1 0,97 0,98 1,10 1,22 -22,3 0,965 0,97 1,14 1,25 -33,8 0,955 0,965 1,33 CCF: Capacity correction factor IPCF: Input power correction factor WFCF: Water flow rate correction factor...

  • Page 59: Dimensions

    17 DIMENSIONS 17.1.1 Model HP_OWER ONE 70R - 70RK - 90R - 90RK IN/OUT: 1”M G E: power supply input...

  • Page 60: Model Hp_Ower One 120R - 120Rk - 120Rt

    17.1.2 Model HP_OWER ONE 120R - 120RK - 120RT IN/OUT: 1”M G E: power supply input 17.1.3 Model HP_OWER ONE 140R - 140RK - 160RT - 160RTK - 180R - 180RK IN/OUT: 1”M G E: power supply input...

  • Page 61: Accessing The Inner Parts

    17.2 ACCESSING THE INNER PARTS 17.2.1 Mod. HP_OWER ONE 70R - 70RK - 90R - 90RK DETAIL A SCALE 1 : 3 DETAIL B SCALE 1 : 4 Interlocking tab...

  • Page 62: Mod. Hp_Ower One 120R - 120Rk - 120Rt

    1) Remove the cover 2) Undo the screws (number 2; 3; 4) of the sheet metal cover of the user interface and the screw (number 1) of the side panel to separate the front sheet metal from the side panel (Detail A). 3) Undo in sequence the screws (number 5;...
  • Page 63 1) Remove the cover by undoing the screws (number 1; 2; 3; 4; 5; 6; 7; 8;9). 2) Undo the screws (number 10; 11) of the front sheet and then push the panel downwards to remove the tabs (Detail A); pull the panel forward to remove it.
  • Page 64 - export@unical-ag.com - www.unical.eu Unical will not be held responsible for possible inaccuracies if due to transcription or printing errors. It also reserves the right to modify its products as deemed necessary or useful, without jeopardising their essential features.
