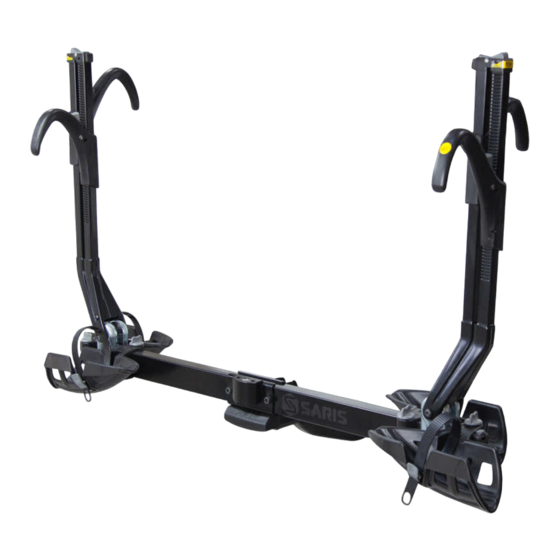

SuperClamp EX - 2 Bike
4025F

Advertisement

loading
Need help?

Need help?

Do you have a question about the SuperClamp EX-2 Bike and is the answer not in the manual?

Questions and answers

Summary of Contents for Saris SuperClamp EX-2 Bike

  • Page 1 SuperClamp EX - 2 Bike 4025F...
  • Page 2: Tell Us What You Think

    TELL US WHAT YOU THINK REGISTER YOUR PRODUCT FOR UPDATES...
  • Page 3 LONG FOR THE RIDE Just as no garage is complete without a bicycle, at Saris, we believe no car is complete withouta bike rack. Since setting off on this journey nearly 30 years ago, Saris racks have freed millions of bike-lovers to explore new territory and terrain, take part in group rides, bike pool to races, and commute to and from work.
  • Page 4 Specifications: 4025F SuperClamp EX For use with receiver hitches Class II or higher. Max = 60 lbs/kg 27 Guide Max = 120 lbs/54kg...
  • Page 5 Tools Needed: Items Included: Optional Accessories: #4419 Fat Tire Wheel Trays For 4.5”-5” tires M10 x 60 Adjustable or 19mm and 17mm...
  • Page 6 INSTALL RACK Install receiver and secure with pin and lock. Note: If your receiver is 1.25” remove the adapter block as shown. Tools Required: 19mm(3/4’’) Wrench, 5mm Hex Key(to remove adapter block) 2” 1.25”...
  • Page 7 Lay horizontal bar on to receiver plate, lining up front plate with bar and receiver. Secure with bolts & nuts, using 17mm(9/16”) wrench and 8mm hex key. NOTE : Remove rubber tips Tools Required: 17mm Wrench, 8mm Hex Key...
  • Page 8 Slide on outer wheel trays to complete rack assembly. (Wheel tray with white refl ectors installed on passenger side of vehicle facing away from the vehicle.)
  • Page 9 LOAD BIKES Push and hold button to open arm. Push and hold button to slide hooks up.
  • Page 10 Load bikes. Heaviest bike closest to car. Adjust wheel tray if necessary. Tighten wheeltray knob. NOTE: Position arms at ‘‘10:00’’ and ‘‘2:00’’ without contacting bike frame components.
  • Page 11 Press hooks down onto tires. Once the hook contacts the tire, fi rmly press the hook down until you hear 1 additional click. Ensure the tires are properly infl ated and in good condition. NOTE: For rear fender, 20’’ bikes, bikes over 50 lbs, wheel straps should be used in the «A»...
  • Page 12 To lock bikes press and hold button, pull out lock shank. Be sure lock is in unlock position before inserting lock shank. To return cable press and hold button.
  • Page 13 Thread Wheel Strap from bottom through strap slot. Click strap into place. Use Strap to secure rear wheel to tray.
  • Page 14 HATCH ACCESS Pull handle, tilt rack away from vehicle. Caution: hold bikes with available hand.
  • Page 15 Access Hatch.
  • Page 16 Push rack into place, you will hear audible “click” when in place.
  • Page 17 RACK STORAGE Pull hande, Fold up rack toward vehicle...
  • Page 18 CAUTIONS: • All requirements for compatability/fit as stated in the current Saris vehicle/carrier compatability guide must be followed. (Available at any Saris dealer). If your vehicle is not listed or you have any questions, please call our customer service. •...
  • Page 19 Warning and Disclaimer: This carrier has been designed to carry bicycles on specific vehicles. Before installation, user must read and follow current Saris Fit Guide (available through Saris dealer) recommen- dations and enclosed instructions. Fit recommendations are based on vehicle’s standard features; optional features may affect the fit recommendations. User must attach carrier correctly to the vehicle, check its attachment before each use, and inspect carrier parts for wear.
