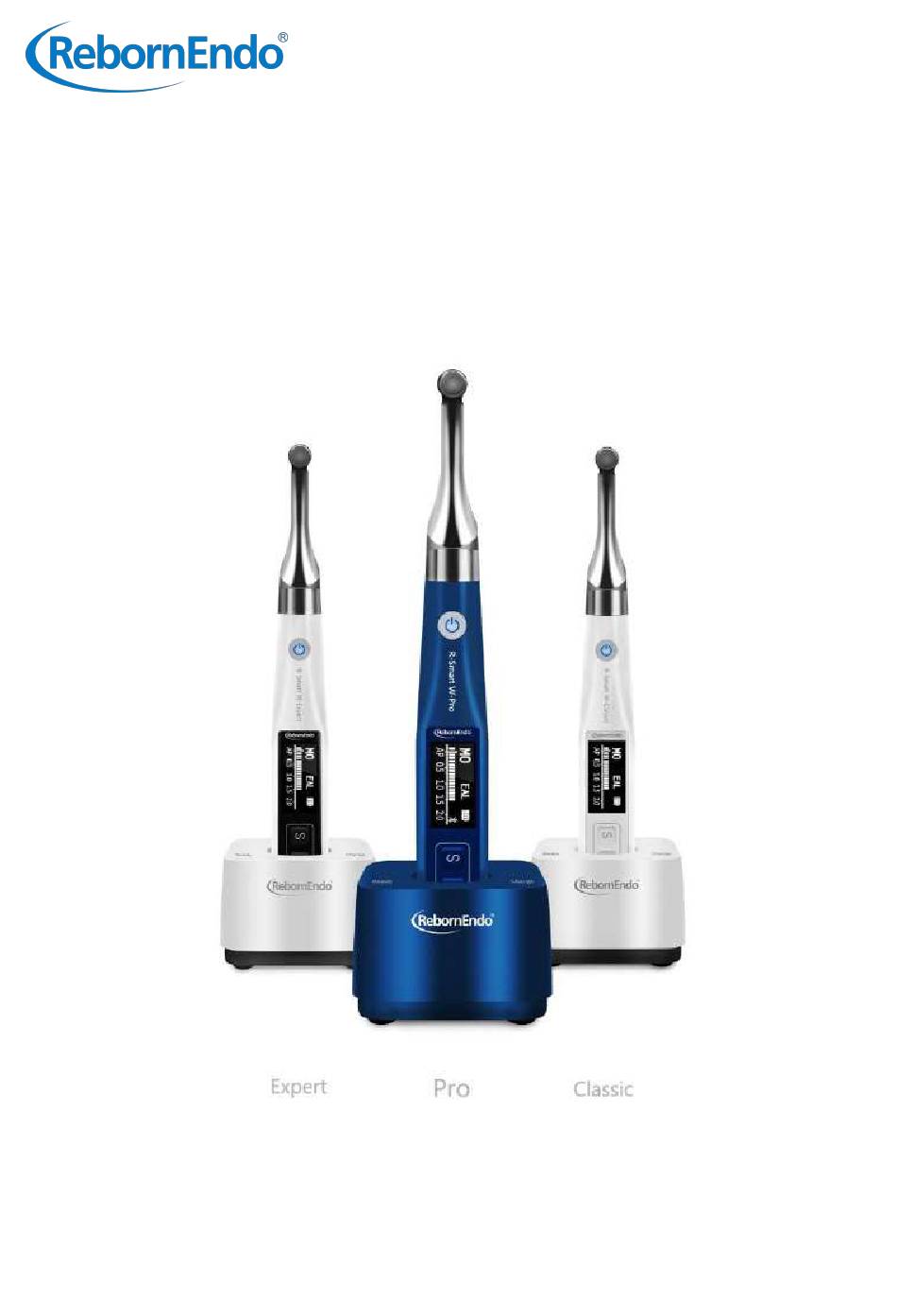

- Page 1 Multifunctional Endo Motor Instruction Manual Guangzhou RebornEndo Medical Instrument Co., Ltd. https://stomshop.pro/...
- Page 2 Thank you for purchasing Multifunctional Endo Motor. If you encounter any questions or problems while reading this manual, please contact the device manufacturer immediately. Please read this manual before operating, and keep this manual for future reference. As the manufacturer of this device,Guangzhou RebornEndo Medical Instrument Co., Ltd.
-
Page 3: Table Of Contents
Contents 1 Product Description .................... 5 1.1 Preface ......................5 1.2 Product Introduction ................5 1.3 Model and Specification ................6 1.4 Performance and composition ..............6 1.5 Scope Of Application ................6 1.6 Contraindications ..................6 1.7 Warning ....................6 1.8 Instrument Safety Classification ..............7 1.9 The Main Technical Parameters .............. - Page 4 5.2.2 Preset file-parameter mode ............27 5.2.3 Advanced mode setting ............27 5.3 After Use ....................29 5.3.1 Regular Inspection ..............29 5.3.2 Maintenance ................30 6 Troubleshooting ....................33 7 Safety precautions .....................35 https://stomshop.pro/...
-
Page 5: Product Description
The main features of the devices are: Features Models Cordless portable endo motor R-Smart Pro、R-Smart Expert、R-Smart Classic、 with combined length R-Smart W-Pro、 R-Smart W-Expert、 R-Smart W-Classic determination. Intelligent matrix R-Smart Pro、R-Smart Expert、R-Smart Classic、 anti-interference apex R-Smart W-Pro、 R-Smart W-Expert、 R-Smart W-Classic locating algorithm. -
Page 6: Model And Specification
1.3 Model and Specification R-Smart Pro、R-Smart Expert、R-Smart Classic：Wired charging, the device can be charged through electric contact. R-Smart W-Pro、R-Smart W-Expert、R-Smart W-Classic：Wireless charging, the device can be charged through an induction coil. Product Size ： 27.5mm*29.1mm*202.1mm. Product Weight ： 158.3g. 1.4 Performance and composition The device is composed of charging base, motor handpiece, contra angle, measuring wire, lip hook, file clip, power adapter, etc. -
Page 7: Instrument Safety Classification
mixtures. 1.7.6 Do not immerse it in liquid. 1.7.7 Only suitable for original accessories. 1.7.8 Please use original power adapter. Other power adapter will result in damage to lithium battery and control circuit. 1.7.9 Do not use damaged or defective instruments. 1.7.10 Do not carry out any repairs or modifications without authorization. -
Page 8: Functional Overview
matching length of 9mm, and a maximum total length of the bur 33mm. The gear ratio is 16:1. 1.9.7 Environment parameters: 1 ） Environment temperature: 0 ～ 40℃ 2 ） Relative Humidity:10 ～ 85%RH 3 ） Atmospheric pressure:70kPa ～ 106kPa 2 Functional Overview This device provides root canal enlargement and root canal length measurement functions for root canal treatment. -
Page 9: Optimum Torque Reverse Function（Otr
Optimum Glide Path Function （ OGP） (only available for R-Smart Pro、 R-Smart W-Pro）： A Motion: 180°clockwise, and then 180°anti-clockwise reverse rotation. B Motion: 180°clockwise, and then 270°anti-clockwise reverse rotation. Repeat the watch-winding (A) motion and balanced force (B) motion. OGP can be setted the status (ON/OFF) in REC mode. If the OGP function is the ‘ON’... -
Page 10: Memory Mode
OTR can be setted the status (ON/OFF) in ATC mode. If the OTR function is the ‘ON’ status,the instrument operates according to the motion mode of OTR mentioned above.In this case, the instrument can not set the forward and reverse rotation angles. If the OTR function is the ‘OFF’status,the instrument can set the forward and reverse rotation angles. - Page 11 The 7 preset file-parameter modes are used to store file parameters of main brands by a cloud storage system, which is convenient for users to call parameters store according to their needs. The mode of R-Smart Expert、R-Smart W-Expert Default Memory...
- Page 12 Making a glide path for a Treatment of complex canal complex canal Canal shaping for a Treatment of complex canal complex canal Injection solutions such as Injection solutions calcium hydroxide, etc Preparation with one file Preparation with one file AIC automatic intelligent Full Automatic mode —...
-
Page 13: Sgp（T-Mode
AIC is only available for R-Smart Pro、 R-Smart W-Pro、 R-Smart Expert 、 R-Smart W-Expert ： The AIC function is a Full Automatic mode. It built in a set of AIC automatic intelligent adaptive system algorithm. It does not need any parameter settings. -
Page 14: The Way To Call Parameters Of Removing Broken File
The way to call preset parameters of endo file in R-Smart Expert/ W-Expert、 R-Smart Classic/ W-Classic is similar with the above explains. 2.2.5 The way to call parameters of removing broken file RBF is only available for R-Smart Pro、... - Page 15 https://stomshop.pro/...
-
Page 16: Symbol Instruction
3 Symbol instruction Volume Switching button Modulation Registered trademark Indoor Use Only Cautions! Refer to Direct Current attached documents B type applied Class II Equipment part Retrieve Keep Dry Humidity limit for Fragile products storage: 0% ~ Temperature limit Atmospheric pressure for for storage: 10°C storage: 70kPa—106kPa ~ +50°C... -
Page 17: Parts Identification And Display Screens
4 Parts Identification and Display Screens 4.1 Parts Identification 4.2 Components and Accessories motor handpiece Contra Angle Silicone sleeve Battery lip hook Probe File Clip Measuring wire Oil filling nozzle 5 Operation 5.1 Before Use 5.1.1 Product Installation a）Installation of Contra Angle Align any locating pin of the contra-angle with the positioning slot on the motor handpiece and push the contra-angle horizontally. - Page 18 b）Installation of file Before starting the device, plug the file into the hole of contra angle head. Hold down the push button on the contra angle and insert the file. Turn the file back and forth until it is lined up with interior latch groove and slips into place. Release the button to lock the file into the contra angle.
-
Page 19: Calibration
charging the motor handpiece. When the battery is fully charged, the Charge LED (orange) goes out and the Ready LED (green) will light up. 5.1.2 Calibration Calibration is automatically performed from 100 to 1,000 r/min.After calibration, operator can press the main switch key or wait for several second, and then the instrument will automatically return to the standby screen. - Page 20 Switching memory mode When switching to the required memory mode, It can stay for several seconds ( according to the habit of the operator) or press the main switch key to confirm the memory mode of the current interface. Set the parameters of memory mode The parameters of the instrument can be set in the case of no load condition.The parameters including speed, torque, forward rotation angle, reverse rotation angle, apical action, etc.
- Page 21 It can switch the parameter setting by pressing S key.Parameter categories are as follows: Parameter Display screen Parameter setting category Five operation modes used for Endo Motor for preparation and apex locating： Operation Mode EAL、CW、CCW、REC、ATC CW、CCW：100~1000 rpm Speed REC、 ATC/AIC：100~500 rpm CW：0.4~5.0 N.cm CCW：0.4~5.0 N.cm Torque...
- Page 22 Starting the working state After the parameter setting is completed, the equipment will automatically enter the standby working state. At this time, the equipment motor will work by pressing the main key on the host. The equipment motor also can work by opening the auto start function, while it is in the state of endo preparation accompany with apex locating.At this time, once the endo file get into the root canal, it will automatically rotate.
- Page 23 At the same time, the advanced mode setting also provides the MAC address of the Bluetooth function of the device.It is convenient for other devices to identify the physical address when searching the Bluetooth connection of the device. Apex Locating function * Only Apex Locating function: Either socket of * M0 is the Apex Locating mode the measuring wire can be connected with...
- Page 24 Endo preparation accompany with apex locating function When using motor combined canal measurement function, the measuring wire must be connecting with motor handpiece by USB socket, and white socket connects with patient’s lip by lip hook, keep the black socket idle. The canal length indicator bar will show on the screen.Setting parameters of automatic functions as needed, such as Apical Action, Auto Start, etc.
- Page 25 The automatic start function is on: When the root canal file enters the root canal, the motor starts automatically. The automatic start function is off: when the root canal file enters the root canal, the motor will not start. At this time, the main switch can only be used to start and stop the motor.
- Page 26 Root Canals not suitable for Electric Measurement https://stomshop.pro/...
-
Page 27: Preset File-Parameter Mode
The operation of calling preset file-parameter can be refered to chapter 2.2.1 & 2.2.4 of this manual. 5.2.3 Advanced mode setting The method to enter the advanced mode setting is as follows ： (only available for R-Smart Pro 、 R-Smart W-Pro 、 R-Smart Expert R-Smart 、 W-Expert) https://stomshop.pro/... - Page 28 Press the S key in sequence to alternately display different advanced setting function interfaces: Advanced Interface style Function description setting function The software version number is displayed on the advanced settings page： Software Version R-Smart P-X0.Y0.Z0.A01 Please contact the manufacturer for a version upgrade.
-
Page 29: After Use
5.3 After Use 5.3.1 Regular Inspection Maintenance and inspection are generally consider to be the duty and obligation of the user, but if, for some reason, the user is unable to carry out these duties, they may be performed by the accredited service personnel. Contact your local dealer or RebornEndo for details. -
Page 30: Maintenance
5.3.2 Maintenance Parts of this equipment that are exposed/frequently in contact with patients need to be cleaned and sterilized by high temperature and high pressure from time to time according to the frequency of use. Items that need key maintenance include: handpiece, file clip, lip hook, probe, , etc. - Page 31 Disinfection Ⅰ Wipe the components with a piece of gauze that has been dampended with Ethanol for disinfection(Ethanol 70 to 80 vol%）and wrung out thoroughly. Disinfection must be performed no later than 2 hours after the cleaning phase. Automated disinfection is preferred if conditions permit. Operation Warning: 1.
- Page 32 Lubrication Only the contra angle needs to be lubricated. Stand the contra angle Screw the nozzle onto the Cover the contra angle up on a piece of gauze to spray can.Then insert it into with a piece of gauze or allow excess the connection end of the...
-
Page 33: Troubleshooting
Other parts of the device that aren’t directly exposed or frequently contact the patient need to be sterilized according to the frequency of use. These accessories that only require disinfection and maintenance which include: motor handpiece, power adapters and charging bases, measurement wire, etc. Ⅱ... - Page 34 Failure Possible cause Solutions 1 Increase the setting torque. 1 The load of the file is greater than the set torque limit. 2 Connect the file clip plug 2 when using the mode of endo into the socket (black) on the The motor preparation accompany with apex measuring wire.
-
Page 35: Safety Precautions
Failure Possible cause Solutions direction 2 Whether the apical action is set to 2 Set apical action to off or automatically reverse mode stop 3 Whether the instrument is set to 3 Set the equipment to a CCW mode mode other than CCW 1 Whether the torque value is set 1 Decrease the torque value too large... - Page 36 1) There are portable or removable RF transmitters around. 2) Electromagnetic interference may cause the device to operate abnormally. 7.5 As with all electronic devices, this equipment has electromagnetic interference and should not be used on patients with pacemakers or other implanted electronic devices.
- Page 37 7.20 Before each use, please check the equipment, if there is any damage to the equipment, do not use it. Continued use of damaged equipment may result in personal injury, adverse consequences, or serious hazards. 7.21 When charging or using, do not touch the charging port, battery and patient at the same time.
