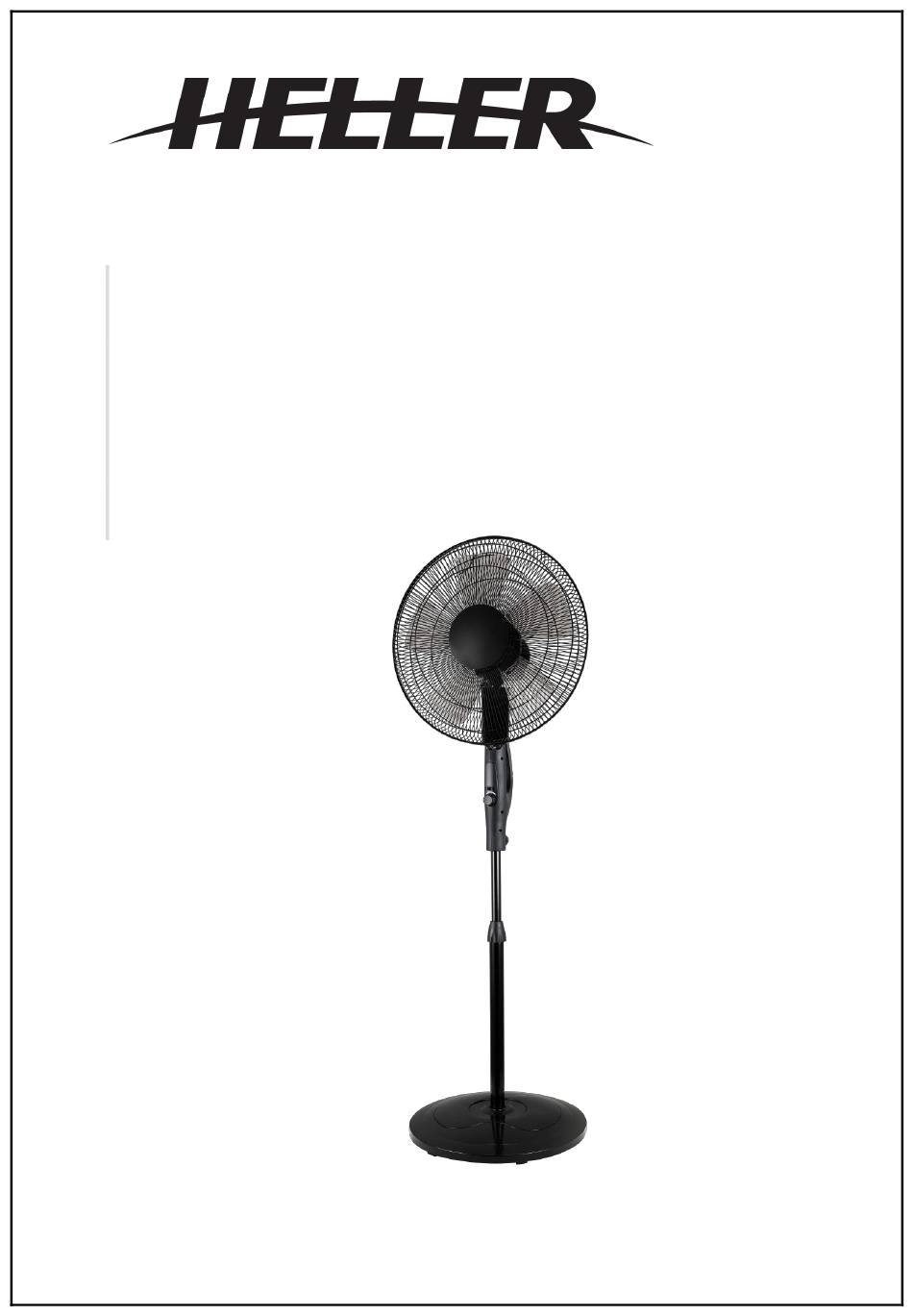

- Page 1 Instruction Manual 40cm DC Motor Pedestal Model: HDCF16 READ AND SAVE THESE INSTRUCTIONS...
-
Page 2: Important Safeguards
Please read and follow the instructions in this user manual even if you feel you are familiar with the product, and find a place to keep it handy for future reference. For your convenience record the complete model number (located on the product identification plate) and the date you received the product, together with your purchase receipt and attach to the warranty and service information. - Page 3 • Do not plug this unit into an extension lead, double adaptor or power board. • Do not use the appliance for other than its intended use. • Do not use outdoors. FOR INDOOR USE ONLY. • This unit is not intended for use in bathrooms, laundry areas or similar moist indoor locations. Never locate the unit where it may fall into a bathtub, sink or any other water container.
- Page 4 SAVE THESE INSTRUCTIONS FEATURES 1. FRONT GUARD 2. BLADE NUT 3. BLADE 4. GUARD MOUNTING NUT 5. BACK GUARD 6. CRANKSHAFT 7. MOTOR HOUSING 8. OSCILLATION KNOB 9. PITCHING 10. SPEED INDICATOR 11. ON/OFF AND SPEED CONTROL 12. COVER FOR ADJUSTABLE POLE 13.
-
Page 5: Locking Nut
Assembly Instructions Installation of the Standing pole and the base: insert the pole into the hole of the base,then fasten the screws on the base. （14-18） Loosen the height adjustable ring and extend the support pole to your desired height. Retighten the height adjustment ring to prevent slipping, then place the fan assembly onto the pole and tighten the pole screw manually. - Page 6 The groove in the centre of the fan blade aligns with a T-bar on the motor shaft to ensure correct positioning. Fix the blade into place by gently hand tightening the spinner (Fig. 2) anticlockwise onto the end of the motor shaft.
-
Page 7: Before First Use
Before First Use Before use, remove all packaging and inspect the appliance for any damage. If there appears to be any damage, please take the unit back to place of purchase for a replacement. Operating Instructions Before inserting the plug into a power outlet, make sure that the correct voltage being used corresponds to what is indicated on the rating label, and that the socket has an earth facility. -
Page 8: Care And Cleaning
• Never spray the Pedestal Fan with liquids or submerge it in water or any other liquid. NOTE: If the power cord set of this appliance becomes damaged, discontinue use. Repairs should be undertaken only by a qualified technician. Specifications Model Description Voltage Frequency Wattage HDCF16 40cm DC Motor Pedestal Fan 220-240V~ 50Hz... - Page 9 Australian Customer Service GAF Control (Sales) Pty Ltd P.O Box 19 Altona North Victoria 3025 Phone: 1300 659 489 Hours: 9am-5pm (EST) Mon-Fri www.gafcontrol.com.au *This product may vary slightly to the product illustrated due to ongoing product development.
