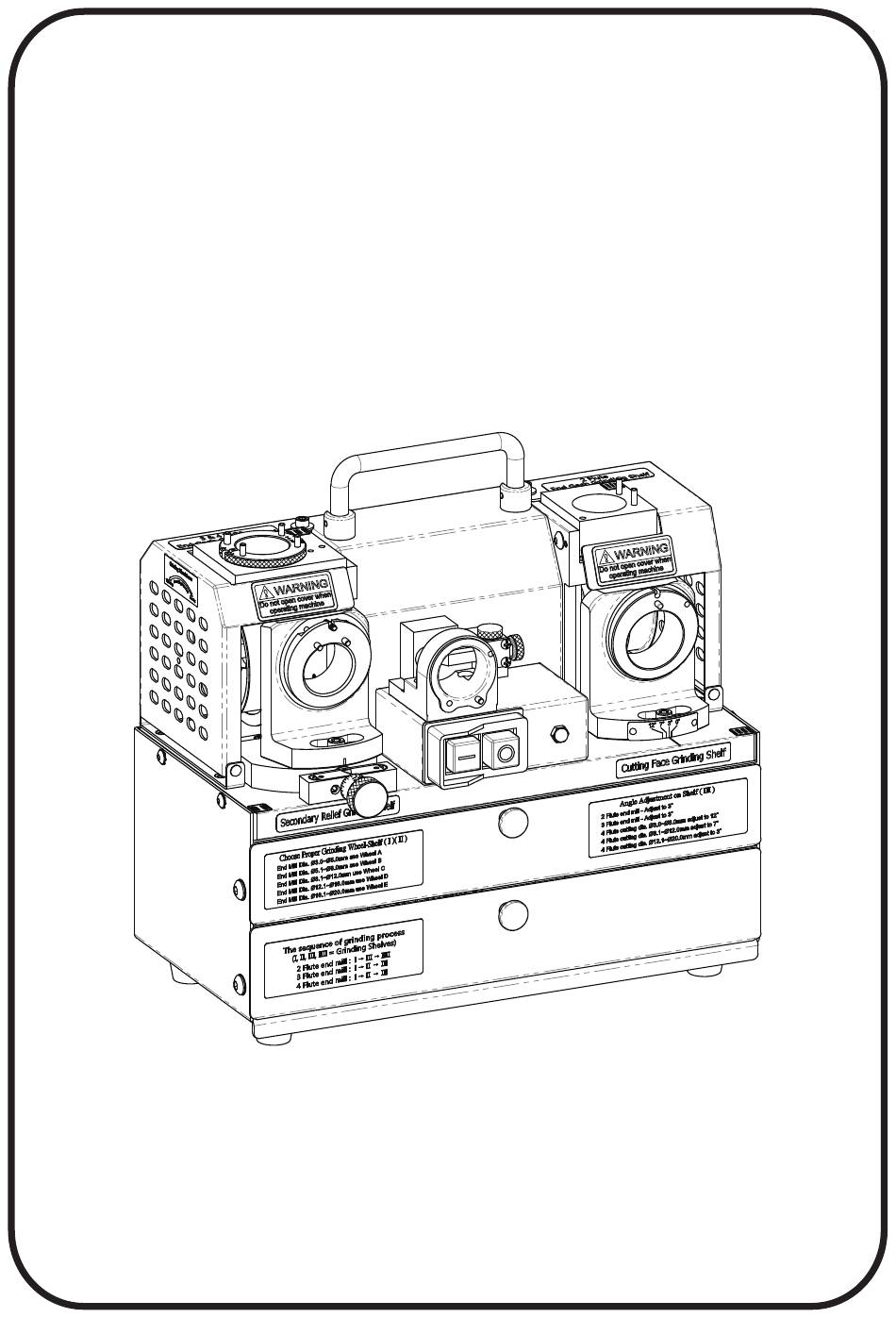

- Page 1 End Mill Grinder Operation Manual Model : GS-76...
- Page 2 RECYCLING Do not dispose of electrical appliances as unsorted municipal waste, use separate collection facilities. Contact your local government for information regarding the collection systems available. If electrical appliances are disposed of in landfills or dumps, hazardous substances can leak into the groundwater and get into the food chain, damaging your health and well-being.
-
Page 3: Table Of Contents
Index Safety Instructions .................. 2 Intended Use ................... 6 III. Machine Installation Instruction ............. 6 Machine Devices Introduction..............7 Dust Collection Adapter Assembly Steps ..........8 VI. Choose of Grinding Wheel & Accessories & Collet ......9 VII. Chuck Set Assembly Steps ..............9 VIII. -
Page 4: Safety Instructions
I. Safety Instructions All personnel working with the machine must be properly trained in its operation, and must follow strictly on the operating instructions and procedures given in this and all associated manuals. The machine may only be operated by persons who are authorized and trained. The user of the machine must not remove, modify or obscure in any way the content or the readability of any safety label placed on or inside the machine. - Page 5 ● Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock. ● Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.
- Page 6 ● Never stand on tool. Serious injury could occur if the tool is tipped or if the cutting tool is unintentionally contacted. ● Never leave tool running unattended. Turn power off. Don't leave tool until it comes to a complete stop. Power tool use and care Do not force the power tool.
- Page 7 ● Please use the air spray gun and duster to clean all sharpened dusts from the machine after finishing the grinding job. ● Direction of feed. Feed work into a blade or cutter against the direction of rotation of the blade or cutter only. Service Have your power tool serviced by a qualified repair person using only identical ●...
-
Page 8: Intended Use
II. Intended Use This grinding machine is suitable for grinding and sharpening 2 flutes, 3 flutes and 4 flutes HSS / carbide end mill. 2 Flutes 3 Flutes 4 Flutes III. Machine Installation Instruction Environmental Condition ● Place the machine on a “flat” and “stable” working table. ●... -
Page 9: Machine Devices Introduction
IV. Machine Devices Introduction 3 & 4 Flute End Gash Bushing Handle 2 Flute End Gash Grinding Shelf (IIII) 3 & 4 Flute End Gash Grinding Shelf (II) Warning Sign Warning Sign Cutting Face Grinding Shelf (III) Adjustable Pin Angle Indicator Secondary Relief Grinding Shelf (I) Switch... -
Page 10: Dust Collection Adapter Assembly Steps
V. Dust Collection Adapter Assembly Steps Thread the hex nut onto the suitable position of the threaded rod, align the end of the threaded rod containing the hex nut to the tapped hole of grinding wheel cover, and turn the threaded rod clockwise to thread the rod into the grinding wheel cover and tighten lightly. -
Page 11: Choose Of Grinding Wheel & Accessories & Collet
VI. Choose of Grinding Wheel & Accessories & Collet Please unplug the power cord before changing grinding wheel. Choose the proper grinding wheel according to the material of end mill. ● Carbide / Tungsten material end mill use SD grinding wheel (Standard). ●... - Page 12 (continued from previous page) Turn the longer cutting edge of end mill to be parallel to the Slot No.1 of the clamping nut. (Fig. 7-3) 2 Flute End Mill 3 Flute End Mill 4 Flute End Mill Slot No.1 Slot No.1 Slot No.1 Parallel Parallel...
-
Page 13: The Use Of The Positioning Shelf
VIII. The use of the Positioning Shelf Preset the position of the alignment block. (Fig. 8-1) Set screw ① ① Loosen the set screw by counterclockwise. ② Pull out the alignment block to the end. ② End mill positioning (Fig. 8-2) : ①... -
Page 14: The Use Of The Cutting Face Adjustment Device
IX. The use of the Cutting Face Adjustment Device This device is to adjust the width of the cutting face. (Fig. 9-1) Cutting Face width Please turn it to “-” direction to the end then Adjustment Device set to “0”. Fig. -
Page 15: Flute End Mill Grinding Preparations
X. 2 Flute End Mill Grinding Preparations Adjustable Pin Secondary Relief Grinding Shelf (I) (Fig. 10-1) ① Move the adjustable pin on the Shelf (I) from the bottom to top. Shelf (I) ② Adjust the cutting face adjustment device to “0”, after finishing the whole sharpening procedure, then adjust this device according to your needs. -
Page 16: Flute End Mill Grinding Process
XI. 2 Flute End Mill Grinding Process Grinding procedure: I, III, IIII Turn the power switch on and wait about 10 seconds until the motor rotation is stable. Do not hold the end mill shank while grinding, it may affect the grinding accuracy. ※... -
Page 17: Flute End Mill Grinding Preparations
XII. 3 Flute End Mill Grinding Preparations Adjustable Pin Secondary Relief Grinding Shelf (I) (Fig. 12-1) ① Move the adjustable pin on the Shelf (I) from the bottom to top. Shelf (I) ② Adjust the cutting face adjustment device to “0”, after finishing the whole sharpening procedure, then adjust this device according to your needs. -
Page 18: Flute End Mill Grinding Process
XIII. 3 Flute End Mill Grinding Process Grinding procedure: I, II, III Turn the power switch on and wait about 10 seconds until the motor rotation is stable. Do not hold the end mill shank while grinding, it may affect the grinding accuracy. ※... -
Page 19: Flute End Mill Grinding Preparations
XIV. 4 Flute End Mill Grinding Preparations Adjustable Pin Secondary Relief Grinding Shelf (I) (Fig. 14-1) ① Move the adjustable pin on the Shelf (I) from the top to bottom. Shelf (I) ② Adjust the cutting face adjustment device to “0”, after finishing the whole sharpening procedure, then adjust this device according to your needs. -
Page 20: Flute End Mill Grinding Process
XV. 4 Flute End Mill Grinding Process Grinding procedure: I, II, III Turn the power switch on and wait about 10 seconds until the motor rotation is stable. Do not hold the end mill shank while grinding, it may affect the grinding accuracy. ※... -
Page 21: Machine Maintenance And Clean
XVI. Machine Maintenance and Clean Replacement of Grinding Wheel Do not exchange our grinding wheel with other grinding wheel ※ from other supplier! ① Unplug the power cord and make sure the power is off. ② Confirm the screw direction on the grinding wheel cover before Fig. -
Page 22: Troubleshooting
XVII. Troubleshooting End mill is positioned but incorrect result. ● Check the end mill’s cutting edge is clean without scraps / iron ash. ● The outer corner of the end mill’s cutting edge must touch the tip of the alignment block. ●... - Page 23 176L02-2 2020.07...
