Description:
L2+ Managed 24-port 10/100/1000Base-TX (PoE+) + 4-port 10/100/1000Base-TX or
100/1000Base-SFP Combo Ethernet Switch
Overview:
IES24242MPp-S is a new generation, managed, industrial grade, L2+ Gigabit PoE (Power
over Ethernet) switch that provides 24x10/100/1000Base-TX RJ45 ports plus
4x100/1000Base-SFP ports. It provides stable and reliable Ethernet transmission with
high quality design and reliability.
Package Content
⚫
Managed PoE Switch x 1
⚫
Mounting Accessory x 1
⚫
RJ-45 Console Cable x 1
◎
Keep power off during installation
◎
use Antistatic Wrist Strap correctly
◎
Make sure using correct power supply, voltage must match
◎
Make sure enough power supply from PSU that will not overload
◎
Double check the wiring ( +/- ) is correct.
◎
Keep installation dry and clean.
◎
Do not open the chassis

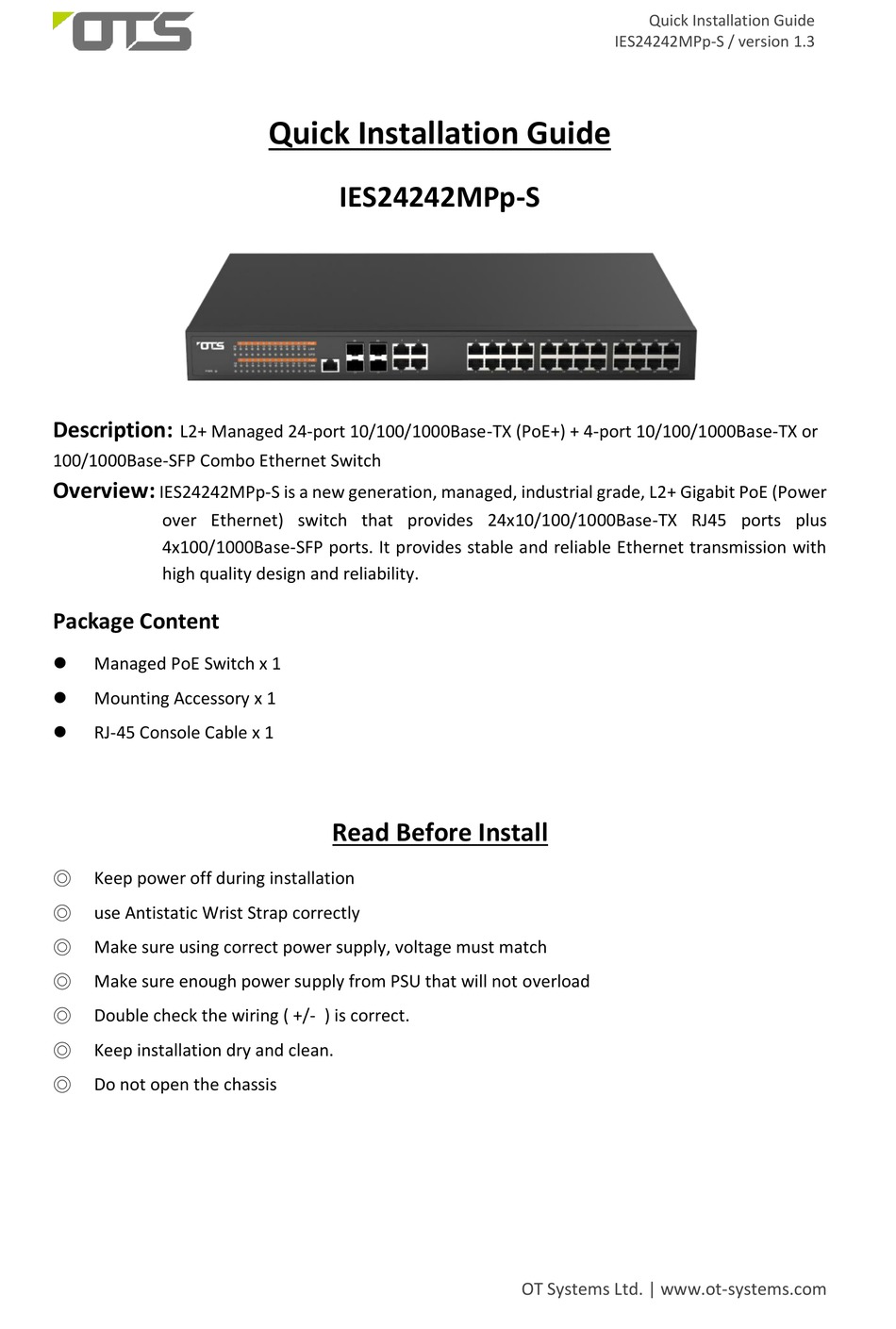

Quick Installation Guide
IES24242MPp-S
Read Before Install
Quick Installation Guide
IES24242MPp-S / version 1.3
OT Systems Ltd. | www.ot-systems.com
Advertisement
Table of Contents
Related Manuals for OT Systems IES24242MPp-S
Summary of Contents for OT Systems IES24242MPp-S
- Page 1 L2+ Managed 24-port 10/100/1000Base-TX (PoE+) + 4-port 10/100/1000Base-TX or 100/1000Base-SFP Combo Ethernet Switch Overview: IES24242MPp-S is a new generation, managed, industrial grade, L2+ Gigabit PoE (Power over Ethernet) switch that provides 24x10/100/1000Base-TX RJ45 ports plus 4x100/1000Base-SFP ports. It provides stable and reliable Ethernet transmission with high quality design and reliability.
-
Page 2: Indicator Light
Quick Installation Guide IES24242MPp-S / version 1.3 Indicator light POE Switch indicator light working information is as follow: Name Color Working Declaration states POWER Power LED Green power normally Don’t have power, power switch doesn’t turn on, power abnormal LINK/ACT... - Page 3 Quick Installation Guide IES24242MPp-S / version 1.3 3. Put PoE switch on the appropriate location of the rack, crutch by bracket; using the L-shaped bracket to fix the two sides of rack with screw, make sure PoE switch is installed on the rack smooth and steady.
- Page 4 Quick Installation Guide IES24242MPp-S / version 1.3 5. Attention When PoE switch is connected to a workstation, server, router, or other Ethernet device, the Ethernet cable length cannot more than 100meter. The Ethernet RJ45 port Auto-MDI/MDIX function default open, when adopt Cat.5 cable to connect Ethernet network, both standard Ethernet cable and crossover Ethernet cable can be used;...
-
Page 5: Device Initialization
General To ensure trouble free transportation and storage, all OT Systems products must be thoroughly inspected, tested and properly packed before delivery. Check the product upon receipt for any visible damage which may have been caused during shipment.
