L2+ Hardened Grade Managed 8-port 10/100/1000Base-TX (PoE+) + 2-port
100/1000Base-SFP Ethernet Switch
Overview:

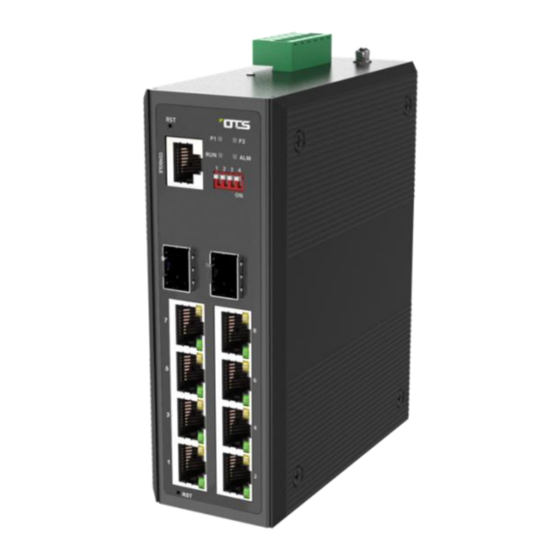

IES8222MPp9H-S-DR is a new generation, managed, industrial grade, L2+ Gigabit PoE++
(Power over Ethernet plus plus) switch that provides 8x10/100/1000Base-TX RJ45 ports
plus 2x100/1000Base-SFP ports. It provides stable and reliable Ethernet transmission
with high quality design and reliability.
Package Content
⚫
Managed PoE Switch x 1
⚫
DIN-Rail Clip x 1
⚫
Quick Installation Guide x 1
◎
Keep power off during installation
◎
use Antistatic Wrist Strap correctly
◎
Make sure using correct power supply, voltage must match
◎
Make sure enough power supply from PSU that will not overload
◎
Double check the wiring ( +/- ) is correct.
◎
Keep installation dry and clean.
◎
Do not open the chassis

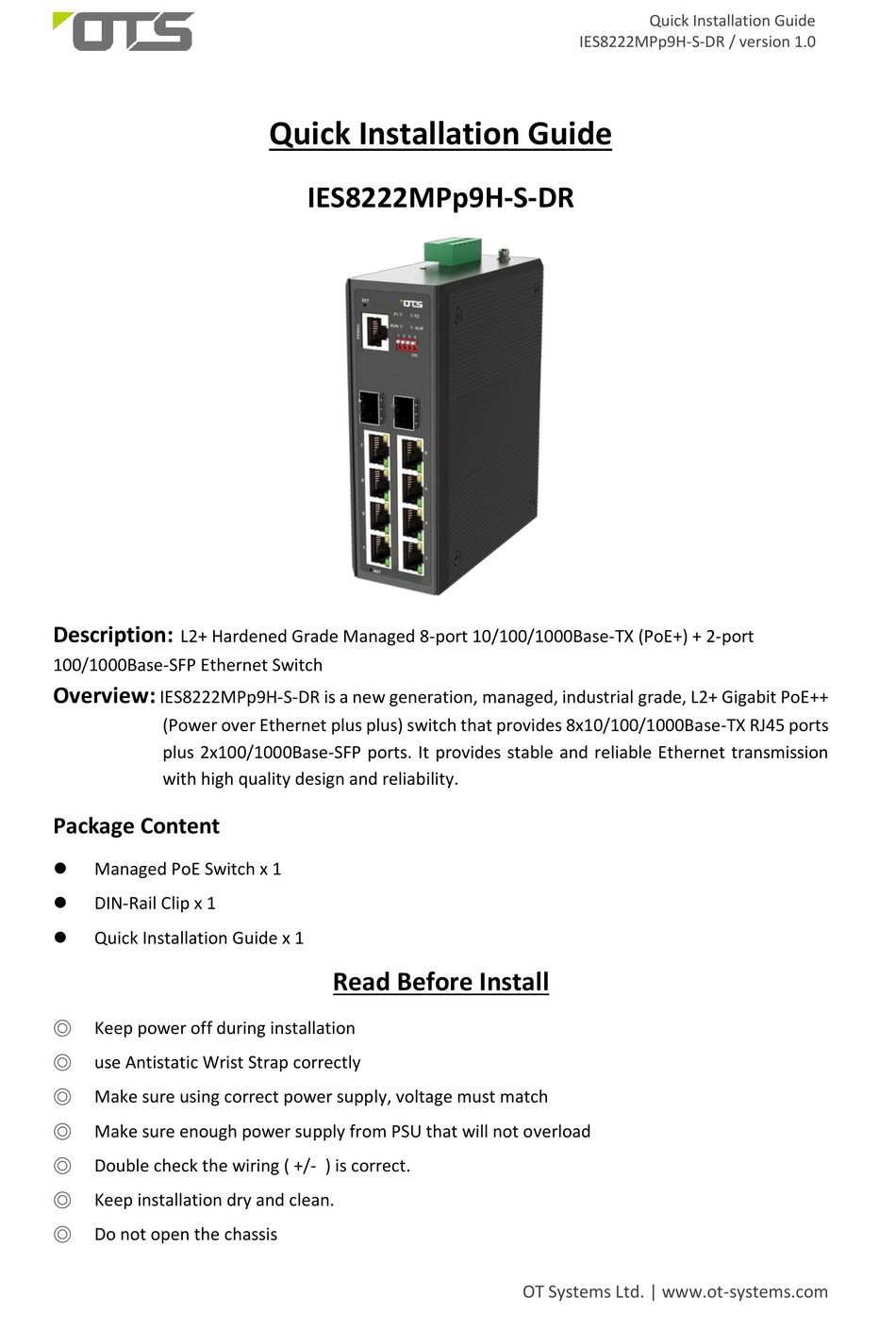

Quick Installation Guide
IES8222MPp9H-S-DR
Read Before Install
Quick Installation Guide
IES8222MPp9H-S-DR / version 1.0
OT Systems Ltd. | www.ot-systems.com
