Summary of Contents for FerrulesDirect FD25P

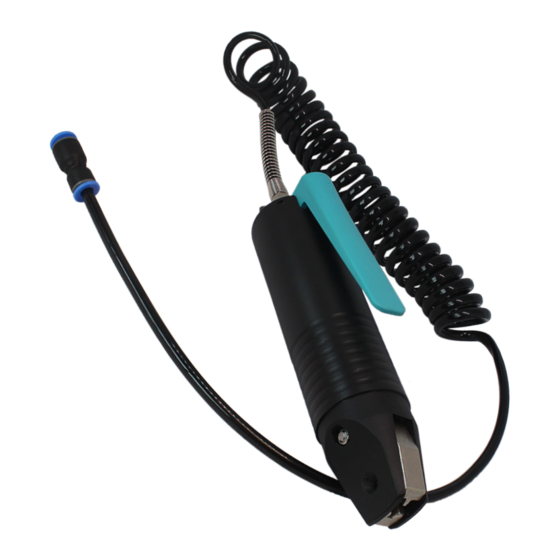

- Page 1 FD25P FD25P Operating Instructions Pneumatic Press Operating Instructions...
- Page 2 Versatile: can be set up in seconds, small form factor for ease of use and storage. • Powerful: With a 5.59T compression force, FD25P can crimp all varieties of wire ferrules including: Insulated, Non-Insulated, Twin Wire, High Temp and Short Circuit Proof.
- Page 3 FD25P Operating Instructions 1.75” 7.375”...
- Page 4 Operating Instructions FD25P Operation 1. Connect the FD25P to your provided air source 2. Insert a wire with ferrule directly in the appropriate slot and depress trigger for one rotation. 3. Frontal slot accomodates 26-18 AWG, lateral: 16-14 AWG Notes (before use): •...
- Page 5 FD25P Operating Instructions 1 Air Tubing 2 Die Set 3 Head 4 Spring 5 Sealing Ring 6 Body 7 Hexagon Screw 8 Pivot Pin...
- Page 6 Do not operate when tired or under the influence of alcohol and intoxicants. • The FD25P is not a toy, if discretion is not used it may lead to personal injury or damage of property. • Inspect before use, do not operate if any parts are missing or damaged.
- Page 7 • Lubricate moving parts every 10,000 crimping cycles by adding a few drops of machine lubricant. • Do not operate the FD25P in high heat, direct sunlight or low temperatures (recomended operating conditions: 59 °C to 95 °F). • When not in use unplug the FD25P and cover all open ports with dust caps.
- Page 8 Find us on social media! Facebook.com/FerrulesDirect Twitter.com/FerrulesDirect Instagram.com/FerrulesDirect Youtube.com/FerrulesDirect Have any Questions? Sales@FerrulesDirect.com (703) 421-2805...
