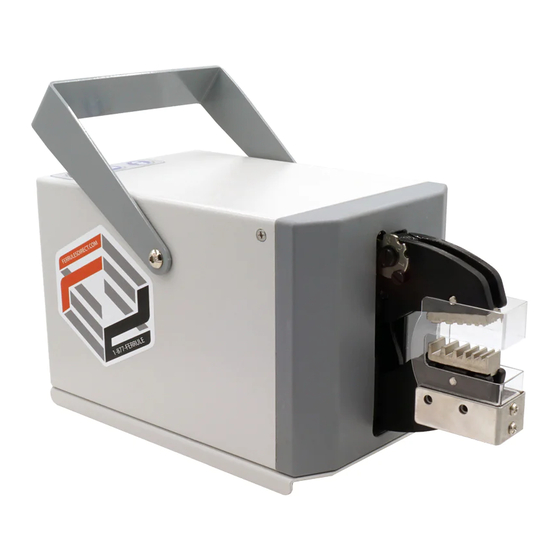

- Page 1 PNU6MM FP100 FD110K Pneumatic Crimping Press Operating Manual...
- Page 2 26 to 01AWG Crimping Guard Plastic guard screwed into the crimping head Port A (Air) 6mm port connecting the FD110K to the air source Port B (Foot Pedal) 6mm port connecting the FD110K to the foot pedal...
- Page 3 • Heavy Duty: A Veritable work horse, the FD110K press is ideal for crimping large quantities of terminals • Light Weight: Weighing only 17.6 lbs. (7.98kg), the FD110K crimping press can easily be transported from one location to another.
- Page 4 WDC2408D FDT10011D Wire Range: ..... 24-08AWG Wire Range: ..... 22-10AWG Profile: ..... Trapezoidal Profile: ......... Oval Connector: ..Single Ferrules Connector: ....Insulated Terminals WDC1004D FDT10014D Wire Range: ..... 12-04AWG Wire Range: ..... 08-06AWG Profile: ..... Trapezoidal Profile: ......... Oval Connector: .....
- Page 5 FDT10051D FDT10060D Wire Range: ..... 14-10AWG Wire Range: ..... 22-10AWG Profile: ......Indent Profile: ......Square Connector: ......Flag Connector: ..... Turned Terminals Contacts FDT10052D FDT1008111D Wire Range: ..... 22-14AWG Wire Range: ..... 6.5-1.7mm Profile: ......Indent Profile: ...... Hexagonal Connector: ..
- Page 6 Replace bolts securing the compatible die set Insert air tubing in Port A and B, connecting the air source and foot pedal The FD110K is now ready to use, while crimping keep your hands clear of the crimping head to prevent personal injury...
- Page 7 • Keep bystanders clear of your turn off the air compressor. workspace during assembly and • Store the FD110K in a dry, cool place operation. and cover it with a suitable blanket to • Do not assemble or operate when avoid dust and possible rust spot.
- Page 8 FIND US ON SOCIAL MEDIA HAVE ANY QUESTIONS? Facebook.com/FerrulesDirect Sales@FerrulesDirect.com Twitter.com/FerrulesDirect (703) 421-2805 Instagram.com/FerrulesDirect Youtube.com/FerrulesDirect...
