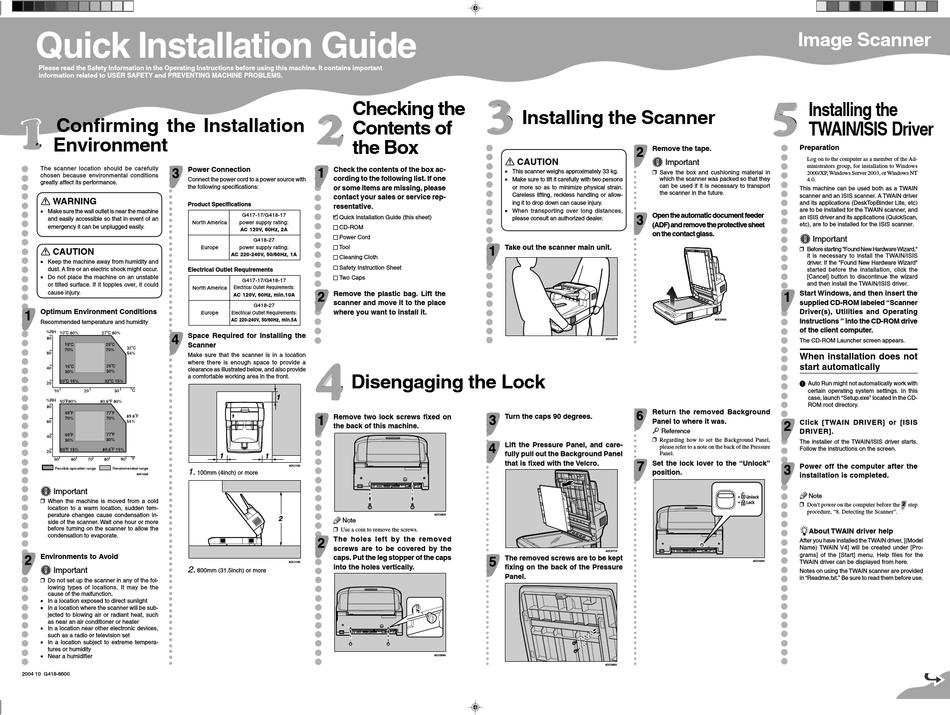

Quick Installation Guide
Please read the Safety Information in the Operating Instructions before using this machine. It contains important
information related to USER SAFETY and PREVENTING MACHINE PROBLEMS.

Confirming the Installation

Environment
The scanner location should be carefully
Power Connection
chosen because environmental conditions
Connect the power cord to a power source with
greatly affect its performance.
the following specifications:
WARNING
Product Specifications
• Make sure the wall outlet is near the machine
and easily accessible so that in event of an
North America
emergency it can be unplugged easily.
Europe
CAUTION
• Keep the machine away from humidity and
dust. A fire or an electric shock might occur.
Electrical Outlet Requirements
• Do not place the machine on an unstable
or tilted surface. If it topples over, it could
North America
cause injury.
Optimum Environment Conditions
Europe
Recommended temperature and humidity
Space Required for Installing the
Scanner
Make sure that the scanner is in a location
where there is enough space to provide a
clearance as illustrated below, and also provide
a comfortable working area in the front.
1 .
100mm (4inch) or more
ADC122S
Important
❒ When the machine is moved from a cold
location to a warm location, sudden tem-
perature changes cause condensation in-
side of the scanner. Wait one hour or more
before turning on the scanner to allow the
condensation to evaporate.
Environments to Avoid
2 .
Important
800mm (31.5inch) or more
❒ Do not set up the scanner in any of the fol-
lowing types of locations. It may be the
cause of the malfunction.
• In a location exposed to direct sunlight
• In a location where the scanner will be sub-
jected to blowing air or radiant heat, such
as near an air conditioner or heater
• In a location near other electronic devices,
such as a radio or television set
• In a location subject to extreme tempera-
tures or humidity
• Near a humidifier
2004 10 G418-8600
Checking the
Contents of
the Box
Check the contents of the box ac-
cording to the following list. If one
or some items are missing, please
contact your sales or service rep-
resentative.
G417-17/G418-17
Quick Installation Guide (this sheet)
power supply rating:
CD-ROM
AC 120V, 60Hz, 2A
Power Cord
G418-27
power supply rating:
Tool
AC 220-240V, 50/60Hz, 1A
Cleaning Cloth
Safety Instruction Sheet
Two Caps
G417-17/G418-17
Electrical Outlet Requirements:
Remove the plastic bag. Lift the
AC 120V, 60Hz, min.10A
scanner and move it to the place
G418-27
where you want to install it.
Electrical Outlet Requirements:
AC 220-240V, 50/60Hz, min.5A
Disengaging the Lock
Remove two lock screws fixed on
the back of this machine.
ADC115S
Note
❒ Use a coin to remove the screws.
The holes left by the removed
screws are to be covered by the
caps. Put the leg stopper of the caps
ADC116S
into the holes vertically.

Installing the Scanner

CAUTION
• This scanner weighs approximately 33 kg.
• Make sure to lift it carefully with two persons
or more so as to minimize physical strain.
Careless lifting, reckless handling or allow-
ing it to drop down can cause injury.
• When transporting over long distances,
please consult an authorized dealer.
Take out the scanner main unit.
ADC057S
Turn the caps 90 degrees.
Lift the Pressure Panel, and care-
fully pull out the Background Panel
that is fixed with the Velcro.
ADC082S
ADC071S
The removed screws are to be kept
fixing on the back of the Pressure
Panel.
ADC084S
ADC086S
Image Scanner
Installing the
TWAIN/ISIS Driver
Preparation
Remove the tape.
Log on to the computer as a member of the Ad-
Important
ministrators group, for installation to Windows
❒ Save the box and cushioning material in
2000/XP, Windows Server 2003, or Windows NT
which the scanner was packed so that they
4.0.
can be used if it is necessary to transport
This machine can be used both as a TWAIN
the scanner in the future.
scanner and an ISIS scanner. A TWAIN driver
and its applications (DeskTopBinder Lite, etc)
are to be installed for the TWAIN scanner, and
Open the automatic document feeder
an ISIS driver and its applications (QuickScan,
(ADF) and remove the protective sheet
etc), are to be installed for the ISIS scanner.
on the contact glass.
Important
❒ Before starting "Found New Hardware Wizard,"
it is necessary to install the TWAIN/ISIS
driver. If the "Found New Hardware Wizard"
started before the installation, click the
[Cancel] button to discontinue the wizard
and then install the TWAIN/ISIS driver.
Start Windows, and then insert the
supplied CD-ROM labeled "Scanner
Driver(s), Utilities and Operating
Instructions " into the CD-ROM drive
ADC058S
of the client computer.
The CD-ROM Launcher screen appears.
When installation does not
start automatically
A Auto Run might not automatically work with
certain operating system settings. In this
case, launch "Setup.exe" located in the CD-
ROM root directory.
Return the removed Background
Panel to where it was.
Click [TWAIN DRIVER] or [ISIS
Reference
DRIVER].
❒ Regarding how to set the Background Panel,
The installer of the TWAIN/ISIS driver starts.
please refer to a note on the back of the Pressure
Follow the instructions on the screen.
Panel.
Set the lock lover to the "Unlock"
Power off the computer after the
position.
installation is completed.
Note
❒ Don't power on the computer before the
procedure, "8. Detecting the Scanner".
About TWAIN driver help
After you have installed the TWAIN driver, [(Model
Name) TWAIN V4] will be created under [Pro-
grams] of the [Start] menu. Help files for the
ADC025S
TWAIN driver can be displayed from here.
Notes on using the TWAIN scanner are provided
in "Readme.txt." Be sure to read them before use.
step
