Kenco KL16K8T18 Operator's Manual

Concrete median barrier handling device

Advertisement

Quick Links

Attachment Solutions
KL16K8T18
Concrete median barrier handling device
Operators Manual
Conforms to ASME B 30.20, BTH-1
Design Category B, Service Class 3

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the KL16K8T18 and is the answer not in the manual?

Questions and answers

Summary of Contents for Kenco KL16K8T18

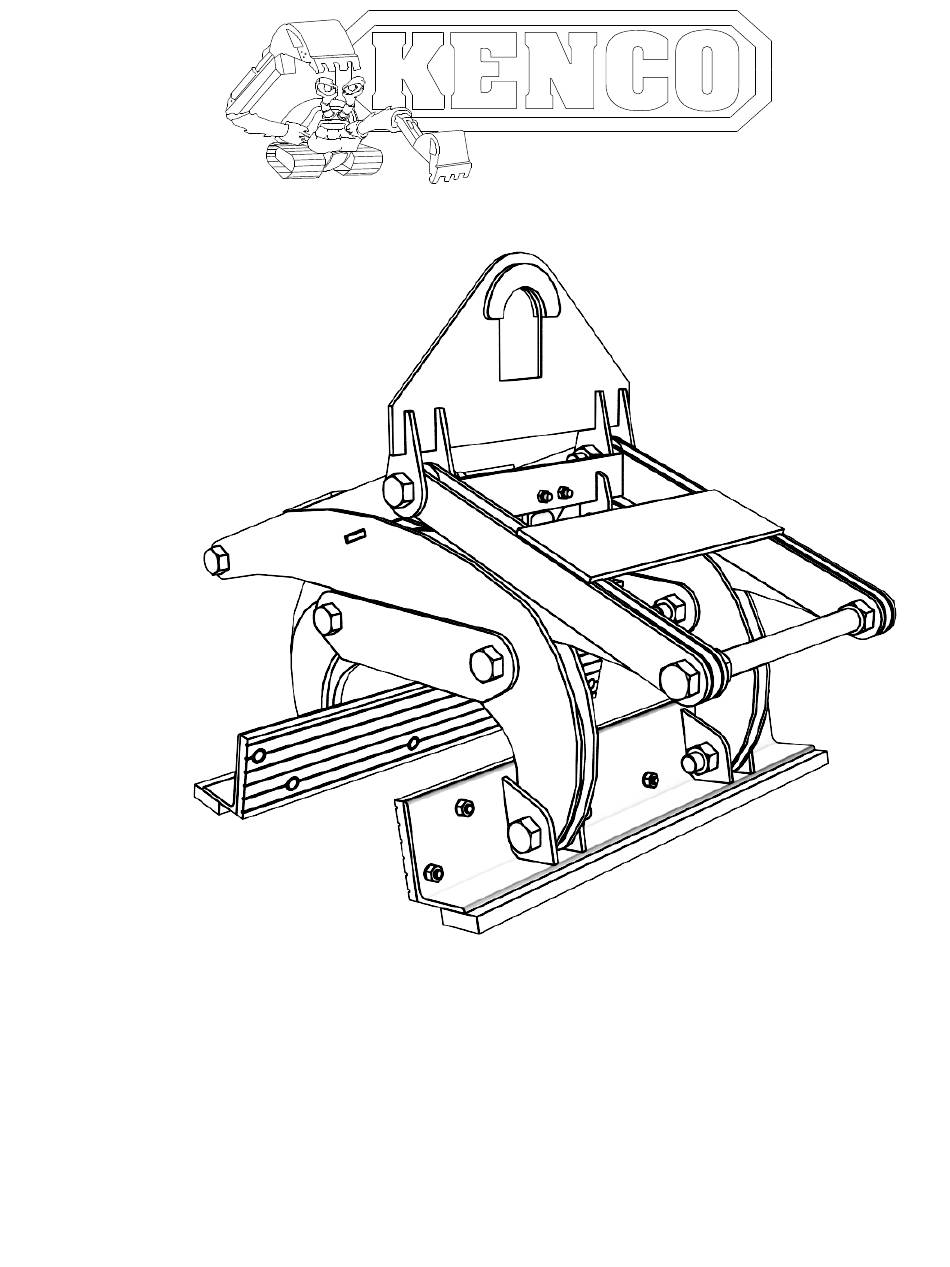

  • Page 1 Attachment Solutions KL16K8T18 Concrete median barrier handling device Operators Manual Conforms to ASME B 30.20, BTH-1 Design Category B, Service Class 3...
  • Page 2: Table Of Contents

    TABLE OF CONTENTS Section I. General Information...................... 1 Section II. Safety..........................1 Section III. Identification of Major Components................3 Section IV. Setup..........................3 Section V. Operation ........................5 Section VI. Maintenance ........................7 Section VII. Inspection Criteria ......................8 Section VIII. Parts/Drawings....................... 9 Section IX.
  • Page 3: General Information

    Section I. General Information ® May we take this opportunity to thank you for purchasing the KENCO KENLIFT ® highway median barrier wall handling system. The KENLIFT System provides the ultimate ® in below the hook concrete highway barrier handling versatility. The KENLIFT is quality engineered to provide years of trouble free, low maintenance performance.
  • Page 4 170 State Route 271 Ligonier, PA 15658 1-800-653-6069 2. Do not wear loose clothing, jewelry, or hairstyles that could become entangled in the KENCO ® KENLIFT or rigging hardware. 3. Keep hands, feet, and any other appendages clear of KENLIFT® while in operation.
  • Page 5: Identification Of Major Components

    Section III. Identification of Major Components LIFT BAIL ACTUATOR (INTERNAL) HANDLE GRIP PAD PAD ANGLE PAD BOLTS PAD ANGLE BOLTS Section IV. Setup ® Check KENLIFT for any signs of damage incurred during shipping. Record model and serial #of assembly and components. Check that all pad bolts are tight.
  • Page 6 4. DO NOT RIG UNPROTECTED NYLON SLINGS OR WIRE ROPE DIRECTLY THROUGH LIFT BAIL. 5. IF USING EQUIPMENT OTHER THAN A CRANE: USE RIGGING OF SUFFICIENT ® LENGTH TO PREVENT CONTACT BETWEEN KENLIFT AND EQUIPMENT. ® KENCO Kenlift Operation Manual...
  • Page 7: Operation

    Section V. Operation ® device ALWAYS Before attempting to use the Kenlift DANGER ! ! ! ! perform a test lift on the intended object(s) to confirm proper ® operation. DO NOT use a Kenlift to handle objects beyond the rated capacity or range. ®...
  • Page 8 ! ! ! ! proportional to and dependent on the weight of the barrier wall. It is for this reason that while in operation the Kenlift and wall NEVER be allowed to contact other items. ® KENCO Kenlift Operation Manual...
  • Page 9: Maintenance

    2. Inspect holes, pins, bolts etc. for wear. See sect VII for criteria. 3. Remove actuator, clean and lubricate with light penetrating oil – check for signs of wear, replace if necessary. * Frequency depends on usage, environmental conditions, etc. ® KENCO Kenlift Operation Manual...
  • Page 10: Section Vii. Inspection Criteria

    Any scarring, chunking, or missing pad material constituting a total combined loss of surface area greater than 3 sq. in. per pad. d. Any single scar, chunk, or missing pad face that is greater than 1 sq. in per pad. ® KENCO Kenlift Operation Manual...
  • Page 11: Section Viii. Parts/Drawings

    Section VIII. Parts/Drawings ® KENCO Kenlift Operation Manual...
  • Page 12 170 State Route 271 Ligonier, PA 15658 1-800-653-6069 ® KENCO Kenlift Operation Manual...
  • Page 13 DANGER DANGER DANGER DANGER DO NOT STAND UNDER OR NEAR WHILE MACHINE IS OPERATING KENCO CORPORATION 877-4ATTACH WARNING MODEL MODEL MODEL MODEL Read and understand operator’s manual before USAGE USAGE USAGE USAGE using this equipment. Failure to follow operating CAPACITY...
  • Page 14 .5 X 1.5 BOLT 1.25 X 4 BOLT 1.25 x 5 BOLT 1.25 NUT 1.25 FLAT WASHER .5 NUT .5 STAR INTERNAL .5 LOCK WASHER DANGER STICKER IDTAG BTH TAG LG. WARNING STICKER SM. WARNING STICKER ID STICKER ® KENCO Kenlift Operation Manual...
  • Page 15: Warranty

    1. KENCO Corporation (KENCO) warrants the KENCO KENLIFT lifting device (not including pads or consumable items) sold by KENCO to be free from proven defects in material and workmanship for a period of six (6) months from the delivery date to the original customer.
