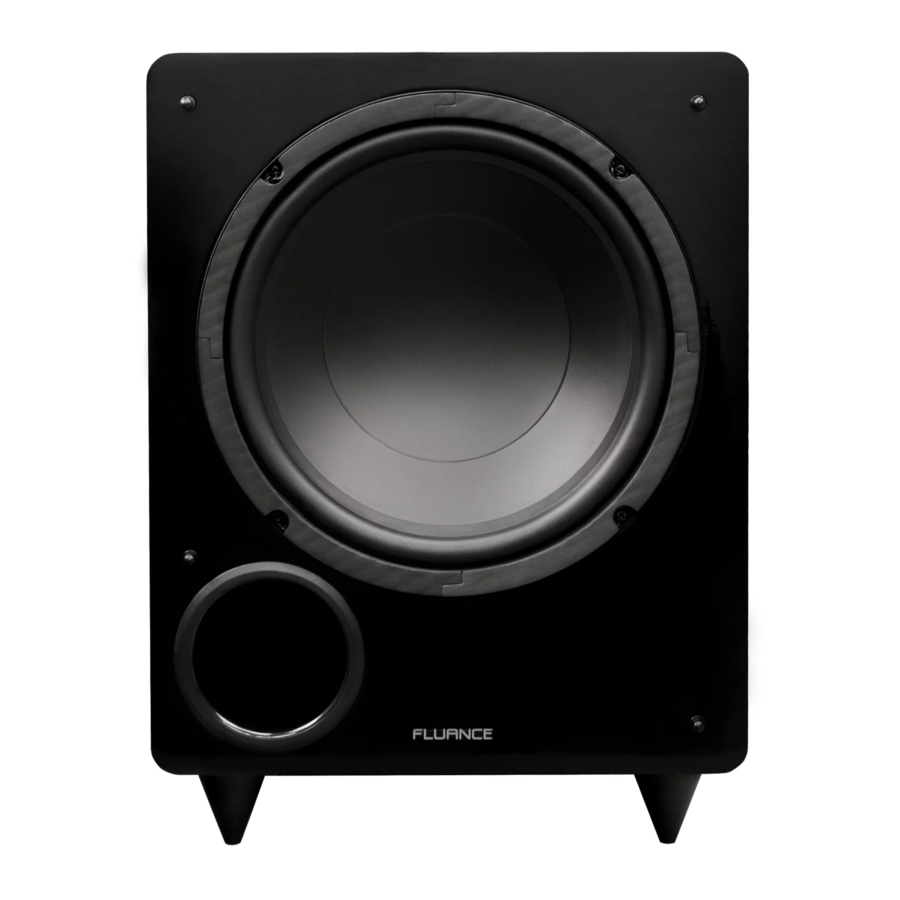

Fluance DB10 - High Performance Subwoofer Manual

Introduction

Thank you for your purchase of this Fluance product. Please read this manual carefully before using the product to ensure proper use. Keep this manual in a safe place for future reference.
fluance.com

What's Included

• High Performance Subwoofer
• Quick Start Guide
• 2 Year Warranty
• Lifetime Customer Support

Back Panel Layout

1. Volume – Adjust to reduce/increase the intensity of the sound emitted from the DB10.
2. PWR - Power LED indicator.
3. Crossover – Adjust to reduce/increase the frequency range of the DB10. The frequency range is less than 40Hz to 180Hz.
4. Power – ON / AUTO / OFF (AUTO: The subwoofer will power on automatically when it detects a signal from the home theater receiver.)
5. Phase – REVERSE / NORMAL (Adjust to ensure the DB10 is in phase with the rest of your speaker system. The DB10 will be in phase if the bass response sounds full and balanced.)
6. LFE / Low Level Input – Connect subwoofer cable to receive signal from home theater receiver.
7. Speaker Inputs – Connect speaker wire to receive signal from home theater receiver.

First Time Setup

Step One
Place the Subwoofer in the most optimal position.

Fluance recommends having the woofer face the listener while being positioned near the front channel speakers in a corner if possible.

Step Two
Attach the Subwoofer Cable to the LFE/LOW Level Input on the backside of the Subwoofer.

Step Three
Attach the same Subwoofer Cable to the Subwoofer Output of your home theater receiver.

Step Four (Optional)
Attach Speaker Wire to the speaker inputs of the Subwoofer. Attach same Speaker Wire to the channel outputs of your choice on the home theater receiver. Refer to receiver manual for setup instructions.

Step Five
Connect the Power Adapter to the wall outlet. Set the Power Switch to either ON or AUTO.

Additional Settings

Crossover Settings

The Volume/Crossover settings can be adjusted with the Volume/Crossover knob located on the back panel of the Subwoofer. The Crossover setting changes the cut off frequency for the Subwoofer.

Auto Setting

By selecting the Auto setting, the Subwoofer will automatically turn on when it detects a signal from the home theater receiver. The auto setting turns the Subwoofer on when the frequency signal reaches a required voltage. A 100Hz signal requires 3mV and a 1KHz signal requires 5mV.

Phase Setting

If your speaker system or DB10 is out of phase, it means that the driver/woofer is moving in the opposite direction of the other drivers/woofers. This causes frequencies to be canceled out, which can result in a poor listening experience. By adjusting the phase setting of the DB10, you can ensure the DB10's woofer is moving in the same direction as your other speakers, which will result in a more pleasant listening experience.

FAQ

What is the purpose of the speaker wire inputs?
The speaker wire inputs can be used as an alternative to connect your DB10 to your home theater receiver, however, Fluance recommends using the LFE/Low Level input connected via subwoofer cable. LFE (Low Frequency Effect) refers to a channel specifically intended for deep, low-pitched sounds ranging from 3-120Hz.

How do I adjust the volume / change the crossover settings?
The volume/crossover settings can be adjusted via the volume/crossover knob located on the back panel of the DB10. The crossover setting changes the cut off frequency for the subwoofer.

What is the auto setting and what are the parameters?|
By selecting the auto setting the DB10 will automatically turn on when it detects a signal from the home theater receiver. The auto setting turns the subwoofer on when the frequency signal reaches a required voltage. A 100Hz signal requires 3mV and a 1KHz signal requires 5mv.

What is the phase setting and what is the optimal setting?
If your speaker system or DB10 is out of phase. It means that the driver/woofer is moving in the opposite direction of the other drivers/woofers. This causes frequencies to be canceled out, which can result in a poor listening experience. By adjusting the phase setting of the DB10, you can ensure the DB10's woofer is moving in the same direction as your other speakers, which will result in a more pleasant listening experience.

What does the LED behavior mean?
Green LED = Power On
Red LED = Protection Mode

What is Protection Mode?
Amplifier Protection Mode is a shutdown state that amplifiers can enable to prevent serious damage to the unit or other components in the system. Protection Mode can be activated in two scenarios:

1. Unit is overheated – Ensure the area surrounding the DB10 is at room temperature, power off and unplug the power adapter.
2. The unit is not installed properly – consult the included quick start guide and manual, ensure no wires are touching.

Troubleshooting

Specifications

Specifications are subject to change without notice. Measurements and weights may vary slightly.
