- Page 1 Technology Into Life User manual （ 20 1 8 . 9 . 1 4 We d n e s d a y ）...
- Page 2 Preface Dear Customers: Thanks for choosing electronic digital lock offered by Kerong Industry(HK) Co., Limited. In order to operate our products more smoothly, we offer this 《User Manual》 for you. Please read it carefully before using and keep it well.
- Page 3 Technology Into Life Chapter One Dimension & introduction..................-1- 1. Product appearance......................... - 1 - 2. Product dimension........................-1- 3. Product installation................错误！未定义书签。 Chapter Two Parameters................错误！未定义书签。 Chapter Three Operation steps..............错误！未定义书签。 3.1 Introduction to lock................. 错误！未定义书签。 3.2 Reset lock....................错误！未定义书签。 3.3 Password....................错误！未定义书签。 3.3.1 Manager password......................-4- 3.3.2 User password........................-5- 3.3.3 Service password.........................-5-...
- Page 4 3.7.4 Set the lock in single key mode....................9 3.7.5 Set the lock in double key mode..................9 3.7.6 Password in double key mode....................9 Chapter Four Additional functions....................9 4.1 Voice prompt..........................9 4.2. Light prompt...........................9 4.3. Low voltage prompt .......................9 4.4. Warning function........................10 4.5.
-
Page 5: Chapter 1 Dimension & Installation

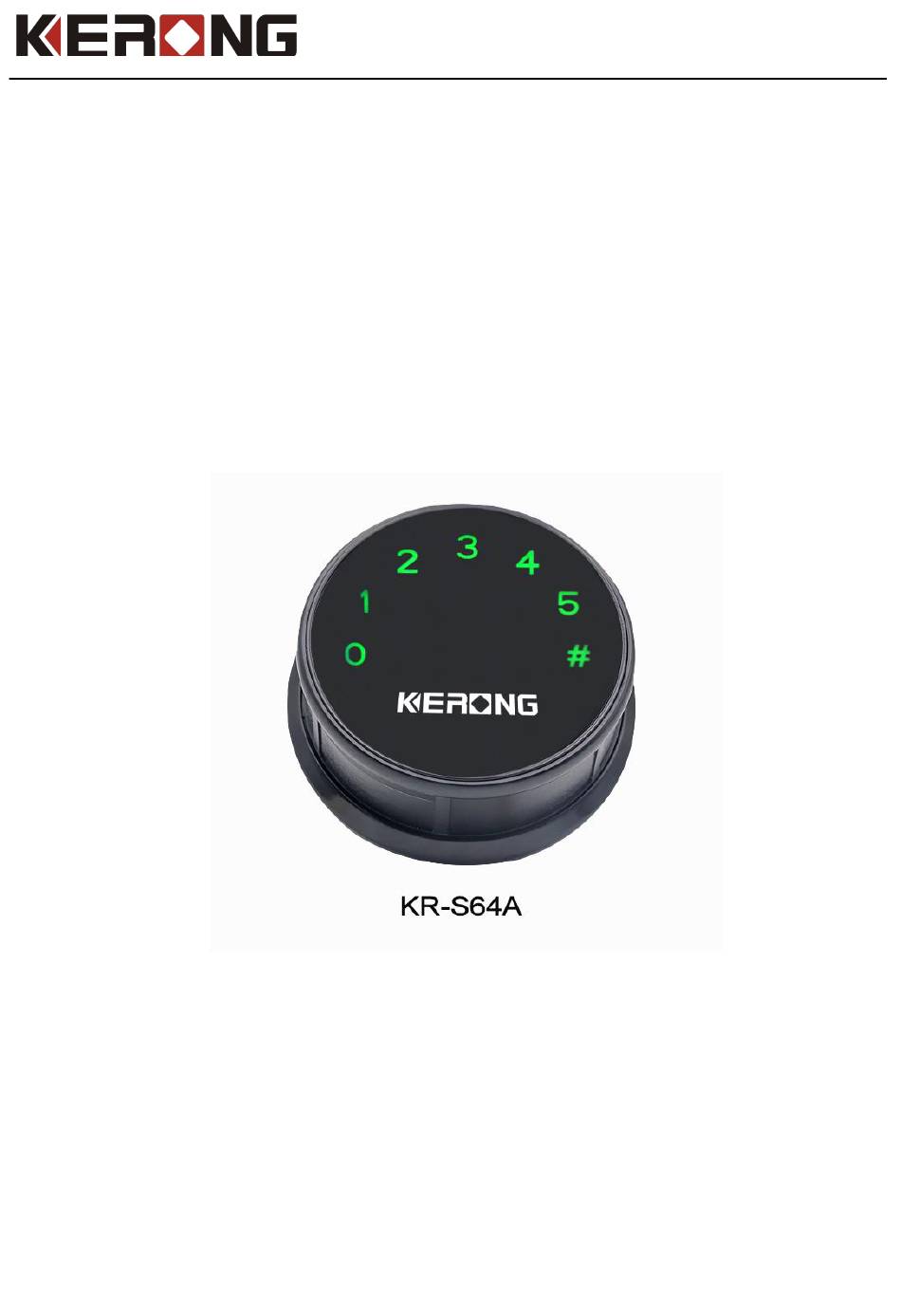

Technology Into Life Chapter 1 Dimension & Installation 1. Product Appearance 2. Product Dimension - 1 -... -
Page 6: Product Installation
3. Product Installation - 2 -... -
Page 7: Chapter 2 Parameters
Chapter 2 Parameters Item Description Material Lock body: ABS+Zinc Alloy, Acrylic touch screen Color Black; white Keypad: Cam: 19(D)*21(L)mm (blade is Size 70.2(D)*25.6(T)mm customized) Weight 180g Digits 7 digits Battery DC 3V (1* button battery CR2032) Driven mode Motor/servo Static power consumption <25 uA Dynamic power <200 mA... -
Page 8: Chapter 3 Operation Steps
Chapter 3 Operation steps 3.1. Introduction to lock 3.1.1. “0, 1, 2, 3, 4, 5 ”are digits for user inputting passwords; # is for confirming what user input. Every time after inputting a password, there should be a # followed. 3.1.2. - Page 9 （Total is: #1#old manager password#new manager password#new manager password#） Eg: Change Manager Password to 55555. Input: #1#012345#55555#555555# 3.3.2. User Password User password is for unlocking. User Password should be 4~8 digits. Default User Password: 0000 To change User Password: Input “#0#”lock will prompt with “di di” and green light blink fast. Then input “old User Password#”, green light will blink slower.
- Page 10 3.4.2. User operation steps Lock is keep unlocking. User A input “any password#” and turn the lock clockwise, lock will be locked. Then User A comes back, input “the same password#” on the same lock and turn it anticlockwise. Lock will be open. User should turn the lock clockwise to close the door(only for closing the door, the lock is still unlocked).
- Page 11 3.5.3. Set the lock in Private mode Input “#2#”lock will prompt with “di di” and green light blink fast. Then input “manager password#”, green light will blink slower. Next input “0#”, lock will prompt with “di” and light blink in green one time.
- Page 12 Input “#2#”lock will prompt with “di di” and green light blink fast. Then input “Manager Password#”, green light will blink slower. Next input “0#”, lock will prompt with “di” and light blink in green one time. Lock is in office mode. （Total is: #2#Manager Password#0#）...
-
Page 13: Chapter 4 Additional Functions
to open the lock. 3.7.4. Set the lock in Double key mode Input “#3#”lock will prompt with “di di” and green light blink fast. Then input “Manager Password#”, green light will blink slower. Next input “1#”, lock will prompt with “di” and light blink in green one time. - Page 14 4.4. Warning function If user keep inputting incorrect password for 5 times, lock will warn with red light blinks for twice and sound “di di”. Then the lock will be locked for 5min, input correct manager code can unlock. During that 5min, when press the button, the lock will prompt with sound as “di di di di di” and red light blinks.
