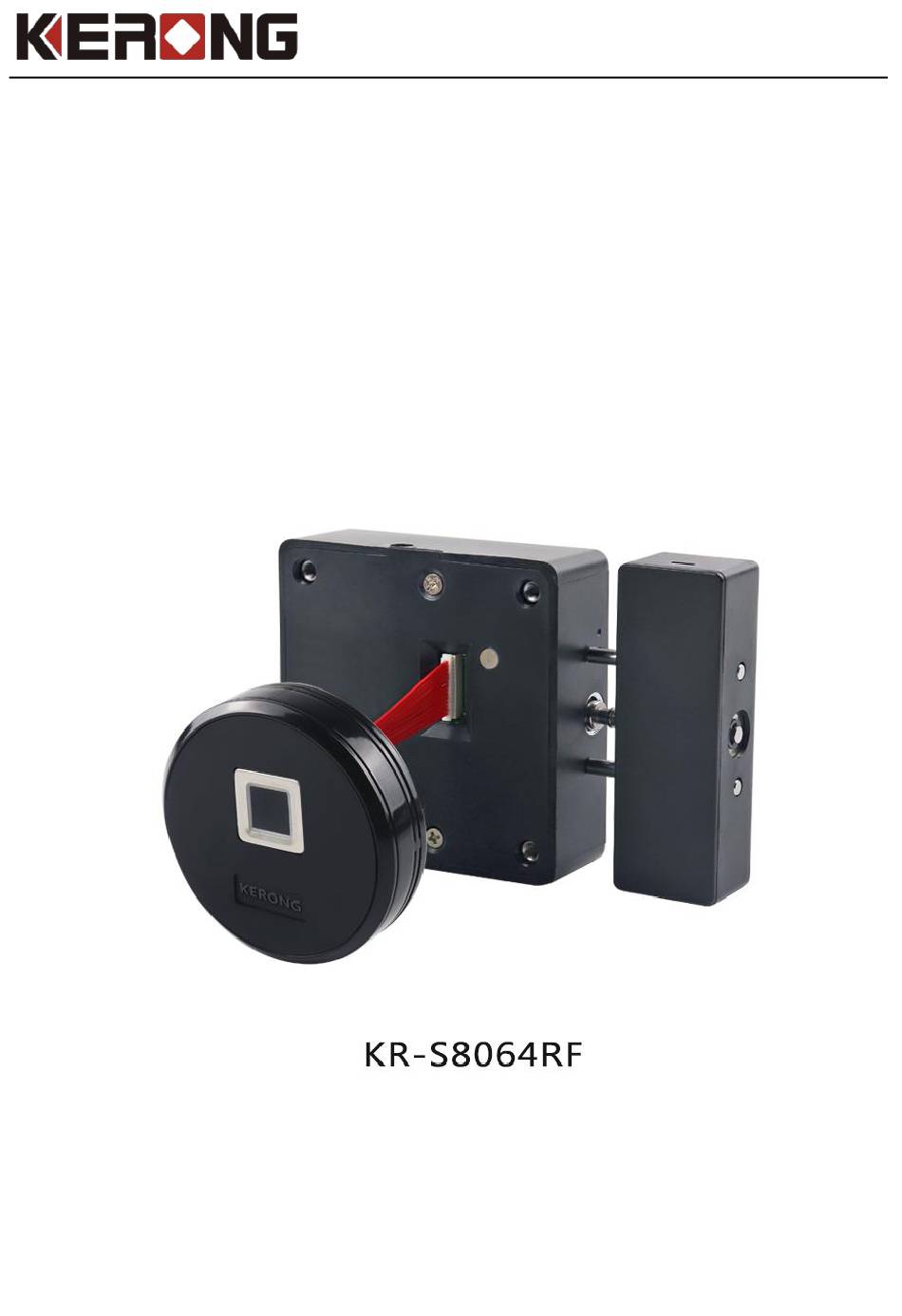

- Page 1 Technology Change Life User manual...
- Page 2 Technology Change Life Preface Dear Customers: Thanks for choosing this cabinet lock offered by Kerong Industry (HK) Co ., Limited . Please read this 《 User Manual 》 carefully before using. Thanks for your kind understanding and support!
-
Page 3: Table Of Contents
Technology Change Life Contents 1. Product............................1 2. Product Appearance......................2 2.1 Lock body..........................2 2.2 Front panel.........................2 2.3 Lock hook..........................2 2.4 Screws..........................2 2.5 External power supply.......................3 3. Product Installation Dimensions..................4 4. Installation Drawings......................6 5. Product Functions.........................7 5.1 Functions & Features......................7 5.2 Parameters.........................7 6. - Page 4 Technology Change Life 1. Relative Products - 1 -...
-
Page 5: Product Appearance
Technology Change Life 2. Product Appearance 2.1 Lock body Material: ABS Size: 80*80*27mm 2.2 Front panel Material: PC+Acrylic Size: φ64mm 2.3 Lock hook Different hook types suit for various application Hook A suits for both vertical and horizontal installation Hook D and Hook E suit for horizontal installation 2.4 Screws Suitable screws for different material cabinets (wooden/metal) and different door thickness. -
Page 6: Product Installation Dimensions
Technology Change Life 3. Product Installation Dimension Lock body Front Panel - 3 -... - Page 7 Technology Change Life Hook A Hook E - 4 -...
-
Page 8: Installation Drawings
Technology Change Life Hook D 4.Installation Drawing - 5 -... -
Page 9: Product Functions
Technology Change Life 5. Product Functions 5.1 Parameters ABS for lock body shell, Acrylic & PC for panel Material Static power consumption <100uA Power consumption dynamic power consumption<200mA DC6V(4*AAA 1.5V) Working voltage Batteries can standby for around 1 year Working temperature -15℃ ~ +65℃ Working environment Working humidity 10% ~ 90%RH Air static 15KV... - Page 10 Technology Change Life 2. When voltage is less than 4V, lock can’t be locked until change new batteries. 3. Lock can work normally 1000 times after low voltage warning Lock status alarm: 1. Lock will keep warning for 10s if it keeps unlocking status more than 30s.
-
Page 11: Operations
Technology Change Life 6. Operations 6.1 Public Mode 6.1.1 Mode introduction Lock keeps unlocking under public mode, manager fingerprint should be programmed first(manager fingerprint can be used for emergency unlock). Any fingerprint to lock and same fingerprint to unlock. 6.1.2 Set lock into public mode - 8 -... -
Page 12: Set Manager Fingerprint
Technology Change Life 6.1.3 Set manager fingerprint Notice: 1. One lock only can have one manager fingerprint. 2. Manager fingerprint can be used for emergency unlock. 6.1.4 Set user fingerprint ※ In public mode, no need to set user fingerprint. Input any fingerprint for 3 times can lock, then same fingerprint once to unlock. -
Page 13: Private Mode
Technology Change Life 6.2 Private Mode 6.2.1 Mode introduction Lock keeps locking under private mode, manager fingerprint and user fingerprint should be programmed first. Push the door to close, and use the user fingerprint to unlock. 6.2.2 Set lock into private mode 6.2.3 Set manager fingerprint - 10 -... -
Page 14: Set User Fingerprint
Technology Change Life Notice: 1.One lock only can have one manager fingerprint. 2. Manager fingerprint can be used for emergency unlock. 6.2.4 Set user fingerprint Notice: 1. One lock can have max 100pcs user fingerprint. 6.2.5 How to use user fingerprint 6.2.6 Delete user fingerprint - 11 -... -
Page 15: Limited Public Mode
Technology Change Life Notice: 1. After deleting, all user fingerprints will be invalid, then need to set again. 6.3 Limited Public Mode 6.3.1 Mode introduction Lock keeps locking first under limited public mode, manager fingerprint and user fingerprint should be programmed first. Lock will keep unlocking after unlocked, then input user fingerprint, push the door can close the box. -
Page 16: Set Manager Fingerprint
Technology Change Life 6.3.3 Set manager fingerprint Notice: 1. One lock only can have one manager fingerprint. 2. Manager fingerprint can be used for emergency unlock. 6.3.4 Set user fingerprint Notice: 1. One lock can have max 100pcs user fingerprint. 6.3.5 How to use user fingerprint - 13 -... -
Page 17: Reset Lock
Technology Change Life 6.3.6 Delete user fingerprint Notice: 1. After deleting, all user fingerprints will be invalid, then need to set again. 7. Reset lock Notice: After resetting, the lock will be factory setting and all fingerprints are invalid, need to be set again.
