Feider Machines FMTB50 Instruction Manual

Petrol tiller
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

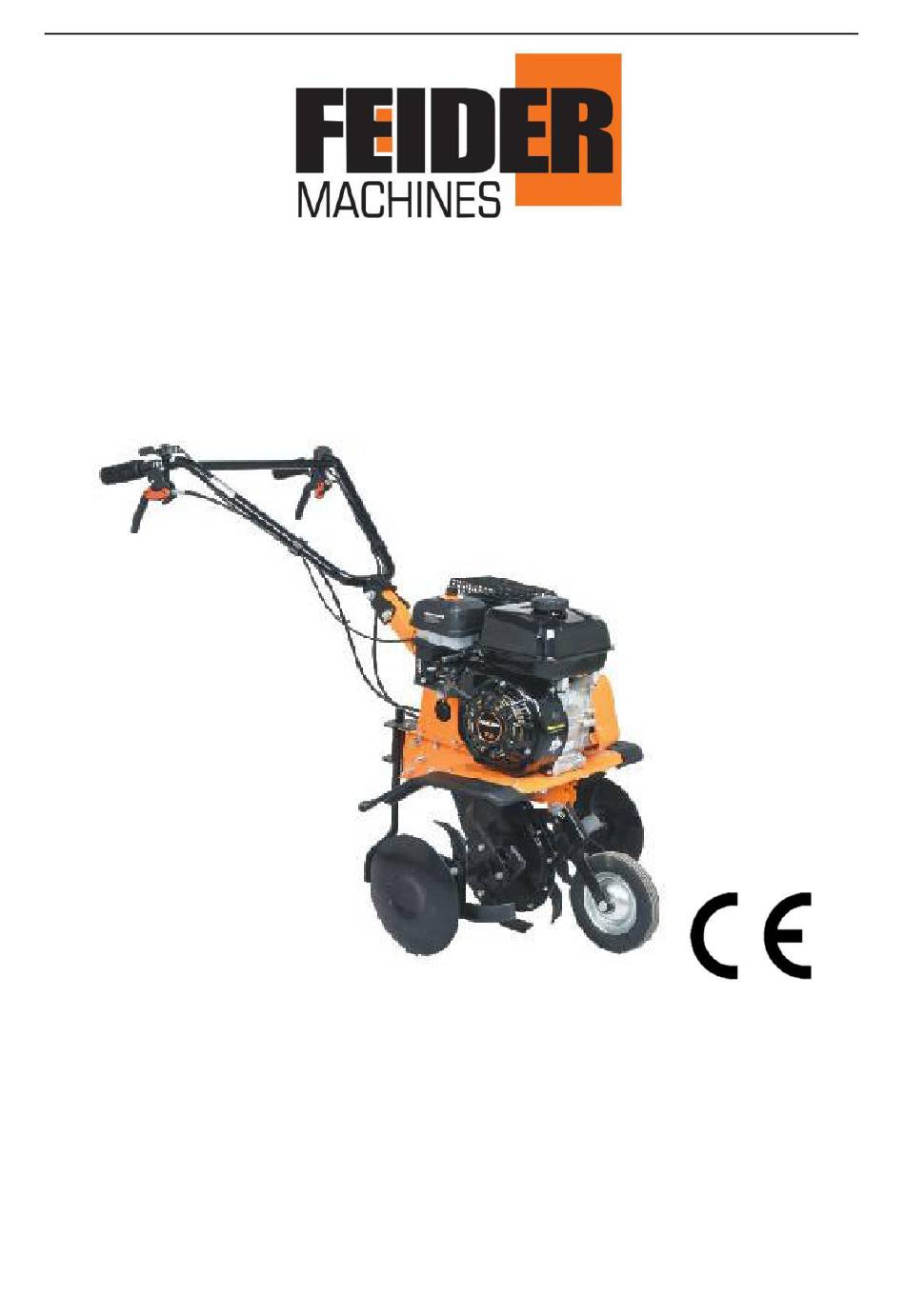

ORIGINAL INSTRUCTIONS
PETROL TILLER
INSTRUCTION MANUAL
FMTB50/FMTB80
BUILDER SAS
ZI, 32 rue aristide Bergès – 31270 Cugnaux - France
MAFE IN PRC 202 1
CAUTION: Read the instructions carefully. Be familiar with the
controls and the proper use of the equipment

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FMTB50 and is the answer not in the manual?

Questions and answers

Related Manuals for Feider Machines FMTB50

Summary of Contents for Feider Machines FMTB50

  • Page 1 ORIGINAL INSTRUCTIONS PETROL TILLER INSTRUCTION MANUAL FMTB50/FMTB80 BUILDER SAS ZI, 32 rue aristide Bergès – 31270 Cugnaux - France MAFE IN PRC 202 1 CAUTION: Read the instructions carefully. Be familiar with the controls and the proper use of the equipment...

  • Page 2: Safety Warning

    1. SAFETY WARNING: For your safety and safety of others please pay special attention to these precautions: 1) Training a) Read the instructions carefully. Be familiar with the controls and the proper use of the equipment; b) Never allow children or people unfamiliar with these instructions to use the machine.
  • Page 3 b) Work only in daylight or in good artificial light; c) Always be sure of your footing on slopes; d) Walk, never run with the machine; e) For wheeled rotary machines, work across the slopes, never up and down; f) Exercise extreme caution when changing direction on slopes; g) Do not work on excessively steep slopes;...
  • Page 4 etc. Pieces thrown from worn or damaged-tines can cause serious injury. Always inspect the tines before using the tiller. Fire and Burn Hazard Gasoline is extremely flammable and gasoline vapor can explode. Use extreme care when handing gasoline. Keep gasoline out of reach of children.

  • Page 5: Warning Symbol

    2. WARNING SYMBOL Attention! Caution: fire risk! The part is extremely hot! Do not touch! Read the instruction manual before use Caution: Do not put your hands in belt when it running. Caution: rotating working tool! Keep away from the machine. Warning: Exhaust emissions are harmful to health of body.
  • Page 6  That the machine shall always be used in accordance with these manufacturer's instructions the instruction handbook  The engine shall be stopped when carrying out maintenance and cleaning operations, when changing tools and when being transported by means other than under its own power; ...
  • Page 7 ORIGINAL INSTRUCTIONS 3. STRUCTURAL REPRESENTATION 1. Engine Switch 9. Gearbox Assy 2. Clutch Handle 10. Fender 3. Handle Bar 11. Engine 4. Reverse handle 12. Silencer 5. Throttle lever 13. Air filter 6. Belt Cove 14. Recoil start 7. Walking Wheel 8.
  • Page 8 Quantity of engine oil: see instruction manual of the engine. Fuel: unleaded petrol Safety device for forward gear stopping the tiller. The model FMTB50/FMTB80 has a front belt transmission for the engine and a greased chain for the tiller. The handlebar can be: 1.
  • Page 9 (Pitc.2) All the identification references (code number, engine, weight, power) are printed on the number plate on the machine (Pitc.3). (Pitc.3) Take the machine out of the carton box. Fit the two tillers to the main shaft using the delivered screws and nuts. Fit the rear spur in its place using the delivered bolt and both pins which are on the spur holder.

  • Page 10: Starting And Stopping

    down(see Pitc.4). (Pitc.4) Fit the two guard-extensions to the main tiller protections fitted on the body of the machine using the proper screws and nuts. The fender should reach a width of 60 cm according to CE norms. To make the transport easier it is possible to keep the handlebar disassembled, by means of the two screws in one version or by means of the thread bushing in the other one, that fix it to the handlebar holder.
  • Page 11 accelerator lever in the mid-position. 6.For stopping the engine move the accelerator lever in “LOW” position Turn the engine switch to OFF position (Pict.5). (Pict.7) Pict.5 Pict.6 Pict.7 Pict.8 Pict.9 Pict.10...

  • Page 12: Use And Adjustment

    6.1 Release clutch handle bar (pict8), Tiller stop. 6.2 When machine need reverse, Grasp reverse handle bar(pict9). 6.3 Model NO. FMTB50/FMTB80,Distance between belt is 52±5 mm. Please note only take off screw from front supportor , and belt cover, then you can check the belt distance,(see photo below).
  • Page 13 Adding other two sets of blades you can extend the tiller to 78 cm (Pict.15). The blades of the tiller-knives should always be directed ahead, towards the front of the machine 800mm Pitc.15 Technical Parameter Model FMTB50 FMTB80 Engine type H170F H170F 4.0kW 4.0kW...
  • Page 14 -1, 0, +1 -1, 0, +1 (One forward gears, (One forward gears, Gear Shifts: one neutral gear and one neutral gear and one reverse gear) one reverse gear) Blade Type 2-4 (4 sets 16Pcs) 3-4(6 sets 24Pcs) Tyre Model 8×1.75 8×1.75 Carton 580mm×400mm×74...

  • Page 15: Maintenance

    8. MAINTENANCE Please note that maintenance operations are scheduled for normal operating conditions. If the operation of tiller takes place under other conditions, we recommend that you communicate with your dealer to deal with the machine. 1. Turn off the engine and disconnect the spark plug prior to maintenance operations.
  • Page 16 the side protection cover fixed to the frame near the engine shaft by two screws. Remove the belt from the pulleys, install the new belt end adjust it following the instructions mentioned in the chapter USE AND ADJUSTMENT by checking the distance between both sides of the belt, then replace the cover.
  • Page 17 9. BREAKDOWN LIST A. Gasoline engine (1) Hard to start machine or fail to start Breakdown Cause Solution phenomenon carbon deposition of clear away carbon spark plug excessive adjust clearance to spark plug small clearance 0.7～0.8mm spark plug spark at Insulation damage of replace spark plug plug...
  • Page 18 (2) Abnormal conditions in the movement Breakdown Cause Solution phenomenon damper closed, poor open damper, ventilation of muffler replace muffler moving parts abrasion check, replace speed adjustment adjust speed mechanism failed adjustment Insufficient power， reach best mechanism equilibrium Low rotation replace ignitor low ignition power...
  • Page 19 B. Tiller Abnormalities Common Causes Measures to be taken Strange noises Stuck blade Turn off the tiller until engine completely stopped. Leakage of lubricating Fix it in the repair shop Tighten Loose bolts, nuts and other components components, strange noises remain, please contact repair shop...
  • Page 20 Declares that the machinery designated below: PETROL TILLER FMTB50/FMTB80 Serial number : FMTB50: 20210453872-20210453941 FMTB80: 20210453942-20210454011 Complies with the provisions of the Directive "machinery" 2006/42 / EC and the national regulations transposing it; Also complies with the following European directives:...

This manual is also suitable for:

Fmtb80
