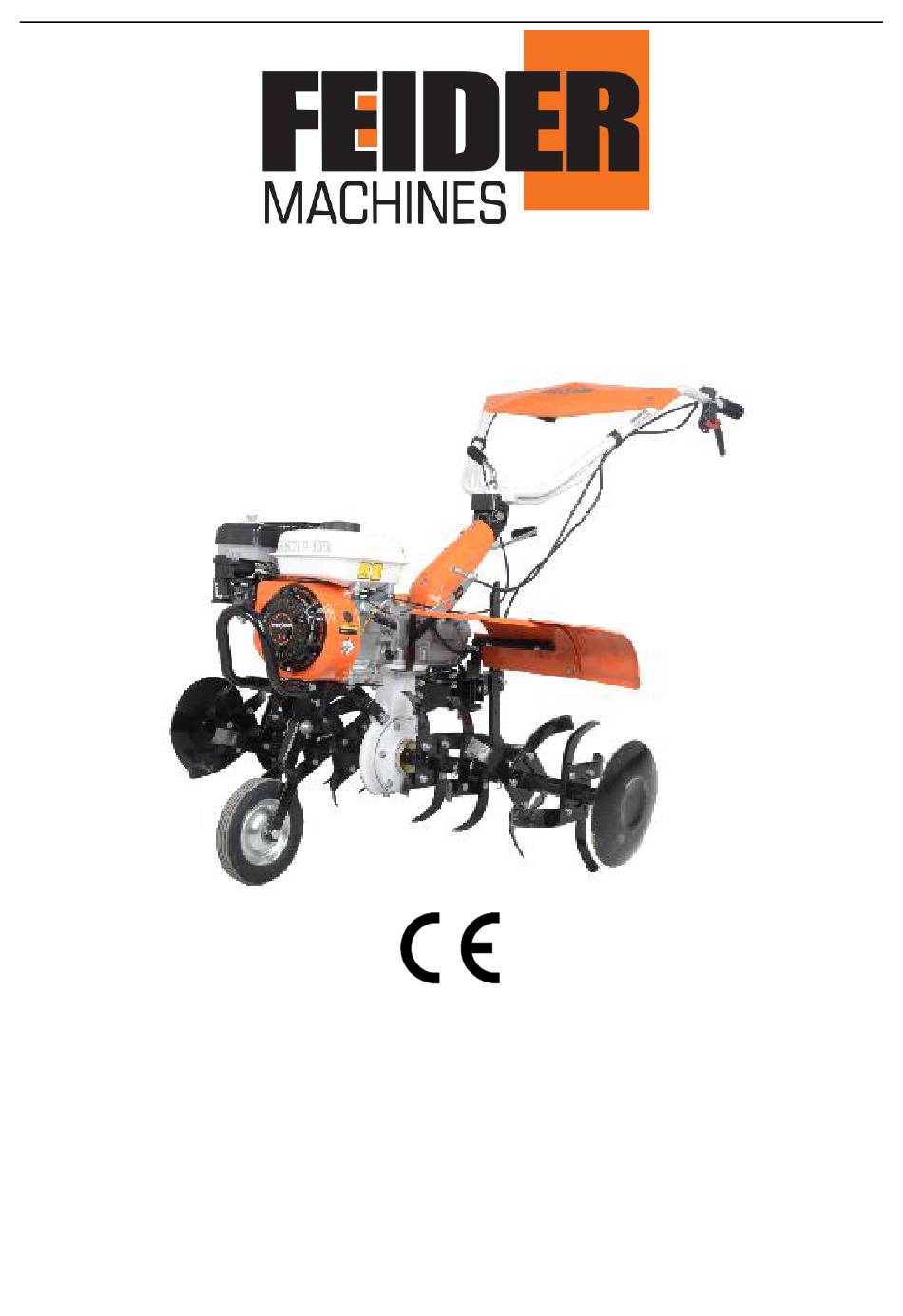

ORIGINAL INSTRUCTIONS
PETROL TILLER
INSTRUCTION MANUAL
FMTCPRO100
BUILDER SAS
ZI, 32 rue aristide Bergès – 31270 Cugnaux - France
MADE IN PRC 2020
CAUTION: Read the instructions carefully. Be familiar with the controls and the
proper use of the equipment

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FMTCPRO100 and is the answer not in the manual?

Questions and answers

Related Manuals for Feider Machines FMTCPRO100

Summary of Contents for Feider Machines FMTCPRO100

  • Page 1 ORIGINAL INSTRUCTIONS PETROL TILLER INSTRUCTION MANUAL FMTCPRO100 BUILDER SAS ZI, 32 rue aristide Bergès – 31270 Cugnaux - France MADE IN PRC 2020 CAUTION: Read the instructions carefully. Be familiar with the controls and the proper use of the equipment...

  • Page 2: Safety Warning

    ORIGINAL INSTRUCTIONS 1. SAFETY WARNING: For your safety and safety of others please pay special attention to these precautions: 1) Training a) Read the instructions carefully. Be familiar with the controls and the proper use of the equipment; b) Never allow children or people unfamiliar with these instructions to use the machine. Local regulations can restrict the age of the operator;...
  • Page 3 ORIGINAL INSTRUCTIONS k) Do not put your hands or feet near or under rotating parts; l) Never pick up or carry a machine while the engine is running; m) Stop the engine:  Whenever you leave the machine;  Before refueling; n) Reduce the throttle setting during engine shut down and, if the engine is provided with a shut-off valve, turn the fuel off at the conclusion of working;...

  • Page 4: Warning Symbol

    ORIGINAL INSTRUCTIONS Operation on Slope When tilling on slopes, keep the fuel tank with less than half oil to minimize fuel spillage. When the tiller walks across the slope, put your effort evenly while walking up and down the slope. Be very careful when changing the direction of the tiller on a slope.
  • Page 5 ORIGINAL INSTRUCTIONS Warning: Exhaust emissions are harmful to health of body. Add engine oil.  That the machine shall always be used in accordance with these manufacturer's instructions the instruction handbook  The engine shall be stopped when carrying out maintenance and cleaning operations, when changing tools and when being transported by means other than under its own power;...
  • Page 6 ORIGINAL INSTRUCTIONS 3. Tiller description 1)．The main technical parameters Power tiller Packing SIZE (L x W x H(mm): 9 0 0x460x 66 0 Weight: 114kg/75/kg Working width (mm): 1000 Working depth (mm) : 100 -160 Guarantee sound power level: 98 dB(A) Sound power level measured : Left: 78,9 dB(A)Right: 80dB(A) Sound pressure level measured : 94.1 dB(A).
  • Page 7 ORIGINAL INSTRUCTIONS 2)．Know your machine 1. Handle 2. Petrol engine 3. Side disc 4. Handlebar adjustment 5. Fender 6. Blades 7. Depth regulator 8. Gear change lever 9. Clutch lever 10. ON/OFF Switch 11. Throttle switch 12.Bumper 13.Front Support wheel...
  • Page 8 ORIGINAL INSTRUCTIONS 3)．Daily inspection WARNING: This is a 0. 6 l engine. if the level of oil is below normal and you continue to use the machine, the engine will be seriously damaged. WARNING: Always use 4-stroke quality oil engine. If you use a different type of oil, the service life of the engine will be shortened.
  • Page 9 ORIGINAL INSTRUCTIONS Empty the oil, check that the oil level is normal. Oil SAE15W-40 is recommended for general lubrication and is suitable for a general environment temperature 2). CHECK OIL IN THE GEARBOX. Place the machine on la flat surface for working. Unscrew the oil level. The normal value is 1.5 l.
  • Page 10 ORIGINAL INSTRUCTIONS . Check air filters If the engine were operating without a filter, engine wear would accelerate. Tiller adjustment method, (1) Assembling the handle and height adjustment WARNING: In order to adjust handle height Begin by placing the parts on a flat terrain to prevent the machine from skidding.
  • Page 11 ORIGINAL INSTRUCTIONS 5) THE CLUTCH AND ITS ADJUSTMENT WARNING: Before using the clutch, slow down the engine. Use the clutch to control engine output. By loosening the clutch level the power input will result in the engine stopping and the tilling blade will also stop.
  • Page 12 ORIGINAL INSTRUCTIONS 6) ADJUSTING THE THROTTLE LEVERS. Reach of normal idle speed: 1600 +-150 RPM; high speed: 3600 r/min. You can use the speed adjustment table. Speed confirmation and adjustment method (1) Do not apply any load, place the throttle knob on the maximum adjustment position and check whether the data on the speed table show 3600.
  • Page 13 ORIGINAL INSTRUCTIONS Name Torque (N.m) Connection and petrol engine 20~25 Connection and transmission 35~40 The gearbox after the screw 10~12 Reverse transmission shaft fastening screws 26~40 Support structure and engine box 35~40 Screw covering mobile device 35~40 Screw covering mobile mechanism 50~60 The mobile mechanism and the connecting screws of the gearbox 35~40...
  • Page 14 ORIGINAL INSTRUCTIONS B. Start Note: The gear lever must be neutral and your hand ready in the event of an emergency stop. 1) Petrol engine operation instructions must be observed, including the steps before starting the engine. 2) The petrol engine must be idle (1600 +-150 r/min) without load 2 ~ 3 minutes. 3) Make sure that the engine operates properly.
  • Page 15 ORIGINAL INSTRUCTIONS 6) SUPPORTING THE CONNECTION DIRECTION TO BE USED. If you need to turn while you till, remove the wheel and the device of the hex tube will rotate with 8*50 of the axis of the fixed peg and screw to be removed. Once the tiller rotating blade is installed, you must install a safety protection guard for operating the machine.
  • Page 16 ORIGINAL INSTRUCTIONS e) When the side distance of the gear is under 0.05 mm you must increase the adjustment mat 1 (0.2 to 0.3 mm) to increase lateral distance and replace the seal paper 2 to ensure that the axial difference of gear 2 is between 0.05 and 0.15 mm.
  • Page 17 ORIGINAL INSTRUCTIONS must return without hitting the transmission gear. Pay attention to any abnormal noise as the gear may be damaged. Clutch cable adjustment method The use of the machine will lead to some wear and tear from friction resulting in the clutch holder which regulates the clutch cable. See chapter 3 for further information.
  • Page 18 ORIGINAL INSTRUCTIONS ·· You can control the handle bar upwards and downwards using the height handle and the T locking. 6. Tiller Maintenance As this machine is used in agriculture, the friction, wear and tear and the changes in workload, parts of the machine may get loose or get worn, the petrol engine may switch off, the consumption of fuel may increase, all of which will have serious repercussions for the performance of the machine.
  • Page 19 ZI, 32, rue Aristide Bergès – 31270 Cugnaux - France Declares that the machinery designated below: PETROL TILLER INSTRUCTION MANUAL FMTCPRO100 Serial number: 20200726010-20200726019/20200903118-20200903127 Complies with the provisions of the Directive "machinery" 2006/42 / EC and the national regulations transposing it;...

  • Page 20: Warranty

    8. WARRANTY WARRANTY The manufacturer guarantees the product against defects in material and workmanship for a period of 2 years from the date of the original purchase. The warranty only applies if the product is for household use. The warranty does not cover breakdowns due to normal wear and tear. The manufacturer agrees to replace parts identified as defective by the designated distributor.

  • Page 21: P R O D U C T Fa I L U R E

    9. P R O D U C T FA I L U R E WHAT TO DO IF MY MACHINE BREAKS DOWN? If you bought your product in a store: a) Empty the fuel tank. b) Make sure that your machine is complete with all accessories supplied, and clean! If this is not the case, the repairer will refuse the machine.

  • Page 22: Warranty Exclusions

    10. WARRANTY EXCLUSIONS THE WARRANTY DOES NOT COVER: • Start-up and setting up of the product. • Damage resulting from normal wear and tear of the product. • Damage resulting from improper use of the product. • Damage resulting from assembly or start-up not in accordance with the user manual. •...
