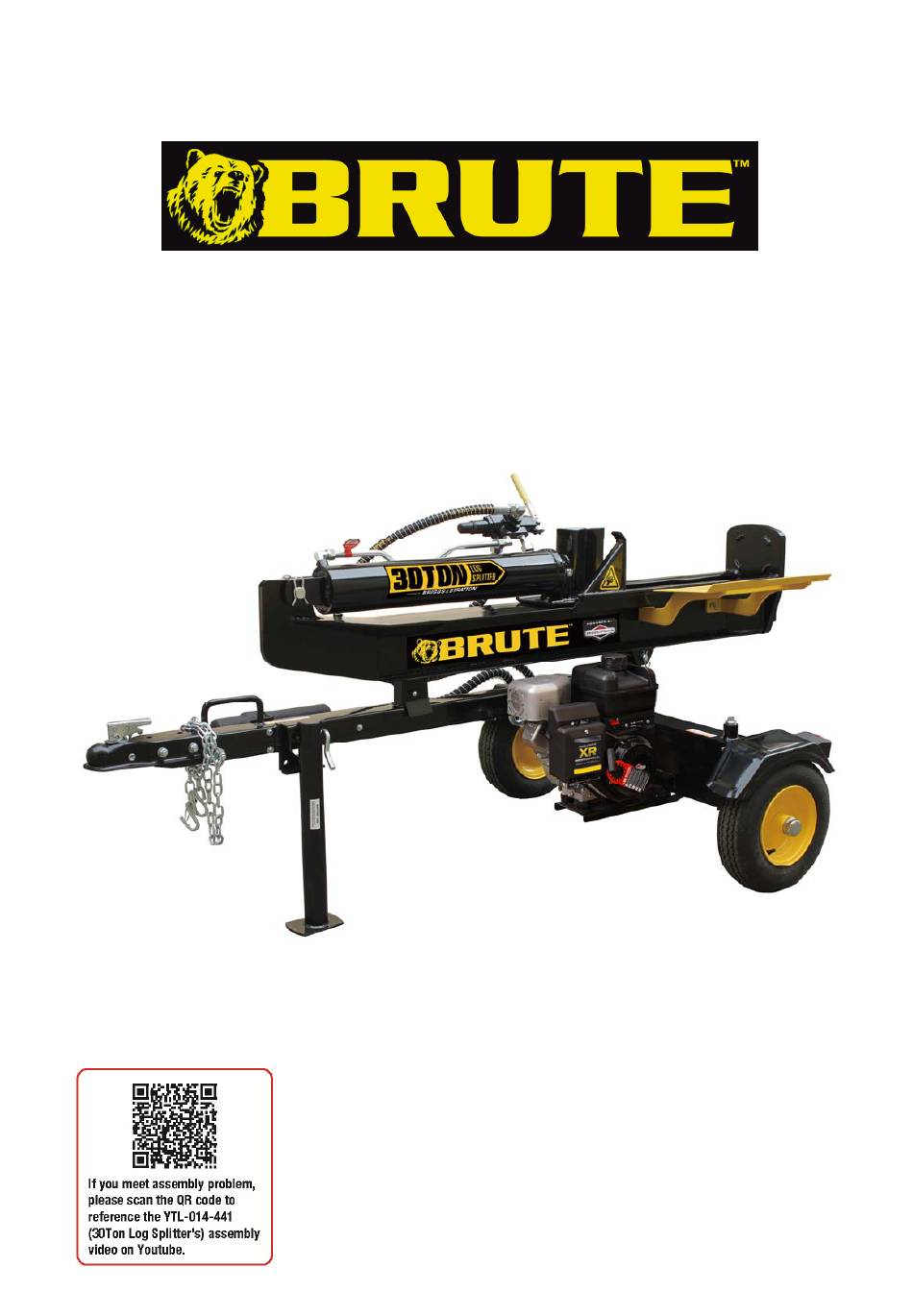

- Page 1 YTL-140-701 30 Ton Log Splitter Brute is a trademark of Briggs & Stratton Power Products Group, LLC and is used under license. Instruction & Assembly SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE V050520...
-
Page 2: Table Of Contents
Table of Contents General Warnings and Rules ................3 Hazard Signal Word Definitions ................4 Controls and Features Identification ..............5 Assembly Instructions ................... 7 Operation Instructions ..................12 Maintenance and Storage ................... 16 Troubleshooting ....................17 Specification ......................18 Parts Drawing &... -
Page 3: General Warnings And Rules
GENERAL WARNINGS READ and UNDERSTAND this manual completely before using 30 Ton Log Splitter. Operator must read and understand all safety and warning information, operating instructions, maintenance and storage instructions before operating this equipment. Failure to properly operate and maintain the log splitter could result in serious injury to the operator or bystanders. Operation Warnings ... -
Page 4: Hazard Signal Word Definitions
Hazard Signal Word Definitions This is the safety alert symbol. It is used to alert you to potential personal injury hazards. Obey all safety messages that follow this symbol to avoid possible injury or death. DANGER indicates an imminently hazardous DANGER situation which, if not avoided, will result in death or serious injury. -
Page 5: Controls And Features Identification
Controls and Features Identification Read this owner’s manual before operating the equipment. Familiarize yourself with the location and function of the controls and features. Save this manual for future reference. 1. 2” Coupler – Attaches the log splitter to the 2” ball 2. - Page 6 WARNING Read and follow all instructions for assembly and operation. Failure to properly assemble this equipment could result in serious injury to the user or bystanders, or cause equipment damage . Engine Shipped Without Oil. Before starting engine, fill with SAE 10W-30 motor oil. See engine manual for engine oil capacity.
-
Page 7: Assembly Instructions
Assembly Instructions STEP 1: Wheel Assembly 1. Attach the wheel (#35) to the oil tank axle (#44) using a conical roller bearing (#81), flat washer Ø20 (#70) and tighten the wheel with the hex slotted nut M20 (#37). Lock the hex slotted nut M20 (#37) in place using the cotter pin Ø4x36 (#73). - Page 8 STEP 3: Attach the Beam Assembly 1. Attach the beam assembly (#17) to the hydraulic tank and secure using the hinge pin (#18) and R-Pin Ø3 (#21). STEP 4: Attach Engine 1. Install the engine place four polyurethane block (#71) and big flat washer Ø10 (#72) between the mounting plate and engine.
- Page 9 STEP 5: Attach Hydraulic Hose, Storage Tube, Log Cradle and Fender 1. Put O ring Ø11x2.5 (#19) on the gear pump outlet connector (#23), attach the hydraulic hose (#16) to the gear pump outlet connector (#23). 2. Put O ring Ø17x2.5 (#68) on the external filter connector (#50), attach the hydraulic hose (#7) to the connector (#50).
- Page 10 STEP 6: Attach 4-way Wedge (Optional use, will not work with all wood) 1. Attach 4-way wedge (#87) to the wedge (#14), pass the steel wire rope (#89) around the piston rod and set it on the O lock ring (#88). ATTENTION: Cross wedge for HORIZONTAL SPLITTING use only STEP 7: Add Engine Oil 1.
- Page 11 CAUTION Fuel and fuel vapors are highly flammable and extremely explosive. Fire or explosion can cause severe burns or death. Unintentional startup can result in entanglement, traumatic amputation or laceration. Only use regular unleaded gasoline with a minimum 85 octane rating. DO NOT mix oil and gasoline together.
-
Page 12: Operation Instructions
Operation Instructions WARNING Before operating or using the log splitter, review the instructions below and all safety information. Failure to follow these instructions may result in property damage or injury to the operator or bystanders WARNING ALWAYS use the log splitter for its intended use. ONLY use the log splitter to split wood logs, length wise with the grain. - Page 13 NOTE: Serious accidents can happen when other people are allowed inside the work zone. Keep everyone else outside the work zone while operating the control lever. 7. Always wear safety gear, eye protection, gloves and work boots when operating the log splitter. 8.
- Page 14 12. Make sure hands are clear from the wedge and crush hazard areas. CRUSH WARNING Wedge can cut through skin and break bones. Keep both hands away from wedge and beam slide. Serious accidents can happen when other people are allowed inside the work zone. Keep everyone else out of the work zone while operating control lever.
- Page 15 Operation Instructions - 15 -...
-
Page 16: Maintenance And Storage
Maintenance and Storage CAUTION Improper maintenance and storage of the log splitter may void your warranty. MAINTENANCE Before performing maintenance, the log splitter must be placed in maintenance mode. Turn off the engine and move the control lever forward and backwards to relieve the hydraulic pressure. -
Page 17: Troubleshooting
Troubleshooting Problem Cylinder rod will not move SOLUTION: A,D,E,H,J Slow cylinder rod speed when extending or SOLUTION: A,B,C,H,I,K,L retracting Wood will not split or splits extremely slowly SOLUTION: A,B,C,F,I,K Engine bogs down during splitting SOLUTION: G,L Engine stalls under low load condition SOLUTION: D,E,L,M Engine starts problem SOLUTION: N... -
Page 18: Specification
Specifications Ram Force ....................30 Ton Cycle Time ....................13 Sec Wedge Size ..................8” Harden Steel Gear Pump ....................2-Stage Hydraulic Oil ..........AW32, AW46 & Universal Hydraulic Oil Hydraulic System Capacity ..............6.5 Gallon Max. Log Length ....................26” Hydraulic Cylinder ................. -
Page 19: Parts Drawing & Parts List
Parts Drawing & Parts List - 19 -... - Page 20 Parts Drawing & Parts List Ref# Drawing No. Description 9101-05010-DX8.8 Hex Bolt M5x10 9121-06010-FH Inner Hex Cone Point Set Screw LSP30B-03000 Cylinder LSP25-00001-DX Metal Hydraulic Hose LSP25-00005-DX R Pin Ø4.5 LSP25-00004-DX Cylinder Pin LSP30M-00017 Hydraulic Hose(valve-external filter) LSP25-06000 Cutting Sleeve Connector LSP30-16000 One-Way Single Handle Control Valve LSP25-17000...
- Page 21 Ref# Drawing No. Description LSP25-00019-DX Angle Connector LSP25-00022-DX Inner Oil Filter 9404-03030-DX Cotter Pin Ø3x30 LSP25-00009-DX Axle Cap LSP25-00021-DX Rubber Washer LSP25-10008-FH Wire Snap rings for shaft LSP30MD-03000 Oil Tank 9301-06000-DX Flat Washer Ø6 9101-08065-DX8.8 Hex Bolt M8X65 9101-06020-DX8.8 Hex Bolt M6x20 LSP25-15000-DX Filter Fixed Plate LSP25-09000...
- Page 22 Ref# Drawing No. Description 9302-06000-DX Big Flat Washer Ø6 9206-06000-DX Nylon Lock Nut M6 9206-14000-DX Nylon Lock Nut M14 LSP25-09002 Filter LSP25-14002 Oil Seal L44643 Conical Roller Bearing 9101-12035-DX8.8Q Hex bolt M12x35 9101-08025 Hex Bolt M8x25 LSA22-00021 Rubber Washer LSP25-18000 Left Fender LSP25-19000 Right Fender...
-
Page 23: Limited Warranty
Phone: (888) 723-6534 Phone: (562) 404-8016 Fax: (562) 404-8013 Email: parts@ytlinternational.com Website: www.brutepower.com Contact Information below for Warranty and Service Brute Log Splitter Parts and Service: Toll Free (888) 723-6534 Brute Engine Parts and Service: Toll Free (888) 879-3430 - 23 -...
