Brute YTL-014-441 Instructions & Assembly

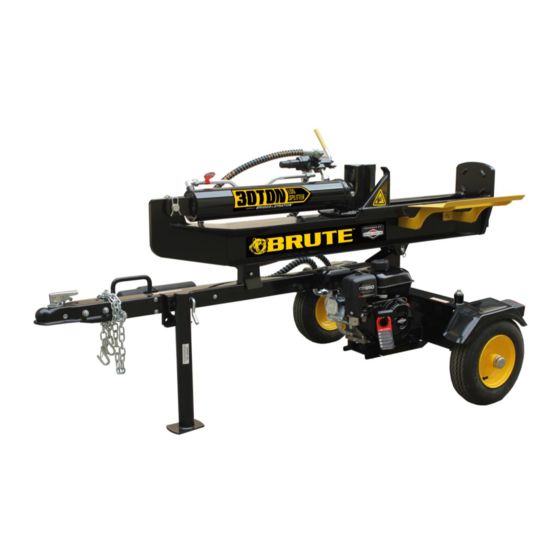

30 ton log splitter
Hide thumbs

Advertisement

Table of Contents

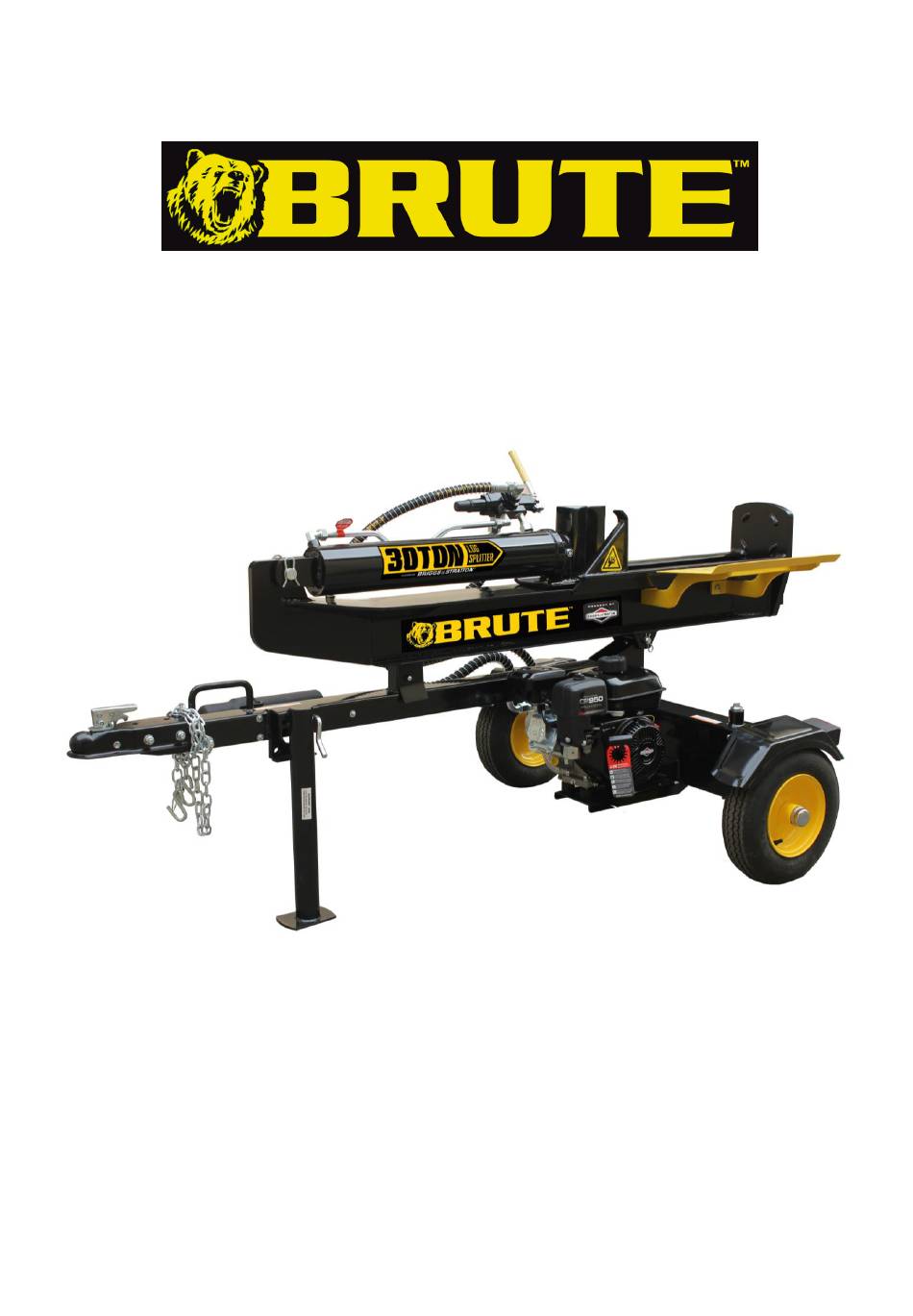

YTL-014-441
30 Ton Log Splitter
Brute is a trademark of Briggs & Stratton Power Products Group, LLC and is used
under license.
Instruction & Assembly
SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE
REV061316

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the YTL-014-441 and is the answer not in the manual?

Questions and answers

Related Manuals for Brute YTL-014-441

Summary of Contents for Brute YTL-014-441

  • Page 1 YTL-014-441 30 Ton Log Splitter Brute is a trademark of Briggs & Stratton Power Products Group, LLC and is used under license. Instruction & Assembly SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE REV061316...

  • Page 2: Table Of Contents

    Table of Contents General Warnings and Rules ................3 Hazard Signal Word Definitions ................4 Controls and Features Identification ..............5 Assembly Instructions ..................6 Operation Instructions ..................11 Maintenance and Storage .................. 15 Troubleshooting ....................16 Specification ....................... 17 Parts Drawing &...

  • Page 3: General Warnings And Rules

    GENERAL WARNINGS READ and UNDERSTAND this manual completely before using 30 Ton Log Splitter. Operator must read and understand all safety and warning information, operating instructions, maintenance and storage instructions before operating this equipment. Failure to properly operate and maintain the log splitter could result in serious injury to the operator or bystanders. Operation Warnings ...

  • Page 4: Hazard Signal Word Definitions

    Hazard Signal Word Definitions This is the safety alert symbol. It is used to alert you to potential personal injury hazards. Obey all safety messages that follow this symbol to avoid possible injury or death. DANGER indicates an imminently hazardous DANGER situation which, if not avoided, will result in death or serious injury.

  • Page 5: Controls And Features Identification

    Controls and Features Identification Read this owner’s manual before operating the equipment. Familiarize yourself with the location and function of the controls and features. Save this manual for future reference. 1. 2” Coupler – Attaches the log splitter to the 2” ball. 2.

  • Page 6: Assembly Instructions

    WARNING Read and follow all instructions for assembly and operation. Failure to properly assemble this equipment could result in serious injury to the user or bystanders, or cause equipment damage . Engine Shipped Without Oil. Before starting engine, fill with SAE 10W-30 motor oil. See engine manual for engine oil capacity.
  • Page 7 STEP 2: Attach Tow Bar to the Hydraulic Tank 1. Attach the tow bar (#59) to the hydraulic tank and secure using two hex bolt M12x100 (#24), flat washer Ø12 (#62) and nylon lock nut M12 (#13). STEP 3: Attach the Beam Assembly 1.
  • Page 8 STEP 4: Attach Engine 1. Install the engine place four polyurethane blocks (#71) and large flat washer Ø10 (#72) between the mounting plate and engine. 2. Position the engine (#33) over the blocks and secure it to the mount plate put the hex bolt M8x65 (#46) through the bottom of the plate (bolt should go through blocks, flat washer and engine base).
  • Page 9 STEP 5: Attach Hydraulic Hose, Storage Tube, Log Cradle and Fender 1. Put O ring Ø11.2x2.4 (#19) on the gear pump outlet connector (#23), attach the hydraulic hose (#16) to the gear pump outlet connector (#23). 2. Put O ring Ø17x2.5 (#68) on the external filter connector (#50), attach the hydraulic hose (#7) to the connector (#50).
  • Page 10 STEP 6: Add Engine Oil 1. Make sure the log splitter is on a level surface. 2. Remove oil fill cap/dipstick to add oil. 3. Refer to the separate owner’s engine manual for the amount needed of SAE10W-30 engine oil; replace oil fill cap/dipstick.

  • Page 11: Operation Instructions

    WARNING DO NOT remove the hydraulic oil fill cap when the engine is running or hot. Hot oil can escape causing severe burns. Always allow the log splitter to cool completely before removing the hydraulic oil cap. High fluid pressure and temperatures are created in the hydraulic log splitters. Hydraulic fluid will escape through a pin-size hole opening and can puncture skin and cause severe blood poisoning.
  • Page 12 TOWING WARNING Serious injury or death can occur if towing safety rules are not followed. Always use safety chains, secure and lock the log splitter to the vehicle hitch before moving. Drive safely. Be aware of the added length of the log splitter. Never exceed the maximum travel speed of 45 mph.
  • Page 13 11. Load a log onto the beam against the endplate (Max Log Length-26”). 12. Make sure hands are clear from the wedge and crush hazard areas. CRUSH WARNING Wedge can cut through skin and break bones. Keep both hands away from wedge and beam slide. Serious accidents can happen when other people are allowed inside the work zone.
  • Page 14 - 14 -...

  • Page 15: Maintenance And Storage

    Maintenance and Storage CAUTION Improper maintenance and storage of the log splitter may void your warranty. MAINTENANCE  Before performing maintenance, the log splitter must be placed in maintenance mode. Turn off the engine and move the control lever forward and backwards to relieve the hydraulic pressure.

  • Page 16: Troubleshooting

    Troubleshooting Problem Cylinder rod will not move SOLUTION: A,D,E,H,J Slow cylinder rod speed when extending or SOLUTION: A,B,C,H,I,K,L retracting Wood will not split or splits extremely slowly SOLUTION: A,B,C,F,I,K Engine bogs down during splitting SOLUTION: G,L Engine stalls under low load condition SOLUTION: D,E,L,M Engine starts problem SOLUTION: N...

  • Page 17: Specification

    Specifications Ram Force ....................30 Ton Cycle Time ....................13 Sec Wedge Size ................... 8” Harden Steel Gear Pump....................2-Stage Hydraulic Oil ..........AW32, AW46 & Universal Hydraulic Oil Hydraulic System Capacity ..............6.5 Gallon Max. Log Length ....................26” Hydraulic Cylinder ................

  • Page 18: Parts Drawing & Parts List

    Parts Drawing & Parts List - 18 -...
  • Page 19 Parts Drawing & Parts List Drawing No. Ref# Description Hex Bolt M5x10 9101-05010-DX8.8 Inner Hex Cone Point Set Screw 9121-06010-FH Cylinder LSP30B-03000 Metal Hydraulic Hose LSP25-00001-DX R Pin Ø5 LSP25-00005-DX Cylinder Pin LSP25-00004-DX Hydraulic Hose(valve-external filter) LSP25-00017 Cutting Sleeve Connector LSP25-06000 One-Way Single Handle Control Valve LSP30-16000...
  • Page 20 Drawing No. Ref# Description Angle Connector LSP25-00019-DX Inner Oil Filter LSP25-00022-DX Cotter Pin Ø3x30 9404-03030-DX Axle Cap LSP25-00009-DX Rubber Washer LSP25-00021-DX Wire Snap rings for shaft LSP25-10008-FH Oil Tank LSP30MD-03000 Flat Washer Ø6 9301-06000-DX Hex Bolt M8X65 9101-08065-DX8.8 Hex Bolt M6x20 9101-06020-DX8.8 Filter Fixed Plate LSP25-15000-DX...
  • Page 21 Drawing No. Ref# Description Big Flat Washer Ø6 9302-06000-DX Nylon Lock Nut M6 9206-06000-DX Nylon Lock Nut M14 9206-14000-DX Filter LSP25-09002 Oil Seal LSP25-14002 Conical Roller Bearing L44643 Hex bolt M12x35 9101-12035-DX8.8Q Hex Bolt M8x25 9101-08025 Lock Washer Ø8 9306-08000-DX Nylon Lock Nut M8 9206-08000-DX Rubber Washer...

  • Page 22: Limited Warranty

    Phone: (888) 723-6534 Phone: (562) 404-8016 Fax: (562) 404-8013 Email: parts@ytlinternational.com Website: www.brutepower.com Contact Information below for Warranty and Service Brute Log Splitter Parts and Service: Toll Free (800) 232-7162 Brute Engine Parts and Service: Toll Free (888) 879-3430 - 22 -...
