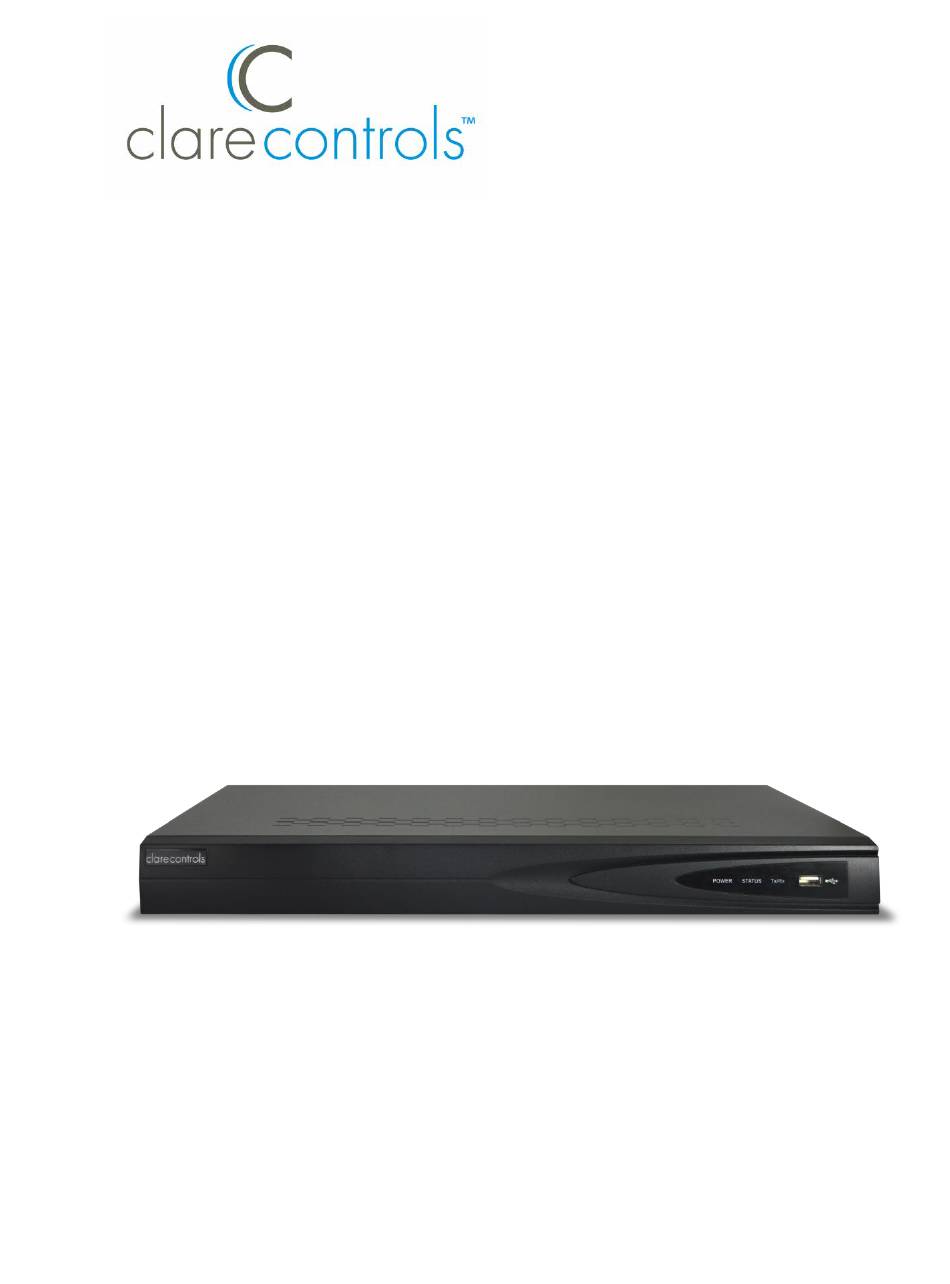

Clare Controls ClareVision CV-B4410-01 Installation Manual

Network video recorder

Advertisement

Quick Links

ClareVision
Network Video Recorder
Installation Guide
Model CV-B4410-01
Last modified: 09/29/16
Doc ID - 344 • Rev 07

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ClareVision CV-B4410-01 and is the answer not in the manual?

Questions and answers

Summary of Contents for Clare Controls ClareVision CV-B4410-01

  • Page 1 ClareVision Network Video Recorder Installation Guide Model CV-B4410-01 Last modified: 09/29/16 Doc ID - 344 • Rev 07...
  • Page 2 Clare Controls, LLC., except where specifically permitted under US and international copyright law. The ClareVision name is a trademark of Clare Controls, LLC. Trademarks Other trade names used in this document may be trademarks or registered trademarks of the manufacturers or vendors of the respective products.
  • Page 3: Table Of Contents

    Content NVR pre-installation...1 Package contents...1 NVR installation...1 Hard disk installation (optional)...2 Front panel...4 Rear panel...5 HDD storage calculation chart...6 Startup...7 Using the Setup Wizard...7 Live View...11 Adding and configuring IP cameras...11 Configuring basic parameters of IP cameras...12 PTZ control...14 PTZ settings...14 PTZ control...15 Playback...16 Instant playback by channel...16...
  • Page 4 ClareVision Network Video Recorder Installation Guide...
  • Page 5: Nvr Pre-Installation

    NVR pre-installation This NVR is highly advanced surveillance equipment that should be installed with care. Follow these precautionary steps before the installation of the NVR.  Keep all liquids away from the NVR.  Install the NVR in a well-ventilated and dust-free area. ...
  • Page 6: Hard Disk Installation (Optional)

    Hard disk installation (optional) Additional SATA hard disks can be installed on your NVR. Disconnect the power from the NVR before installing a hard disk drive (HDD). A factory recommended HDD should be used for this installation. Tools required: screwdriver. To install the hard disk drive into the NVR: 1.
  • Page 7 3. Connect the power cable to the HDD. 4. Place the HDD on the bottom of the device, and then fasten the screws on the bottom to affix the HDD. ClareVision Network Video Recorder Installation Guide...
  • Page 8: Front Panel

    Front panel No. Name Description Power POWER: The POWER LED turns green when the NVR is powered up. Status READY: The LED is green when the device is running normally. STATUS: 1. The light is green when the IR remote control is enabled.
  • Page 9: Rear Panel

    Rear panel Item Description Network Interfaces with The network interfaces for the cameras and provide power PoE function over Ethernet. Connects USB disks and devices. HDMI HDMI video output connector. Alarm Controls Connector for alarm inputs and outputs. Interface DB9 connector for VGA output. Display local video output and menu.
  • Page 10: Hdd Storage Calculation Chart

    HDD storage calculation chart The following chart shows an estimate of storage space used based on recording on one channel for an hour at a fixed bit rate. Table 1: Storage calculation chart Bitrate Storage used 96 K 42 M 128 K 56 M 160 K...
  • Page 11: Startup

    Startup Proper startup procedures are crucial to expand the life of the NVR. To start the NVR: 1. Check that the power supply is plugged in. We recommend that you use an Uninterruptible Power Supply (UPS) in conjunction with the device. 2.
  • Page 12 3. Click Next on the Wizard window to enter the Login window. 4. Enter the admin password. By default, the password is “secure7” 5. To change the admin password, select the New Admin Password checkbox. Enter and confirm the new password in the given fields. 6.
  • Page 13 7. After the time settings are set, click Next to return to the Network Setup Wizard window. The internal NIC IPv4 address must be on a separate subnet. Note: 8. Click Next to enter the HDD Management window. 9. To initialize the HDD, click Init., initialization removes all the data saved in the HDD.
  • Page 14 12. Select the IP camera, and then click Add. 13. Click the Next button. Configure the recording for the searched IP Cameras. 14. Click Copy to copy the settings to other channels. 15. Click OK to complete the Setup Wizard. ClareVision Network Video Recorder Installation Guide...
  • Page 15: Live View

    Live View Some icons are provided on screen in Live View mode to indicate the different camera statuses. Icons appear at the top right of the screen for each channel. They show the status of the record and alarm features in the channel so that you can identify problems quickly.
  • Page 16: Configuring Basic Parameters Of Ip Cameras

    To add the online cameras with same network segment: 1. Click Search to search the online cameras. 2. Select the checkboxes for the cameras to be added. 3. Click Quick Add to add the cameras. Configuring basic parameters of IP cameras After adding the IP camera, the camera information displays on the page.
  • Page 17 2. Click Apply to save the settings, and then click OK to exit the editing interface. More parameter options: 1. Scroll to the right on the screen, and then click the Advance Set icon. 2. You can edit the network information and the password of the camera. 3.
  • Page 18: Ptz Control

    PTZ control Follow the procedure to set the parameters for the PTZ. You should configure the PTZ parameters before you set the PTZ of the camera. Before you begin, ensure the PTZ and the NVR are connected properly through the RS-485 interface. PTZ settings To set PTZ: 1.
  • Page 19: Ptz Control

    PTZ control To enter the PTZ panel in the Live View mode, you can press the PTZ Control button on the front panel, on the remote, or choose the PTZ Control icon . Table 4: PZT control icons Icon Description Direction button and the auto-cycle button The speed of the PTZ movement 3D-Zoom...
  • Page 20: Playback

    Playback Play back the recorded files of a specific channel in the Live View menu. Instant playback by channel Choose a channel under Live View using the mouse, and then click the button in the shortcut operation menu. Only files recorded during the last five minutes on the channel will be Note: played back.
  • Page 21: Backup

    Check the channel or channels if you want to switch playback to another channel or execute simultaneous playback of multiple channels. Backup Recorded files can be backed up to various devices, such as USB flash drives, USB HDDs, or a DVD writer. To back up recorded files: 1.
  • Page 22 4. Enter the Export interface, choose a backup device, and then click Export to start exporting. You can choose to export the record files and the related log files to the Note: player. 5. Check the backup results. Choose the record file in the Export interface, and then press to check it.
  • Page 23: Understanding Camera Capacity In An Nvr

    Understanding camera capacity in an NVR When setting up your NVR and cameras, you may notice that some of the camera images may not display in Live View. This most often occurs when you are displaying images in 1+5 mode, or 1+7 mode because the total bit rate for all cameras is exceeding the NVR’s capacity.
  • Page 24: Adjusting Settings

    Each channel can support a different camera, as long as they do not exceed the total bit rate limit. It is entirely possible to mix 5 MP cameras with 4CIF IP cameras, etc. Generally, 5 MP at 30 fps requires around 20 Mbps for best quality.
  • Page 25: Specifications

    Specifications Video/audio IP video input 4-ch input Two-way audio input 1-ch, RCA (2.0 Vp-p, 1 kΩ) Network Incoming bandwidth 20 Mbps Output bandwidth 40 Mbps Remote connection Video/audio Recording resolution 5 MP/ 3 MP/ 1080 p/ UXGA/ 720 P/ VGA/ output 4 CIF/ DCIF/ 2 CIF/ CIF/ QCIF HDMI/VGA output...
  • Page 26: Regulatory Information

    Regulatory information DISCLAIMER Underwriters Laboratories Inc. (UL) has not tested the performance or reliability of the security or signaling aspects of this product. UL has only tested for fire, shock or casualty hazards as outlined in UL’s Standard(s) for Safety, UL60950-1. UL Certification does not cover the performance or reliability of the security or signaling aspects of this product.
  • Page 27: Warranty Information

    Warranty information Clare Controls offers a three (3) year limited warranty on original Clare Controls components, from the date of shipment from Clare Controls. To view complete limited warranty details, including limitations and exclusions, www.clarecontrols.com/warranty. Scan the code to view product warranty details.
