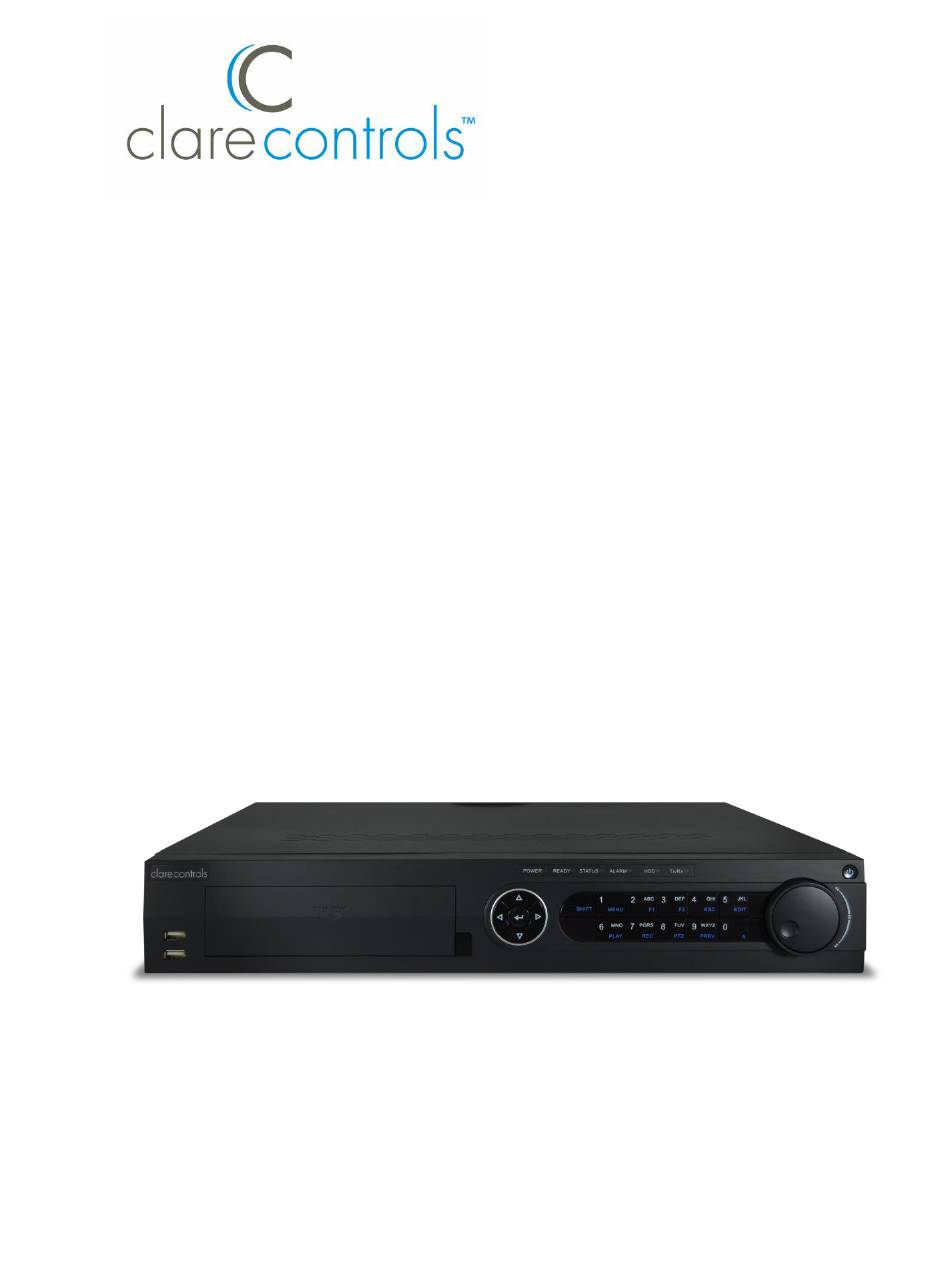

- Page 1 ClareVision Network Video Recorder Installation Guide Model CV-M321620-08 Last modified: 09/29/2016 Doc ID - 622 • Rev 04...
- Page 2 Clare Controls, LLC., except where specifically permitted under US and international copyright law. The ClareVision name is a trademark of Clare Controls, LLC. Trademarks Other trade names used in this document may be trademarks or registered trademarks of the manufacturers or vendors of the respective products.
-
Page 3: Table Of Contents
Content Package contents...1 NVR pre-installation...1 NVR installation...1 Hard disk installation (optional)...2 Front panel...4 Rear panel...7 Peripheral connections...8 Wiring of alarm input...8 Wiring of alarm output...8 Using of alarm connectors...9 Controller connection...9 HDD storage calculation chart...10 Menu operation...11 Startup and shutdown...11 Using the Setup Wizard...12 Live View...15 Adding and configuring IP cameras...15... -
Page 5: Package Contents
Package contents 1 X 32 channel NVR appliance 1 X AC power cord 1 X optical mouse 1 X remote control 2 X rack mount ears 16 X mounting screws 1 X SATA hard drive cable NVR pre-installation This NVR is highly advanced surveillance equipment that should be installed with care. -
Page 6: Hard Disk Installation (Optional)
Hard disk installation (optional) Additional SATA hard disks can be installed in your NVR. Disconnect the power from the NVR before installing a hard disk drive (HDD). A factory recommended HDD should be used for this installation. Up to 8 SATA hard disks can be installed on your NVR. Tools required: Philips head screwdriver. - Page 7 4. Place the HDD on the bottom of the device, and then fasten the screws on the bottom to attach the HDD. ClareVision Network Video Recorder Installation Guide...
-
Page 8: Front Panel
Front panel No. Name Setting Function Description Status POWER Turns green when NVR is powered up. indicators READY The LED is green when the device is running normally. STATUS The light is green when the IR remote control is enabled. The light is red when the function of the composite keys (SHIFT) are used. - Page 9 No. Name Setting Function Description Composite SHIFT Switch between the numeric or letter input and keys functions of the composite keys. (Input letter or numbers when the light is out; Realize functions when the light is red.) 1/MENU Enter the numeral “1” Access the main menu interface.
- Page 10 No. Name Setting Function Description JOG SHUTTLE control Move the active selection in a menu. It will move the selection up and down. In Live View mode, it can be used to cycle through different channels. In the Playback mode, it can be used to jump 30 seconds forward/backward in video files.
-
Page 11: Rear Panel
Rear panel (4) (5) RS-485 ALARM IN ALARM OUT eSATA (10) (11) (12) (13) (14) (15) Item Description eSATA (Optional) Connects an external hard drive. RS-232 Interface Connector for the RS-232 devices. VIDEO OUT BNC connector for the video output. VGA output 15 pin connector. -
Page 12: Peripheral Connections
Peripheral connections Wiring of alarm input The alarm input is an open/closed relay. To connect the alarm input to the device, use the following diagram. If the alarm input is not an open/close relay, connect an external relay Note: between the alarm input and the device. RS-485 ALARM IN ALARM OUT... -
Page 13: Using Of Alarm Connectors
Example: If you connect an AC load to the alarm output 3 of the NVR, then you must remove the JP3 jumper. Using of alarm connectors To connect alarm devices to the NVR: 1. Disconnect the terminal block from the ALARM IN /ALARM OUT port. 2. -
Page 14: Hdd Storage Calculation Chart
HDD storage calculation chart The following chart shows an estimation of storage space used based on recording at one channel for an hour at a fixed bit rate. Table 1: Storage calculation chart Bitrate Storage Used 96 K 42 M 128 K 56 M 160 K... -
Page 15: Menu Operation
Menu operation Startup and shutdown Proper startup and shutdown procedures are crucial to expanding the life of the NVR. To start your NVR: 1. Connect to a monitor using VGA or HDMI. 2. Check that the power supply is plugged into an electrical outlet, and then flip the rear power switch to ON. -
Page 16: Using The Setup Wizard
Using the Setup Wizard By default, the Setup Wizard starts once the NVR has loaded. To operate the Setup Wizard: 1. The Setup Wizard can walk you through some important settings of the NVR. If you don’t want to use the Setup Wizard at this time, click Cancel. You can also choose to use the Setup Wizard the next time by selecting the Start wizard when device starts? checkbox. - Page 17 6. Enter the correct time zone, date, and time for your location in their corresponding fields. 7. After the time settings, click Next to enter the Network Setup window. The internal NIC IPv4 address should be configured for the cameras connecting to the PoE network interface of the NVR.
- Page 18 9. To initialize the desired HDD, click Init. Initialization removes all the data saved in the HDD. Note: The HDDs are initialized in the factory and are ready to record out of the box. 10. Click Next. You will enter the Adding IP Camera interface. 11.
-
Page 19: Live View
14. Click Copy to copy the settings to other channels. 15. Click OK to complete the Setup Wizard and return to Live View. Live View Some icons are provided on the screen in Live View mode to indicate different camera status. Icons appear at the top right of the screen for each channel. They show the status of the record and alarm in the channel so that you can identify problems quickly. -
Page 20: Configuring Basic Parameters Of Ip Cameras
To add the online cameras with same network segment: 1. Click Search to search the online cameras. 2. Select the checkboxes for the cameras to be added. 3. Click Quick Add to add the cameras. To add other IP cameras: 1. - Page 21 Table 3: Basic icons Icon Description Edit basic parameters of the camera Delete the IP camera Get the live view of the camera To configure basic parameters: 1. Click the icon to edit the parameters. You can edit the IP address, protocol, and other parameters.
-
Page 22: Ptz Control
2. You can edit the network information and the password of the camera. 3. Click Apply to save the settings, and then click OK to exit the interface. PTZ control Before you begin, ensure the PTZ is properly connected to the NVR through the RS-485 interface. -
Page 23: Playback
Table 4: PZT control icons Icon Description Direction button and the auto-cycle button The speed of the PTZ movement 3D-Zoom Patrol Previous item Stop the patrol or pattern movement Zoom+, Focus+, Iris+ Light on/off Image Centralization Pattern Next item Minimize windows Zoom-, Focus-, Iris- Wiper on/off Preset... -
Page 24: Playback By Channel
Playback by channel To playback by channel: 1. Enter the Playback menu. Mouse: Right-click a channel in Live View mode and select from the menu. Front Panel: Press PLAY to play back the record files of the channel under single-screen live view. Under multi-screen live view, record files of the selected channel will be played back. -
Page 25: Backup
Check the channel or channels if you want to switch playback to another channel, or execute simultaneous playback of multiple channels. Backup Recorded files can be backed up to various devices, such as USB flash drives, USB HDDs, or a DVD writer. To back up recorded files: 1. - Page 26 You can choose to export the record file(s) and the related log file(s), or Note: the player. 5. Check the backup results. Choose the record file in the Export interface, and then press to check it. ClareVision Network Video Recorder Installation Guide...
-
Page 27: Understanding Camera Capacity In An Nvr
Understanding camera capacity in an NVR When setting up your NVR and cameras, you may notice that some of the camera images may not display in Live View. This most often occurs when you are displaying images in 1+5 mode, or 1+7 mode because the total bit rate for all cameras is exceeding the NVR’s capacity. -
Page 28: Adjusting Settings
Each channel can support a different camera, as long as they do not exceed the total bit rate limit. It is entirely possible to mix 5 MP cameras with 4CIF IP cameras, etc. Generally, 5 MP at 30 fps requires around 20 Mbps for best quality. -
Page 29: Specifications
Specifications Video/Audio IP video input 32-ch input Two-way audio 1-ch, BNC (2.0 Vp-p, 1k Ω) Video/Audio Recording resolution 5 MP /3 MP /1080P /UXGA /720P /VGA /4CIF /DCIF output /2CIF /CIF /QCIF Frame rate Main stream: 25 fps (P) / 30 fps (N) Sub-stream: 25 fps (P) / 30 fps (N) CVBS output 1-ch, BNC (1.0 Vp-p, 75 Ω) - Page 30 Others Power supply 100 to 240 VAC, 6.3 A, 50 to 60 Hz Consumption ≤ 45 W (without hard disk or DVD-R/W) Working temperature 14 to 131ºF (-10 to 55 ºC). Working humidity 10 to 90 % Chassis 19-inch rack-mounted 2U chassis Dimensions 17.5 ×...
-
Page 31: Regulatory Information
Regulatory information DISCLAIMER Underwriters Laboratories Inc. (UL) has not tested the performance or reliability of the security or signaling aspects of this product. UL has only tested for fire, shock or casualty hazards as outlined in UL’s Standard(s) for Safety, UL60950-1. UL Certification does not cover the performance or reliability of the security or signaling aspects of this product. -
Page 32: Warranty Information
Warranty information Clare Controls offers a three (3) year limited warranty on original Clare Controls components, from the date of shipment from Clare Controls. To view complete limited warranty details, including limitations and exclusions, www.clarecontrols.com/warranty. Scan the code to view product warranty details.
