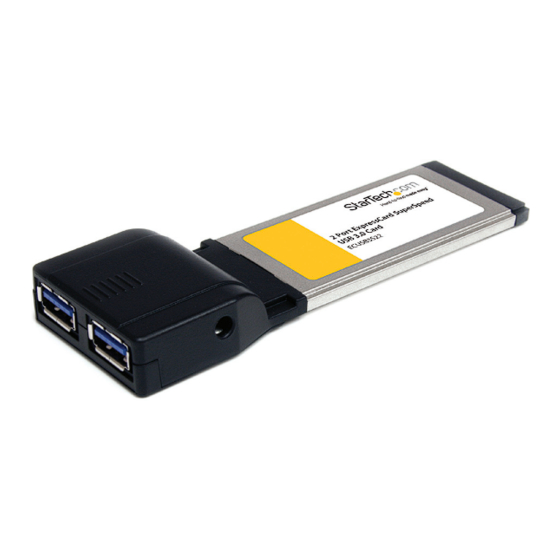

2 Port ExpressCard SuperSpeed USB 3.0 Card
ECUSB3S22
*actual product may vary from photos
DE: Bedienungsanleitung - de.startech.com
FR: Guide de l'utilisateur - fr.startech.com
ES: Guía del usuario - es.startech.com
IT: Guida per l'uso - it.startech.com
NL: Gebruiksaanwijzing - nl.startech.com
PT: Guia do usuário - pt.startech.com
For the most up-to-date information, please visit: www.startech.com
Manual Revision: 09/01/2011
Advertisement
Table of Contents
Related Manuals for StarTech.com ECUSB3S22
Summary of Contents for StarTech.com ECUSB3S22
- Page 1 DE: Bedienungsanleitung - de.startech.com FR: Guide de l'utilisateur - fr.startech.com ES: Guía del usuario - es.startech.com IT: Guida per l'uso - it.startech.com NL: Gebruiksaanwijzing - nl.startech.com PT: Guia do usuário - pt.startech.com For the most up-to-date information, please visit: www.startech.com Manual Revision: 09/01/2011...
- Page 2 StarTech.com. Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to which this manual applies by the third-party company in question. Regardless of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby...
-
Page 3: Table Of Contents
Table of Contents Introduction ....................1 Packaging Contents ..........................1 System Requirements ..........................1 Installation ....................2 Hardware Installation ..........................2 Driver Installation ............................2 Verifying Installation ..........................3 Specifications ..................4 Technical Support ..................5 Warranty Information ................5 Instruction Manual... -
Page 4: Introduction
Introduction The ECUSB3S22 2-Port ExpressCard USB 3.0 Card adds 2 SuperSpeed USB 3.0 ports to an ExpressCard-enabled computer system, using a 34mm form factor that will fit in both 34mm and 54mm slots, along with ports mounted side-by-side to provide room for easy access. -
Page 5: Installation
NOTE: Some ExpressCard/54 slots do not firmly hold an ExpressCard/34 card so a 34mm to 54mm stabilizer bracket may be necessary (StarTech.com ID: ECBRACKET). OPTIONAL: For some high-powered USB devices, additional power may be required from the USB port. -
Page 6: Verifying Installation
If Autorun does not start, Go into “My Computer” and access the CD/DVD drive that the CD is in. 3. Run the “setup.exe” file located in “NEC 7202”. Follow the onscreen instructions to complete the driver installation. Verifying Installation Windows XP/Server 2003/Vista/7 From the main desktop, right-click on “My Computer”... -
Page 7: Specifications
Specifications Host Interface ExpressCard 2.0 Form Factor ExpressCard/34 (34mm) Chipset ID NEC 720200 Connectors 2 x USB 3.0 type A female Maximum Data Transfer Rate USB 3.0: 5 Gbps Operating Temperature 0°C ~ 50°C (32°F ~ 122°F) Storage Temperature -20°C ~ 150°C (-4°F ~ 302°F) Dimensions 115.0mm x 34.0mm x 13.0mm Weight... -
Page 8: Technical Support
Limitation of Liability In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their officers, directors, employees or agents) for any damages (whether direct or indirect, special, punitive, incidental, consequential, or otherwise), loss of profits, loss of business, or any pecuniary loss, arising out of or related to the use of the product exceed the actual price paid for the product. - Page 9 StarTech.com is an ISO 9001 Registered manufacturer of connectivity and technology parts. StarTech.com was founded in 1985 and has operations in the United States, Canada, the United Kingdom and Taiwan servicing a worldwide market.
