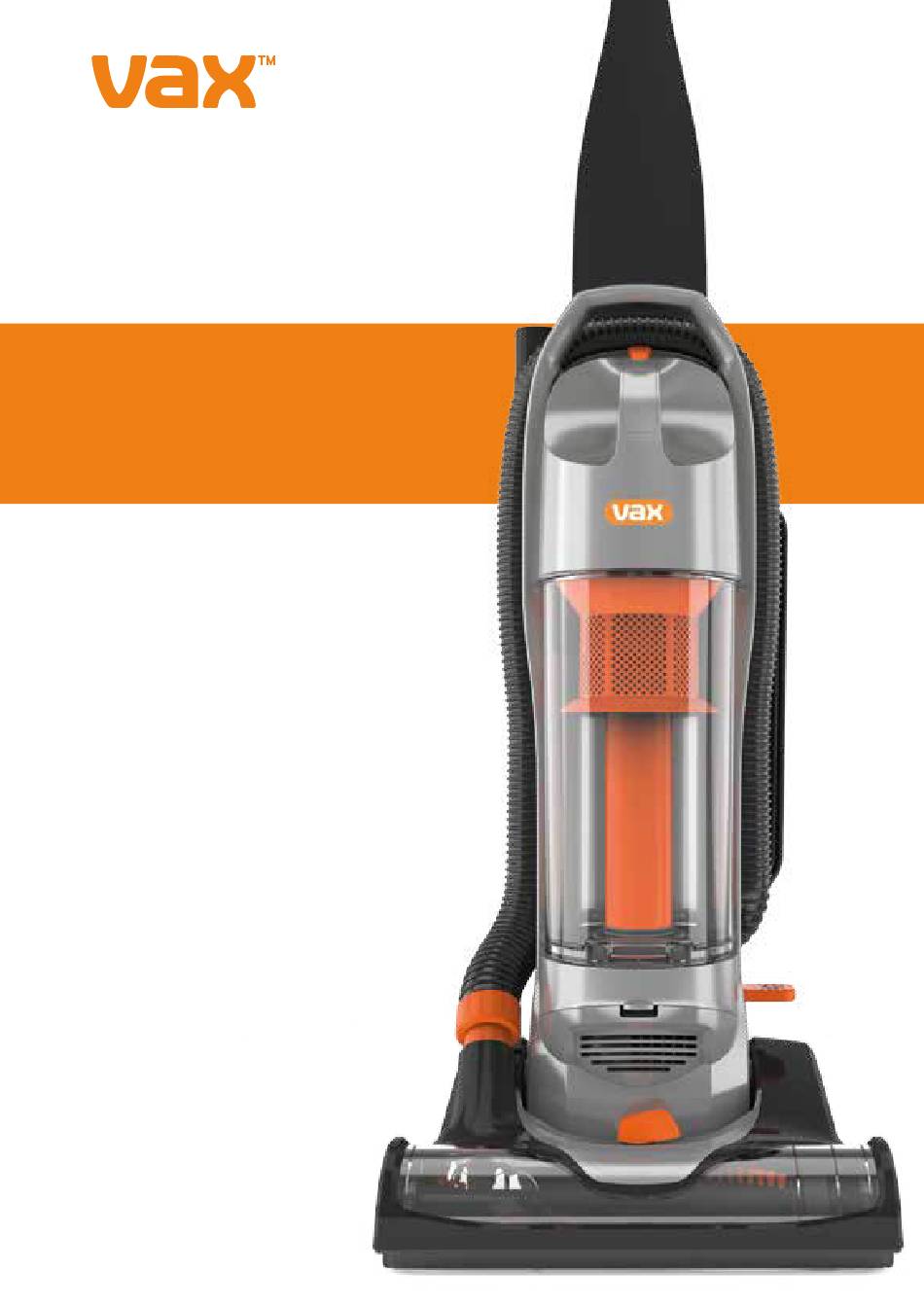

- Page 1 PowerCompact CYCLONIC BAGLESS UPRIGHT VACUUM LET’S GET STARTED. U85-PC-Be U85-PC-Pe...
- Page 2 Let’s talk safety This vacuum cleaner is intended for household use only and NOT for commercial or industrial use. • Only use the vacuum cleaner indoors on dry surfaces and keep Basic the area you’re cleaning well lit. safety • Keep fingers, hair and loose clothing from moving parts and precautions openings whilst using the vacuum cleaner.
- Page 3 Any cleaning or maintenance of your vacuum cleaner should not be made by children without supervision and ensure they don’t play with the vacuum cleaner. Only Vax recommend tools should be used with this vacuum cleaner. • Don’t vacuum up any flammable or combustible materials (lighter fluid, petrol, kerosene etc.) or use the vacuum cleaner in an area with explosive vapours...
- Page 4 Calls are charged at the UK local rate. Please make a note of the serial number and model number of the product before calling. Alternatively, you can write to us at: Vax Ltd., Plot 302, Stonebridge Cross Business Park, Hampton Lovett, Droitwich, WR9 0LW, UK This user guide can be found online at: vax.co.uk/support @VaxUK...
- Page 5 Power Compact Contents (Included with all models) Included with Let’s talk safety your machine Getting to know your machine Hard Floor Tool Getting started Extension Hose 1.5m Using your machine Dusting Brush Taking care of your machine Crevice Tool Let’s talk technical Extension Tube Accessories Accessory Hose...
- Page 6 Wattage See rating label on machine for details Belt Kit (Type 25) Dusting Brush (Type 10) 1-1-134426-00 1-1-134411 -00 Cord length 8m TurboTool (Type 6*) Weight 5.25kg 1-1-134419-00 * Selected models only. To purchase consumables and accessories, please visit vax.co.uk Subject to technical change without notice.
- Page 7 Getting started PLEASE READ ‘LET’S TALK SAFETY’ AT THE BEGINNING BEFORE USE Before you begin cleaning CAUTION: Always switch off the vacuum cleaner before connecting or disconnecting the hose/attachments or removing and emptying the dirt container. IMPORTANT: The vacuum cleaner is equipped with a thermal cut-out. If for any reason the vacuum cleaner does overheat the thermostat will automatically turn the vacuum cleaner off.
- Page 8 Using your machine IMPORTANT: Always switch off and unplug the vacuum cleaner before connecting or disconnecting the hose/ attachments, or removing and emptying the dirt container. The accessories can be attached to the extension tube or directly to the hose. When using accessories on the hose/extension tube raise the height adjuster to the highest setting.
- Page 9 Using your machine Using on the stairs This vacuum cleaner has a constantly rotating brushbar. When cleaning on stairs raise the height adjuster dial to the highest setting. The brushbar must overhang the stair tread. Always take care when cleaning stairs. CAUTION Hold vacuum cleaner with brushbar over tread of stairs.
- Page 10 Taking care of your machine IMPORTANT: The motor is equipped with a thermal cut-out. If for any reason the machine should overheat, the thermostat will automatically turn the machine off. Switch off and unplug the vacuum cleaner. Check the machine for blockages and clean the filters. Wash the pre-motor filters with warm water (40°C max) and leave for 24 hours or until fully dry before replacing into the machine.
- Page 11 Taking care of your machine Cleaning the separator Lift separator Tap separator over Using a soft brush Line up the tabs The separator out of the dirt a bin to remove clean any dirt/debris on the separator will sit between container.
- Page 12 Taking care of your machine Storing extension hose on vacuum cleaner (optional) Remove hose end from Attach accessory hose the floorhead. to extension hose. Wrap hose around Bring hose over and behind Insert the hose into the floorhead. hose guide. the carry handle.
- Page 13 Let’s talk technical IMPORTANT: Unplug and switch off vacuum cleaner before performing maintenance or troubleshooting checks. Removing debris from the brushbar Using a pair of scissors remove any threads or hair caught around the brushbar. Removing dirt/debris from TurboTool (some models only) Slide the locking ring to remove.
- Page 14 Let’s talk technical Removing a blockage from the hose Remove hose end Lift clip under the Pull latch out and Line up latch, push until from the floorhead. hose inlet. remove hose. it clicks into place. Test for blockages by dropping a small ball of paper through the those.
- Page 15 Accessories Don’t forget your accessories! Order at: www.vax.co.uk/spares-and-solutions Pro Cleaning Kit (Type 2) 1-1-133326-00 All our best tools all in one kit that makes cleaning your home quicker, easier and with even better results. We’ve taken care of cleaning all of the hard to reach...
- Page 16 What to do if it goes wrong Problem Solution • Check the ‘This pack contains’ panel on the box to make sure the part is included with your vacuum cleaner. Is there an accessory missing? • The plug may not be fully pushed into the electrical socket. •...
- Page 17 Getting in touch † Registration required. Terms and conditions apply, see vax.co.uk for details. * Calls are charged at the UK local rate. Please make a note of the serial number and model number of the product before calling.
- Page 18 Notes...
- Page 19 Notes...
- Page 20 Check with your Local Authority or retailer for recycling advice. © 2016 Vax Limited. All rights reserved. The VAX trade mark and Vax lozenge are the property of Techtronic Floor Care Technology Ltd and are registered in the EU and may be pending or registered in other countries.
