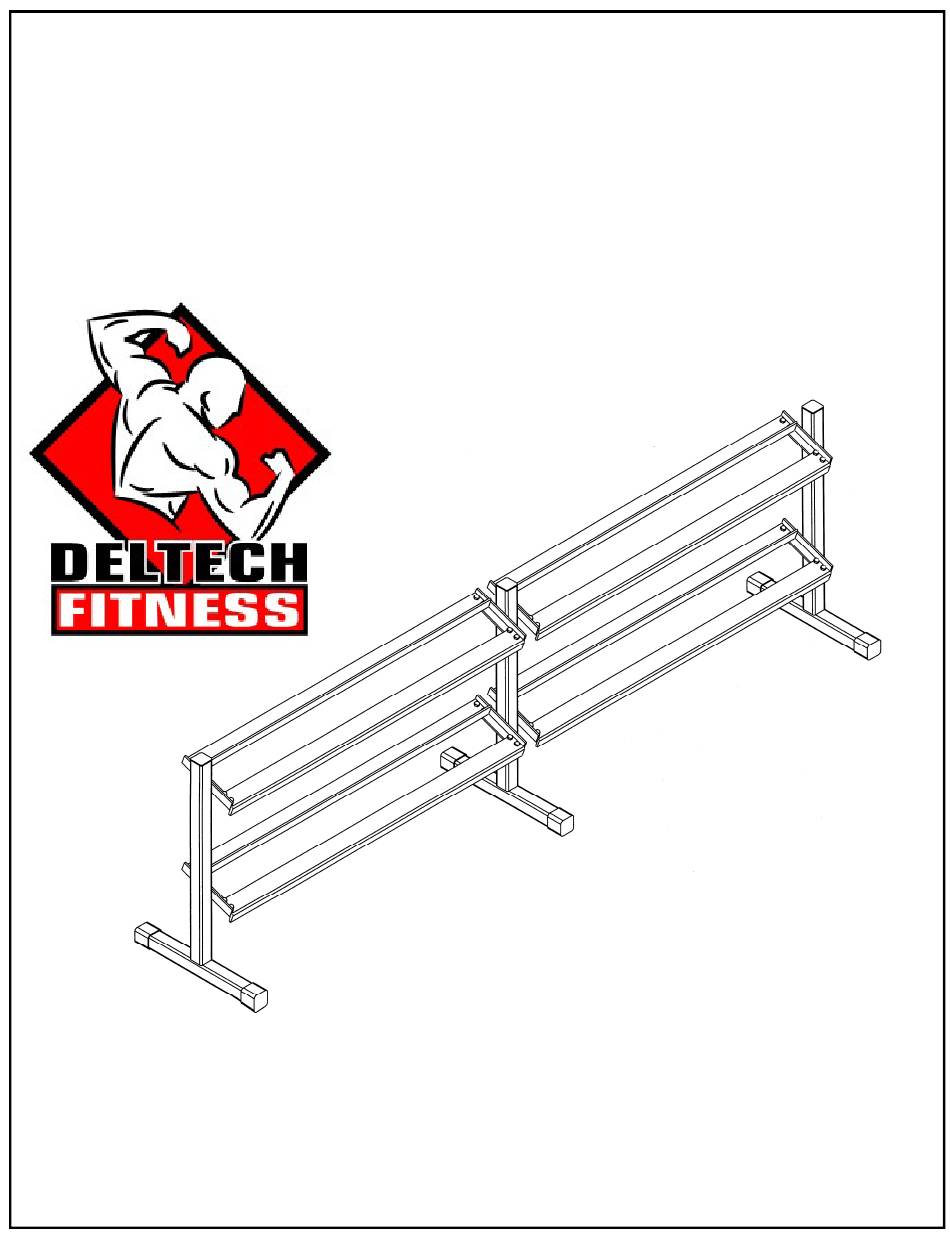

- Page 1 DF512/DF514 DOUBLE 2 TIER DUMBBELL RACK Assembly Manual (888) 258-0533 FOR YOUR SAFETY READ ALL INSTRUCTIONS CAREFULLY *NOTE IF YOU ARE MISSING HARDWARE OR HAVE ANY FIT UP PROBLEMS PLEASE CONTACT DELTECH FITNESS TOLL FREE (888) 258-0533...
- Page 2 R.H. UPRIGHT L.H. UPRIGHT QTY 1 QTY 1 QTY 1 CROSSMEMBER HARDWARE PACK INSTRUCTION SHEET QTY 8 QTY 1 QTY 1 *NOTE IF YOU ARE MISSING HARDWARE OR HAVE ANY FIT UP PROBLEMS PLEASE CONTACT DELTECH FITNESS TOLL FREE (888) 258-0533...
- Page 3 M10 x 25MM BOLT RUBBER SHOE M10 LOCKNUT QTY 3 QTY 6 QTY 32 QTY 32 M10 WASHER QTY 64 *NOTE IF YOU ARE MISSING HARDWARE OR HAVE ANY FIT UP PROBLEMS PLEASE CONTACT DELTECH FITNESS TOLL FREE (888) 258-0533...
- Page 4 INSTALL THE SQUARE CAP (E) & RUBBER BOOTS (F) TO LEFT, CENTER AND RIGHT HAND UPRIGHTS.
- Page 5 ATTACH THE LEFT UPRIGHT (A) AND CENTER UPRIGHT (C) TO THE CROSS MEMBERS USING THE M10 x25MM BOLTS (G), M10 WASHERS (I), AND M10 LOCKNUTS (H). REPEAT FOR OTHER SIDE OF RACK. MAKE MAKE SURE ALL BOLTS ARE TIGHT BEFORE USE.
- Page 6 SAFETY NOTICE WARNING: THE USER OF THIS WEIGHT EQUIPMENT ASSUMES THE POSSIBILITY OF INJURY BY EXERCISING ON THIS EQUIPMENT. THE POSSIBILITY OF RISK CAN BE REDUCED BY ALWAYS FOLLOWING THESE SIMPLE RULES: 1) BEFORE BEGINNING ANY EXERCISE PROGRAM, CONSULT YOUR DOCTOR FOR A COMPLETE PHYSICAL EXAMINATION AND SUGGESTED EXERCISE PROGRAM SPECIFIC FOR YOU.
