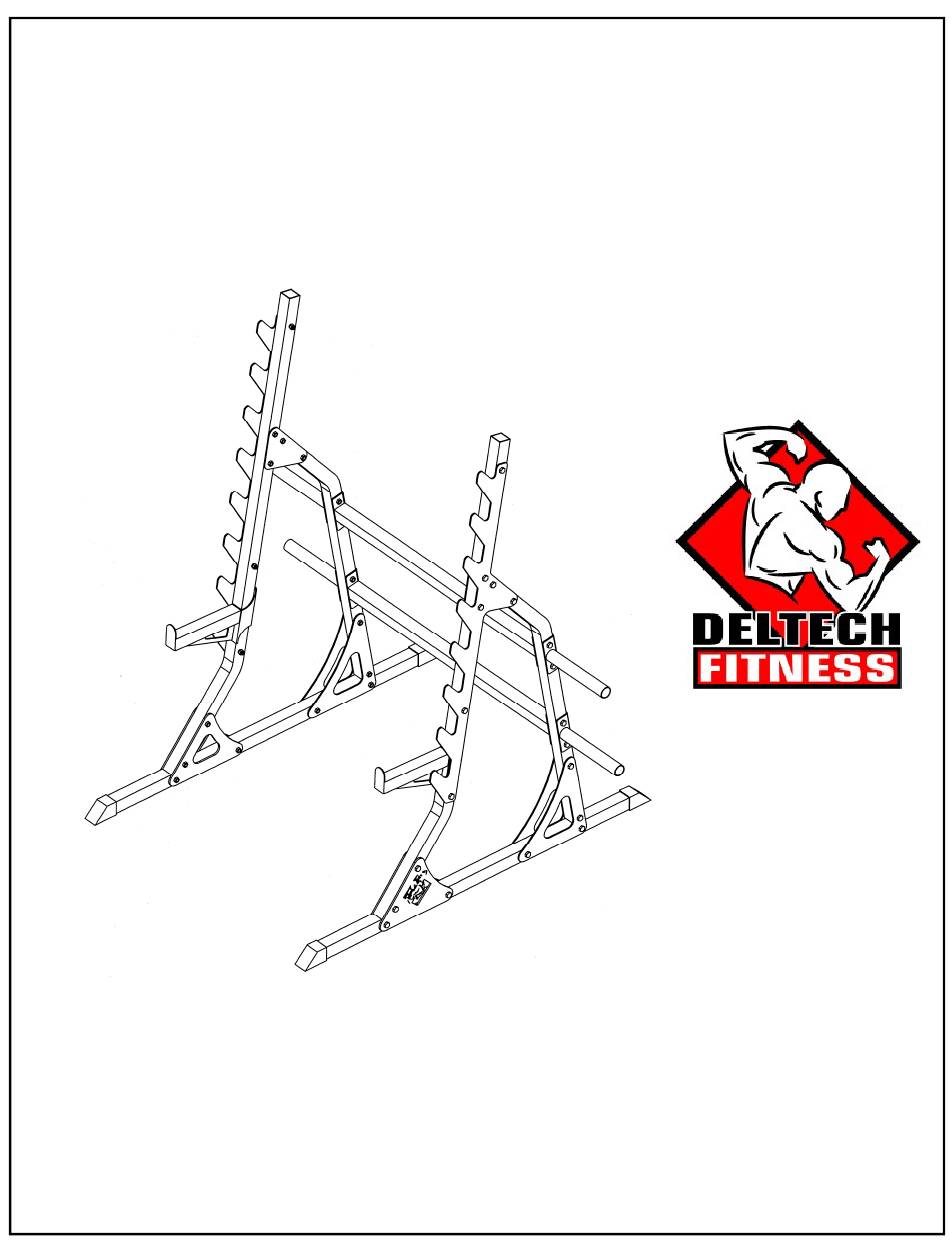

- Page 1 DF4400 SQUAT RACK Assembly Manual (888) 258-0533 FOR YOUR SAFETY READ ALL INSTRUCTIONS CAREFULLY *NOTE IF YOU ARE MISSING HARDWARE OR HAVE ANY FIT UP PROBLEMS PLEASE CONTACT DELTECH FITNESS TOLL FREE (888) 258-0533...
- Page 2 QTY 4 QTY 4 RUBBER SHOE LH & RH WEIGHT SUP- CROSSMEMBER QTY 4 PORT QTY 2 QTY 1 EACH *NOTE IF YOU ARE MISSING HARDWARE OR HAVE ANY FIT UP PROBLEMS PLEASE CONTACT DELTECH FITNESS TOLL FREE (888) 258-0533...
- Page 3 M12 x 75MM BOLT QTY 76 QTY 38 QTY 4 QTY 38 SQUARE CAP QTY 2 FOR YOUR SAFETY READ ALL INSTRUCTIONS CAREFULLY *NOTE IF YOU ARE MISSING HARDWARE OR HAVE ANY FIT UP PROBLEMS PLEASE CONTACT DELTECH FITNESS TOLL FREE (888) 258-0533...
- Page 4 (NOTE: THE NUTS USED ON THIS RACK ARE LOCK NUTS, THIS MEANS YOU MUST TIGHTEN THEM DOWN PAST THE PLASTIC INSERT.) TOOLS REQUIRED FOR ASSEMBLY ADJUSTABLE WRENCHES OR METRIC SOCKET SET ATTACH THE RUBBER SHOES (K) TO THE LEFT & RIGHT FEET (A)
- Page 5 ATTACH THE FRONT TRIANGLE FLANGE (F) AND REAR TRIANGLE FLANGE (G) TO THE FOOT USING M12 x 75MM BOLT (M), M12 WASHER (O), AND M12 LOCK- NUT (P). DO NOT FULLY TIGHTEN NUTS AT THIS TIME. REPEAT FOR OTHER FOOT.
- Page 6 INSTALL THE FRONT UPRIGHT (C) INTO THE FRONT TRIANGLE FLANGES USING M12 x 75MM BOLTS (M), M12 WASHERS (O), AND M12 LOCKNUTS (P). INSTALL THE REAR UPRIGHT (B) INTO THE REAR TRIANGLE FLANGES USING M12 x 75MM BOLTS (M), M12 WASHERS (O), AND M12 LOCKNUTS (P). INSTALL SQUARE CAP (R) INTO TOP OF FRONT UPRIGHT (C).
- Page 7 ATTACH LADDER RACK (D) USING M12 x 75MM BOLTS (M), M12 WASHERS (O), AND M12 LOCKNUTS (P). INSTALL UPPER TRIANGLE FLANGE (H) WHERE FRONT AND BACK UPRIGHTS MEET. REPEAT FOR OTHER SIDE...
- Page 8 INSTALL UPPER CROSSMEMBER (J) AND WEIGHT PLATE SUPPORT (E) TO REAR UPRIGHT USING M12 x 75MM BOLTS (M), M12 WASHERS (O), M12 LOCKNUTS (P). REPEAT FOR LOWER CROSSMEMBER.
- Page 9 INSTALL ROUND CAPS (Q).
- Page 10 TO INSTALL THE WEIGHT CATCHES, HOLD THEM SIDEWAYS AND INSERT THE LOCK PIN INTO THE DESIRED HOLE AND SLIDE FORWARD. TO LOCK INTO PLACE ROTATE DOWNWARD UNTIL IT LOCKS INTO PLACE IN THE FRONT UPRIGHT.
-
Page 11: Safety Notice
SAFETY NOTICE WARNING: THE USER OF THIS WEIGHT EQUIPMENT ASSUMES THE POSSIBILITY OF INJURY BY EXERCISING ON THIS EQUIPMENT. THE POSSIBILITY OF RISK CAN BE REDUCED BY ALWAYS FOLLOWING THESE SIMPLE RULES: 1) BEFORE BEGINNING ANY EXERCISE PROGRAM, CONSULT YOUR DOCTOR FOR A COMPLETE PHYSICAL EXAMINATION AND SUGGESTED EXERCISE PROGRAM SPECIFIC FOR YOU.
