Summary of Contents for DS18 INFINITE PWSI200A
-

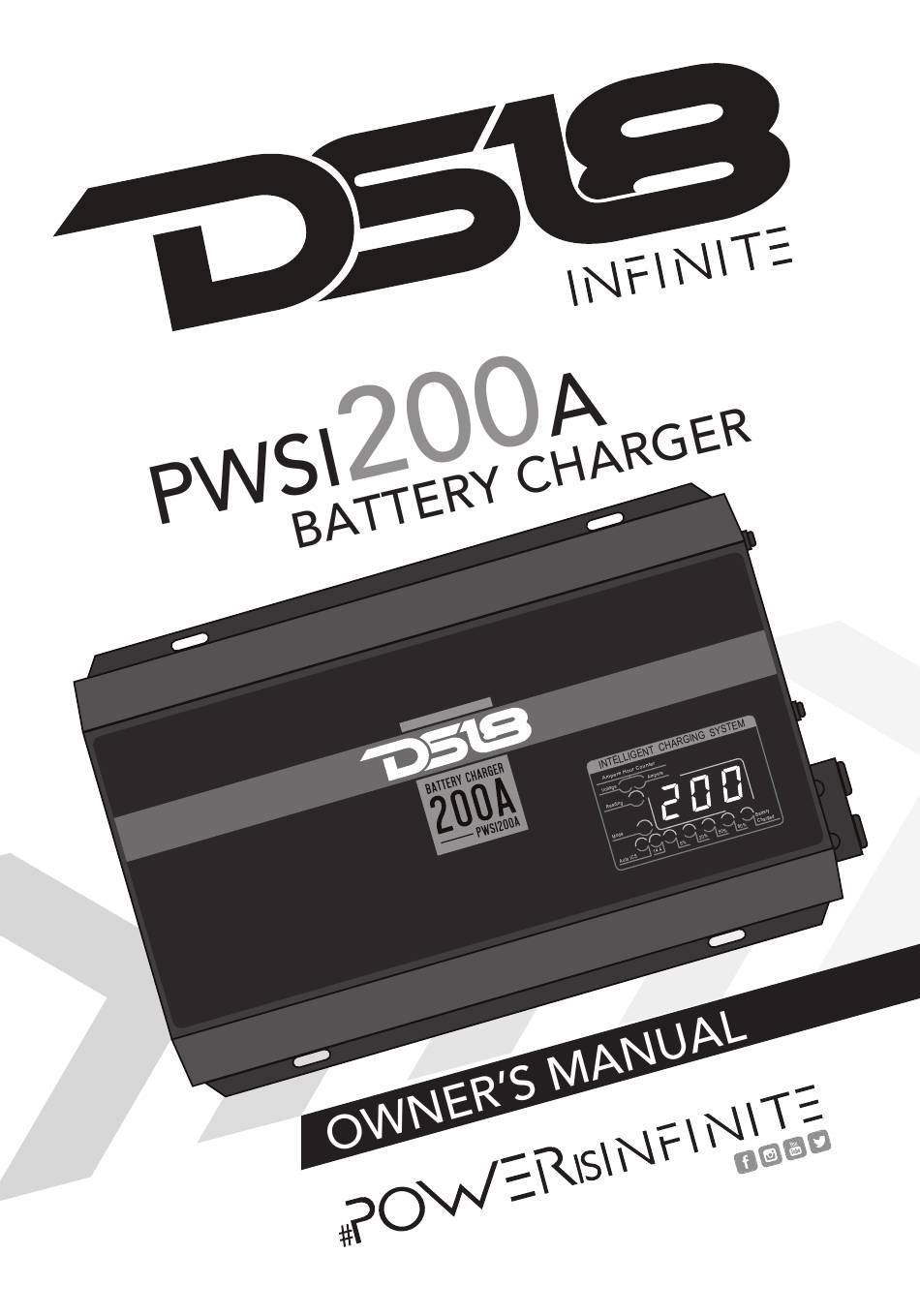

Page 2: Battery Charger

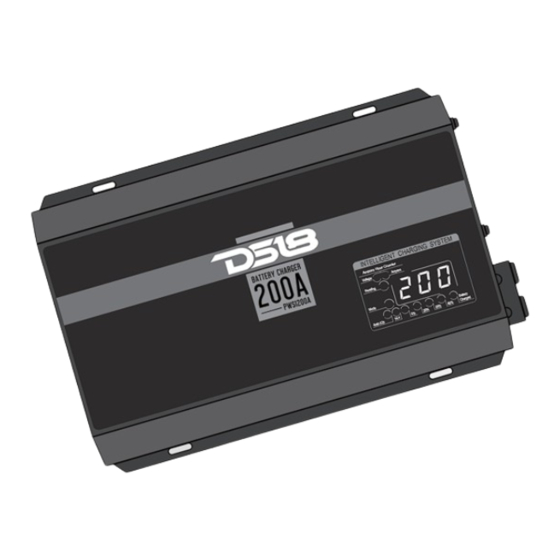

BATTERY CHARGER PWSI200A PRESENTATION The PWSI200A Battery Charger is a high power supply that enables you to power and charge automotive battery (s), delivering a maximum current of 200A at the output and operates in two modes: 14.4V or Auto ICS. Auto Intelligent Charging System (ICS) enhances battery charging efficiency by extending battery life. -
Page 3: Specifications
PWSI200A BATTERY CHARGER SPECIFICATIONS 1. LEDs that indicate the monitoring of Voltage or Current or Ampere Counter Time "2 access leds" 2. Voltage or Current reading mode selector switch or Ampere Hour meter 3. Voltage mode selector switch 14.4V or Auto SCI 4. -
Page 4: Diagram Of Connections
PWSI200A BATTERY CHARGER DIAGRAM OF CONNECTIONS Each PWSI200A battery charger can power about 10000 Watts of music power, using a parallel battery to supply peak consumption. You can use as many PWSI200A battery chargers as you need, keeping in mind that each one maintains about 10000 Watts of music power, it being important to note that for this the operating mode must be the same in all sources in parallel mode (eg All in 14.4V mode or all in Auto ICS). -
Page 5: Technical Specifications
2.75 SERVICE WARRANTY Should your PWSI200A require service please consult with the dealerfrom which it was purchased, or DS18 Local Dealer. Do not attempt to return your PWSI200A directly to us without first calling for a Return Authorization Number. Units received without an accompanying Return Authorization Number will be processed slower.
