- Page 1 SIMATIC RTLS4040T Introduction Device description SIMATIC RTLS Installation & operation Technical specifications Localization systems SIMATIC RTLS4040T Approvals Operating Instructions 05/2023 C79000-G8976-C596-04...
- Page 2 Note the following: WARNING Siemens products may only be used for the applications described in the catalog and in the relevant technical documentation. If products and components from other manufacturers are used, these must be recommended or approved by Siemens. Proper transport, storage, installation, assembly, commissioning, operation and maintenance are required to ensure that the products operate safely and without any problems.
-
Page 3: Table Of Contents
Cleaning and maintenance ....................15 Charging instructions ......................15 Technical specifications ........................17 RTLS charging station technical specifications ..............18 Technical specifications of the mounting clip for RTLS transponder ........19 Approvals ............................. 21 SIMATIC RTLS4040T Operating Instructions, 05/2023, C79000-G8976-C596-04... - Page 4 Table of contents SIMATIC RTLS4040T Operating Instructions, 05/2023, C79000-G8976-C596-04...
-
Page 5: Introduction
Introduction Purpose of the operating instructions These operating instructions will assist you in commissioning the SIMATIC RTLS4040T transponder. The configuration and the integration of the transponders in a network are not described in these operating instructions. Validity of the operating instructions These operating instructions apply to the following transponder: •... - Page 6 Introduction Industry Online Support In addition to the product documentation, you are supported by the comprehensive online information platform of Siemens Industry Online Support at the following Internet address: Link: (https://support.industry.siemens.com/cs/de/en/) Apart from news, there you will also find: • Project information: Manuals, FAQs, downloads, application examples etc.
- Page 7 Use of product versions that are no longer supported, and failure to apply latest updates may increase customer’s exposure to cyber threats. To ensure that you are always informed about product updates, subscribe to the Siemens Industrial Security RSS feed at: (https://www.siemens.com/cert) Note on firmware/software support Check regularly for new firmware/software versions or security updates and apply them.
- Page 8 Do not dispose of the products at public disposal sites. For environmentally compliant recycling and disposal of your electronic waste, please contact a company certified for the disposal of electronic waste or your Siemens representative. Note the different national regulations.
-
Page 9: Device Description

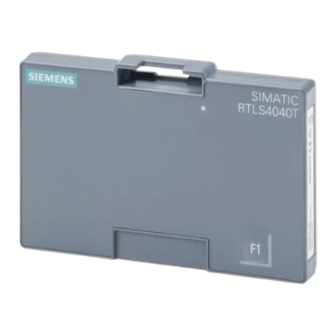

Device description Characteristics SIMATIC RTLS4040T Characteristics Setup ① Status indicators (LED) ② F1 function key General The transponder is a mobile device for localization in the RTLS localization system. It sends data to gateways to determine its position. The gateways transmit the data to the Locating Manager Server. -
Page 10: Led Operation Display & Function Button
"low power" message is generated and the LED flashes red. Refer to the notes in the section "Operation (Page 15)". SIMATIC RTLS4040T Operating Instructions, 05/2023, C79000-G8976-C596-04... -
Page 11: Dimension Drawing Of Rtls4040T
2.4 Dimension drawing of RTLS4040T Dimension drawing of RTLS4040T Figure 2-1 Dimension drawing SIMATIC RTLS4040T - All dimensions are given in millimeters Dimension drawing of RTLS charging station Figure 2-2 Dimension drawing of SIMATIC RTLS charging station (not included with the product) - All... -
Page 12: Dimension Drawing Of Mounting Clip For Rtls Transponder
Device description 2.6 Dimension drawing of mounting clip for RTLS transponder Dimension drawing of mounting clip for RTLS transponder All dimensions in mm. SIMATIC RTLS4040T Operating Instructions, 05/2023, C79000-G8976-C596-04... -
Page 13: Installation & Operation
This applies to lithium-ion batteries: • Do not squeeze • Do not heat and do not burn • Do not short-circuit • Do not disassemble • Do not immerse in liquid - the battery may crack or burst SIMATIC RTLS4040T Operating Instructions, 05/2023, C79000-G8976-C596-04... - Page 14 Strong senders in close vicinity can interfere with the reception, even when they are located in neighboring frequency bands (de-sensing). This is true, for example, for the 2.4 GHz ISM band and PULSE in the UWB channel 5. SIMATIC RTLS4040T Operating Instructions, 05/2023, C79000-G8976-C596-04...
-
Page 15: Operation
Improper opening or repair of the transponder may result in serious risks for the user. Opening the transponder without permission renders the warranty of the Siemens AG null and void. Do not clean the enclosure with liquids or abrasive, caustic or flammable cleaning products. - Page 16 Read also the descriptions of the operating states of the transponder in section "LED operation display & function button (Page 10)". SIMATIC RTLS4040T Operating Instructions, 05/2023, C79000-G8976-C596-04...
-
Page 17: Technical Specifications
Technical specifications Table 4- 1 Technical specifications of the RTLS4040T transponder 6GT2700-5DA03 Product name SIMATIC RTLS4040T PULSE radio frequencies (localization) Wireless method IEEE 802.15.4-2015 UWB HRP PHY Transmission speed 850 Kbps Operating frequency rated value 3993.6 MHz (UWB channel 2; CE) 6489.6 MHz (UWB channel 5;... -
Page 18: Rtls Charging Station Technical Specifications
Design, dimensions, weights and connectors of RTLS charging station Dimensions (L x W x H) 298.4 mm x 179mm x 81.5 mm Weight 1092 g Degree of protection IP00 Enclosure Plastic enclosure (PC 10 GF) Color Titanium gray SIMATIC RTLS4040T Operating Instructions, 05/2023, C79000-G8976-C596-04... -
Page 19: Technical Specifications Of The Mounting Clip For Rtls Transponder
51.6 x 67.7 x 18.1 mm; tolerances according to DIN 16742-TG5 Weight Fastening method 4 x screws (max. Ø 3.5 mm) with washers (not included in product package) Ensure that the screw head does not damage the transponder. Verification of suitability SIMATIC RTLS4040T Operating Instructions, 05/2023, C79000-G8976-C596-04... - Page 20 Technical specifications 4.2 Technical specifications of the mounting clip for RTLS transponder SIMATIC RTLS4040T Operating Instructions, 05/2023, C79000-G8976-C596-04...
-
Page 21: Approvals
Process Automation DE-76181 Karlsruhe Germany Importer UK: Siemens plc, Manchester M20 2UR You can find the current UK Declaration of Conformity for these products on the Internet pages under Siemens Industry Online Support (https://support.industry.siemens.com/cs/en/en/view/109801531). SIMATIC RTLS4040T Operating Instructions, 05/2023, C79000-G8976-C596-04... - Page 22 Electromagnetic compatibility and radio spectrum matters (ERM) - Electromagnetic compatibility for radio equipment and services - Part 33: Special conditions for ultra-wideband (UWB) devices • EN 50121-3-2 Railway applications - Electromagnetic compatibility - Part 3-2: Rolling stock - Devices SIMATIC RTLS4040T Operating Instructions, 05/2023, C79000-G8976-C596-04...
- Page 23 3.2 of the EU Directive 2014/53/EU • ETSI EN 302 065-2 Short Range Devices (SRD) using ultra-wideband technology (UWB); Harmonized standard covering the essential requirements of article 3.2 of the Directive 2014/53/EU; Part 2: Requirements for UWB location tracking SIMATIC RTLS4040T Operating Instructions, 05/2023, C79000-G8976-C596-04...
