Summary of Contents for Hisense AVS-07H3FSTD

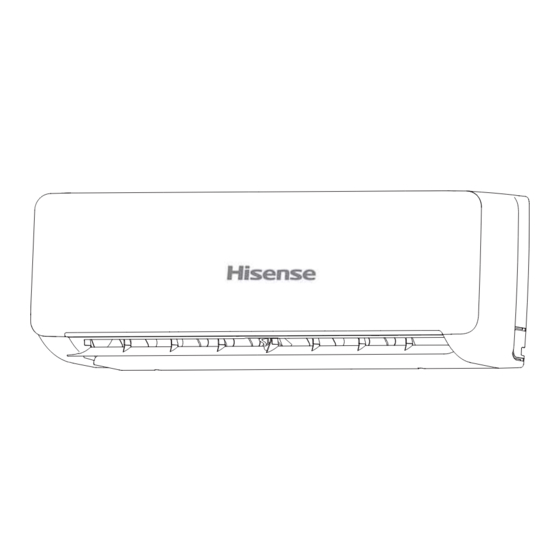

- Page 1 AVS-07H3FSTD AVS-09H3FSTD Wall- AVS-12H3FSTD Mounted AVS-14H3FSTD Type AVS-18H3FSTD AVS-22H3FSTD AVS-24H3FSTD M00370Q ORIGINAL INSTRUCTIONS...
- Page 3 HISENSE HISENSE HISENSE Mouted with the lowest moving parts at least 2.4m(8ft.) above floor or grade level. Maximum Minimum Indoor F DB/74 F WB (32 C DB/23 C WB) F DB/59 F WB (21 C DB/15 C WB) Cooling Operation...
-
Page 5: Important Notice
To return your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmental safe recycling. HISENSE's HISENSE's... - Page 7 Identification of Parts Remote Control Switch Signal Receptor Setting of Swing Louver Filter Cleaning Taking Out the Filter Cleaning the Filter Reset of Filter Indication Section2 Installation & Maintenance Manual...
- Page 8 Common 10.1 10.2 10.3 the Filter Indication Interval 10.4 Indoor Unit Address...
- Page 9 (kBtu/h) 09 12 Wall-Mounted Type Do not use any sprays such as insecticide, lacquer, hair spray or other flammable gases within approximately 1m(3.3ft.) from the system. The appliance is not to be used by children or person with reduced physical, mental capabilities,or lack of experience and knowledge, unless they have been given supervision or instruction...
- Page 10 2.1 Identification of Parts Fig.2.1 External Parts of System...
- Page 11 If the remote control shows Celsius temperature. Please press the " " and " " switches more than 3 seconds at the same time. The temperature display of the remote controller can convert Celsius to Fahrenheit. Press switches only with fingers. Do not press switches by any other item,as it may break switches.
-
Page 12: Display Introduction
Display introduction Fig.4.1 Signal Receptor To operate the room air conditioner, aim the remote controller to the signal receptor. The remote controller will operate the air conditioner at a distance of up to 5m(16.5ft.) when pointing at signal receptor of indoor unit. Signal display lights for 10 seconds, when operate the wireless remote control switch. - Page 13 Make sure that the outdoor unit is not covered with snow or ice. If covered, remove it by using hot water When the outlet air temperature reaches higher (approximately 50°C(122°F)). than approximately 30°C(86°F), swinging of If the water temperature is higher than louvers is started.
- Page 15 approximately 40°C(104°F). “ RESET” When the cooling operation continues for a long period of time under high humidity conditions (higher than 27°C(80°F)/80% R.H.), dew can form on the air panel.
- Page 16 Do not install the indoor unit, outdoor unit, remote control switch and cable within approximately 3m(9.8ft.) from strong electromagnetic wave radiators such as medical equipment. Users can not change power lines by themselves, replaced by professional maintenance staffs. 2. Necessary Tools and Instrument List for Installation equipments for R410A irrelevant...
- Page 17 2.4m(8ft.) wall and hanging board Quantity Accessory Purpose Mounting For Mounting Indoor Unit Bracket Wireless Remote For Control the Indoor Unit Control Switch Screw For Mounting Bracket Screw Cover Cover screw hole Thermal For Refrigerant Pipe Insulation Pipe For Mounting Bracket Plug Refirgerant For Refrigerant Pipe...
-
Page 18: Installation
Utilize Six Screws. Fixing Screw for Mounting Bracket Mounting Bracket Mounting Bracket 3m(9.8ft.) Screw Plug Drill holes of 32mm (1-17/64in.) in depth on the wall Fig. 4.4 Mounting on Concrete Wall or Concrete Block Wall NOTE 4.3 Installation The mounting bracket should be installed so that the side of drain piping connected is The dimensions of the mounting bracket and the slightly (about 3mm(1/8in.)) lower than the... - Page 19 unit:mm(in.) 561(22-3/32) (3-15/16) 66(2-19/32) (3-15/16) ( 65(2-9/16)) ( 65(2-9/16)) Model (kBtu/h 07 ~ 14 (6-17/64) (6-39/64) (1-17/32) (3-35/64) (1-3/8) 18 24 (11-29/64) (7-43/64) (1-57/64) (7-29/32) (2-13/64) Fig.4.3 Mounting Bracket...
- Page 20 4.3.2 Mounting the Indoor Units 4.3.3 Removing Flat Panel Hook the indoor unit to the mounting bracket, In order to connect the refrigerant piping, maintaining the indoor unit upright. wiring and to check drain water flow, removing the flat panel is needed. Perform these work according to the following instructions.
- Page 21 When removing f panel, do not apply strong forces by hitting, etc. It R410A may break the unit body. Flat Panel Unit Body 5.1 Piping Materials 4.3.4 Install Flat Panel (1) Prepare locally-supplied copper pipes. (2) Select the piping size from the following table. (1) Press flat panel down , make the two joints of the flat panel tightly fasten.
- Page 22 5.2 Piping Connection (1) Position of piping connection is shown in Figure 5.1 and 5.2. (2) Piping Direction for the Indoor Unit :Three directions of piping connection to the indoor unit can be performed; to the rear side, the right When bending the pipes, firmly fix the pipe at side and the left side of the unit, respectively.
-
Page 23: Drain Piping
(3) When tightening the flare nut, use two Drain Piping spanners as shown in Fig. 5.3 (1) The standard direction of drain piping connection is right side as viewed from the discharge grilles. However, it can be performed from the left side or rear side. - Page 24 (3) Provide a vinyl chloride pipe, VP20. (4) Connect a drain piping as shown in Fig. 6 Use adhesive tape for connecting the drain pipe. Turn OFF the main power switches to the indoor unit and outdoor unit before electrical wiring or periodical check, and wait for at least three minutes.
- Page 25 7.1 General Check (1) Make sure that the field-supplied electrical components (main power switches, circuit breakers, Open the flat panel wires, conduit connectors and wire terminals) have been properly selected according to the electrical Remove the fixing screw for the electrical box cover data given in “Technical CatalogⅠ”.
- Page 26 ELB must be connected to the power circuit. If not ,it may be danger. Apply the specified screw for terminal board and fasten the screw firmly. There is a fixed screw and three earth wire screws on the TP. As shown in the Fig.7.2, the screw for fixing TP and electrical box, earth wire screw 2 and 3 are installed in the factory, and the earth wire screw 1 is...
- Page 27 Indoor Unit Model 07~24 For Control Circuit 3.15 Fuse Capacity Freeze Protection Cut-Out (°F) 0(32) Thermostat (°F) 14(58) Cut-In 10.1 Field Minimum Wire Sizes for Power Souce Communica Units Power supply Fan motor Power supply Voltage tion Cable wiring size Model Hz Volts Size...
- Page 28 (2) Fuse Recover(DSW7) 10.2 Setting of Dip Switches No setting is required. (A) Position of Dip Switches Setting position before shipment is all OFF. PCB1 DSW7 DSW4 DSW3 Once strong current is accidentally connected to Terminals 1 and 2 of TB, the PCB fuse will be blown.
- Page 29 10.3 Setting the Filter Indication Interval The FILTER indication interval on the remote control switch can be set approximately 100, 1,200 or 2,500 hours (factory setting: 1200 hours). If 100, 1,200 or 2,500 hours interval is required, follow the instructions below. "...
- Page 30 10.4 Indoor Unit Address Indoor Unit Address Change This function changes the address (refrigerant cycle number and indoor unit number) of indoor units. " " " " (1) Press and hold (menu) and (return) simultaneously for at least 3 seconds during the normal mode (when unit is not operated) .The test run menu will be displayed.
- Page 31 Address Check Operation This function is used to check the relation between the indoor unit and I.U. address. This operation is effective when multiple indoor units are connected to the remote control switch and address of the certain unit is unknown. "...
- Page 32 1127164 Qingdao Hisense Hitachi Air-conditioning Systems Co., Ltd. Add: 218, Qianwangang Road, Economic & Technical Development Zone, Qingdao, P.R. China http://www.hisense-vrf.com E-mail：export@hisensehitachi.com M00370Q 2020.02 V02...
