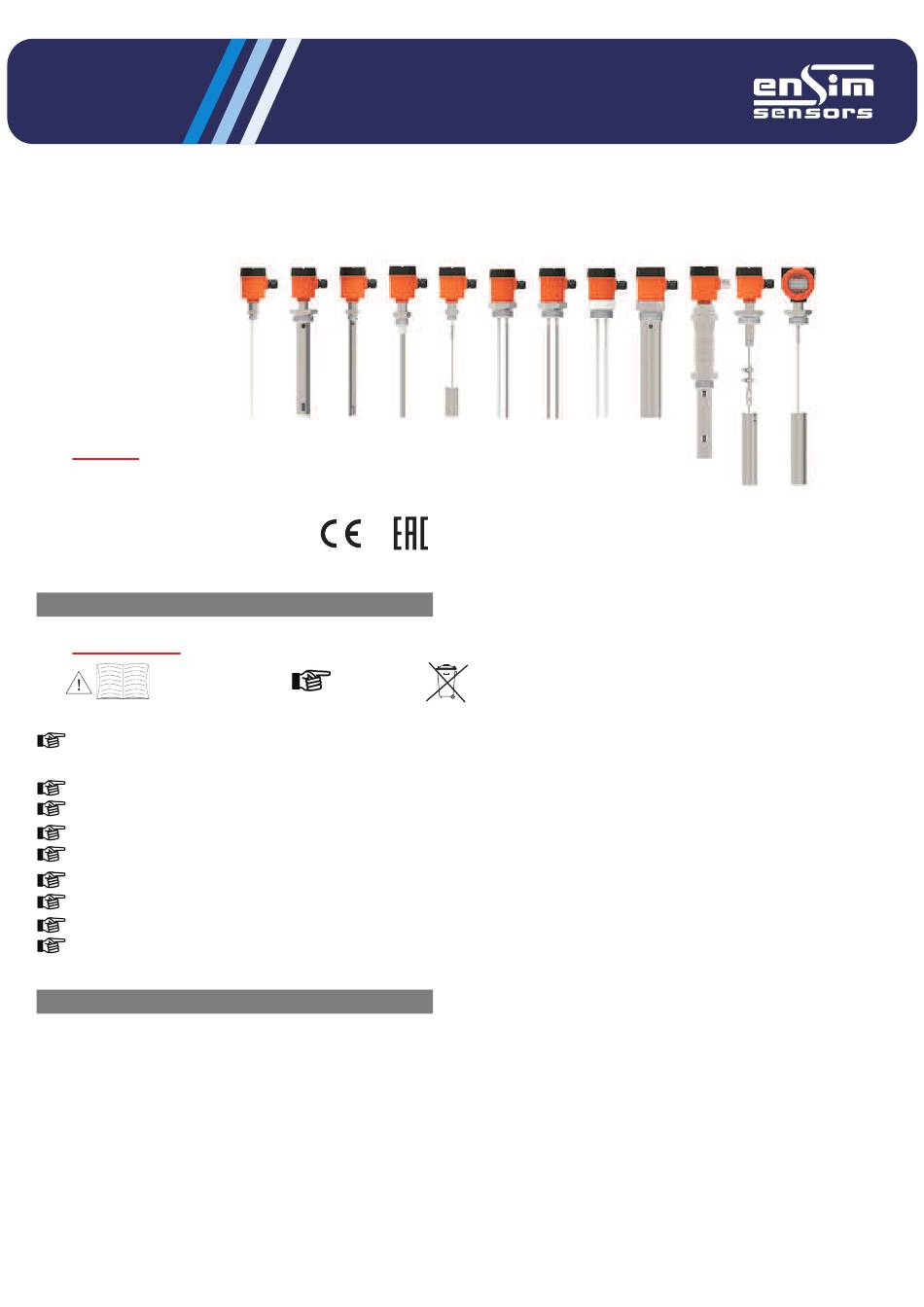

OPERATING
MANUEL
Information in this manual is reviewed and completely reliable. Responsibility is not assumed due to any typing error.
Products in this manual are available only for information purpose and they may be changed without notice.
Modeller :
ECAP 101/ 102 / 103 / 107
ECAP 202 / 203 / 204 / 205
ECAP 304 / 305 / 306 / 309 / 30S
ECAP 408A / 408B / 408T / 408Tp
Important Notes:
Used Symbols :
: Caution
Please read this manual carefully before installation of the level transmitter. User is responsible for accidents and losses arising
from failure to comply with the warnings in this manual.
In the event that level transmitter is broken, take measures in order to prevent accidents and losses which can occur in its system.
There is not any fuse and circuit breaker on the instrument; they should have been added to the system by the user.
This manual should be stored in an easily accessible place for subsequent use.
The manufacturer's liability cannot exceed the purchase price of the device according to the law.
Do not make any modification on the instrument and do not try to repair it. Reparation should be made by authorized service staff.
Do not operate the system before making assembly in compliance with the assembly chart related to the instrument.
Products which do not contain label and serial number are considered to be excluded from the warranty scope.
The instrument's useful life, determined and announced by the ministry, is 10 years.
Table of Contents :
1.
General Information...........................................................................................................................................................................2
2.
Installation .........................................................................................................................................................................................5
3.
Failure Detection..............................................................................................................................................................................17
4.
Disassembly of Instrument ............................................................................................................................................................17
5.
Service .............................................................................................................................................................................................17
6.
Recalibration....................................................................................................................................................................................17
7.
Repair................................................................................................................................................................................................17
8.
Disposal ...........................................................................................................................................................................................17
9.
Terms of Warranty ..........................................................................................................................................................................17
10.
Terms of Return …………………………………………………………………………………………................................................…17
ECAP
Model :
LEVEL TRANSMITTER
: Disposal
: Note
1
Model : 13-2021-009
Advertisement
Table of Contents
Related Manuals for ENSIM SENSORS ECAP 101
Summary of Contents for ENSIM SENSORS ECAP 101
-
Page 1: Table Of Contents
Products in this manual are available only for information purpose and they may be changed without notice. Modeller : ECAP 101/ 102 / 103 / 107 ECAP 202 / 203 / 204 / 205 ECAP 304 / 305 / 306 / 309 / 30S... -
Page 2: General Information
1. General Information : 1.1. Material Acceptance Check that there is no damage on the packages during the transportation immediately after the material acceptance. If packages are damaged, open the packages immediately and check whether products are affected or not, if there is any damage, send your complaint report to the transporter company and its photocopy to the address of our company. - Page 4 1.4. Technical Specifications and Technical Specifications: Material Information 1.5. Label Information Product Label Box Label Manufacturer Brand Product Name Approval Sign Product Name Manufacturer LEVEL SWITCH Brand LEVEL TRANSMITTER Approval Sign Model Model Type ECAP101-9400-1-006-19-01-67-02-00/0 Type ECAP101-9400-1-006-19-01-67-02-00/0 Warning Warning S.N. Output 4-20mA Serial...
-
Page 5: Installation
1.6. Hedef Grubu Bu kullaným kýlavuzu kalifiye teknik personel için hazýrlanmýþtýr. 1.7. Güvenlik Notlarý Aþaðýdaki notlar operatör ve çevresinde oluþabilecek tehlikelerden kaçýnmak için dikkate alýnmalýdýr. Bu cihazýn kurulumu, kullanýmý ve bakýmý yalnýzca kullaným kýlavuzunu okumuþ ve iþ güvenliði konusunda bilgili kiþilerce yapýlmalýdýr! Ýþ... - Page 6 2.5. Electrical Installation Make the electrical connection of the instrument according to details on its label, table and cable figures in this manual 4-20 mA Two Wire 4-20 mA Three Wire B010 Aluminium Housing (For Double Cell) Load Output Supply Output 0-20 mA Three Wire 0-10 V Three Wire...
- Page 7 Identification of Calibration Buttons : Z (Starting Range-Zero) : S (Measuring Range-Span): Switch Settings of Output Signal : 4-20 mA Two Wire 4-20 mA Three Wire 0-20 mA Three Wire 0-10 V Three Wire Calibration : Shifting Span Point : Shifting Zero Point : Make SW2 ON Make SW2 ON before SW1 ON...
- Page 8 2.6. Application Examples Application Examples : Electronic Unit with Cable: Protection Case: Material :...
- Page 9 Housing : B10p B11p B10x B101x B20p B20x B010 B22x ORDER PROTECTION SIZE TYPE MATERIAL TEMPERATURE ° CODE CLASS a x b x c (mm)
- Page 10 2.7. Mechanical Dimensions C O N D U C T I V E L I Q U I D S Sample ECAP 101 ECAP 102 Models: Fully Insulated Fully Insulated Coaxial Probe Conductive Tank Insulated Tank ECAP 103 ECAP 107...
- Page 11 LOW CONDUCTIVE LIQUIDS Sample Models: ECAP 202 ECAP 203 ECAP 20S Partly Insulated Coaxial Probe Partly Insulated Coaxial Probe Partly Insulated Coaxial Probe Conductive / Insulating Tank Conductive / Insulating Tank Conductive / Insulating Tank ECAP 204 ECAP 204 ECAP 205 Partly Insulated Rope Partly Insulated Rope Partly Insulated Probe...
- Page 12 S O L I D S P A R T I C U L A T E M A T E R I A L S Sample Models: ECAP 304 ECAP 305 Partly Insulated Rope Partly Insulated Probe Conductive Tank Conductive Tank ECAP 306 ECAP 30S...
- Page 13 A D H E S I V E A N D A C I D B A S I C L I Q U I D S Sample Models: ECAP 408A ECAP 408B ECAP 408B Double Probe (Single Fully Insulated) Double Partly Insulated Probe Double Partly Insulated Probe Conductive / Insulating Tank...
- Page 14 2.8. Mechanical Connection Thread Flanged Clamp Dairy...
- Page 15 2.9. Order Type Order Form : Please consider sample models when coding. ECAP CERTIFICATE PROBE TYPE (MAX. LENGHT) PROBE DIAMETER (Ø) STEM LENGHT PROCESS TEMPERATURE CONNECTION OUTPUT HOUSING INSULATION MATERIAL CONNECTION MATERIAL ELECTRICAL CONNECTION OPTIONAL SAMPLE...
- Page 16 2.10. WARNING !!! Please pay attention to following matters in order to operate your flow switch properly. Keep distance with By-pass tube diameter Distance between tank’s Mount from above and loading junction should be 80mm at least surface and the probe center of the tank should be greater than 100mm Transmitter’s neck connector...
-
Page 17: Failure Detection
3. Failure Delection Your device must be repair only at an outhorized serviced. Breakdown Probable cause Failure detection\correction Supply voltage may not be work. The supply voltage must be checked. Power Led does not work. Power led might be faulty. Please apply to service.
