OPERATING
MANUEL
Information in this manual is reviewed and completely reliable. Responsibility is not assumed due to any typing error.
Products in this manual are available only for information purpose and they may be changed without notice.
Models:
Important Notes:
Used Symbols :
Please read this manual carefully before installation of the
accidents and losses arising from failure to comply with the warnings in this manual.
In the event that
can occur in its system.
There is not any fuse and circuit breaker on the instrument; they should have been added to the system
by the user.
This manual should be stored in an easily accessible place for subsequent use.
Do not operate the system before making assembly in compliance with the assembly chart related
to the instrument.
Do not make any modification on the instrument and do not try to repair it. Reparation should be made
by authorized service personnel.
The instrument's useful life, determined and announced by the ministry, is 10 years.
Products which do not contain label and serial number are considered to be excluded from the warranty scope.
Table of Contents :
DX-ELS-tx
Model :
LEVEL TRANSMITTERS
1783
is broken, take measures in order to prevent accidents and losses which
. User is responsible for
1
Model: 01-2019-004
Advertisement
Related Manuals for ENSIM SENSORS DX-ELS-tx
Summary of Contents for ENSIM SENSORS DX-ELS-tx

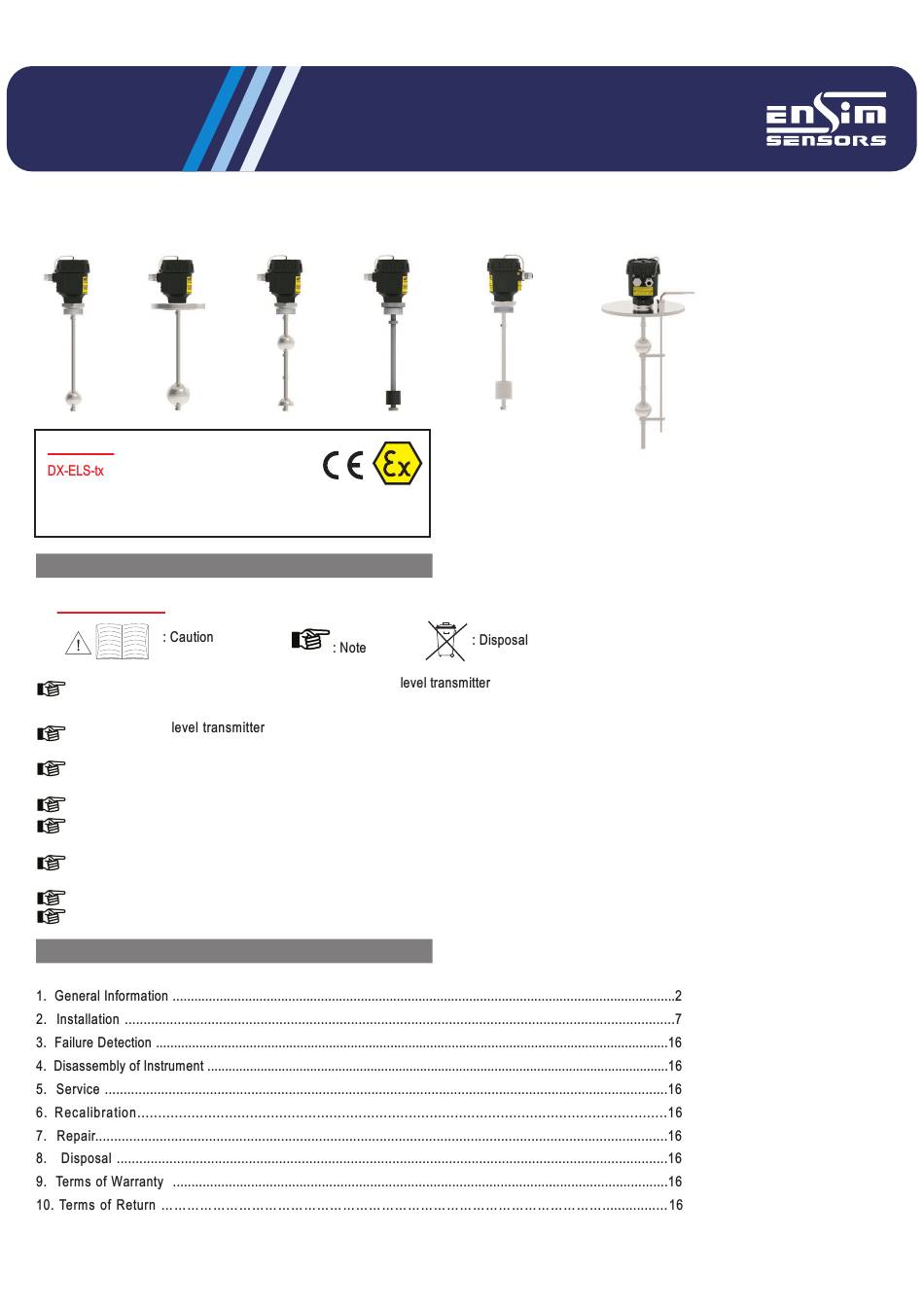

- Page 1 Model: 01-2019-004 OPERATING DX-ELS-tx Model : MANUEL LEVEL TRANSMITTERS Information in this manual is reviewed and completely reliable. Responsibility is not assumed due to any typing error. Products in this manual are available only for information purpose and they may be changed without notice.
-
Page 2: General Information
(It is not used under -20 °C) DX-ELS-tx level sensors are used for tank levels and for controls. In the float when the magnet magnetic area moves according to the liquid in the tube, then the reed swicthes the electrical circuit on or off when it reaches the level of the sensor.Reed swicthes in and out. - Page 3 ll 1/2 G Ex d llC Tx*1 Ga/Gb For Gas ll 1/2 D Ex (ta/tb)*3 lllC Tx*2 For Dust Have a look at the temperature class chart. Working Temperature (Tp) Max. 100 °C Ambient Humidity 0-98 %Rh (Non-condensing) Ambient Temperature (Ta) (-) 20 °C ...
- Page 4 1783 Level Switch DX-ELS-tx 025-00-009-02-12-02-500-113-19-10/0 24VDC +/- %10 4-20mA Two Wire : Max. 125°C / Max. 30 bar -20...+60°C IE18030050-0008 www.ensim.com.tr MADE IN TURKIYE www.ensim.com.tr TSE 18ATEX0099 ll 1/2 G Ex d llC Tx*1 Ga/Gb ll 1/2 D Ex (ta/tb)*3 lllC Tx*2 Type S.No:...
- Page 5 The following notes must be taken into attention to protect the operator and the enviroment from possible hazards. The device setup and maintenance of this device must be done by knowledgeable persons who has read the instructions and is familiar with the safety at work.
- Page 6 ta/tb IIIC IP66 Explosive Protection Area Equipment Group Equipment Category Explosive Atmosphere Explosive Protection Protection Type Dust Type Temperature Class (Max. Surface Temperature) Housing Protection Class IP66 Explosive Protection Area Equipment Group Equipment Category Explosive Atmosphere Explosive Protection Protection Type Gass Type Temperature Class (Max.
- Page 7 2. Installation : The device installation is in 2014 / 34 / EU criteria to ensure the safety of atmosphere and people from explosions, must only be done by staff who knows the safeguards. Do not apply force to the instrument during the installation! Do not use the with a greater pressure than recommended pressure.
- Page 8 Process Side Factory Area (Explosive Enviroment) (Safe) ZONE 20 / 0 ZONE 21 / 1 ZONE 21 / 1 ZONE 22 / 2 ZONE 22 / 2 Make the electrical connection of the instrument according to details on its label, table and cable figures in this manual...
- Page 9 Minimum S1Y / S1A / S7A / S17A Distances S10Y / S11A / S54A S2A / S5A / S6A S40A / S41A / S53A S42A / S52A P3 / P6 / P7 P9 Order Pipe Max. Max. Code Type Material Dia.
- Page 11 304 Stainless Steel Welded manufacturing Opens - Closes Hinged To Protect Against external conditions.
- Page 12 Chain Cover Set screw Cover Cover Seal Electronic Cart Cable Resistance Reed Relay Grounding Screw Continuous Level Card Grounding Internal Bracket Body Grounding Screw Grounding Outer Bracket Product Label O-Ring Grounding Label Cable Record Stopper Metal Label Body Set screw Body Seal Thread Connection Thread...
- Page 13 Standard Version ......DX-ELS-tx No.................0 (EN10204-3-1) Material Certification......1 Aluminium B20x...........25 Special................x With Terminals (For Housing Models)....00 Special................x Thread 3/8” BSP.........003 1/8” NPT..............051 Thread 1/2 ”BSP.........004 1/4” NPT..............052 Thread 3/4” BSP ........005 3/8” NPT..............053 Thread 1” BSP..........006 1/2” NPT..............054 Thread 1 1/4” BSP........007 3/4”...
- Page 14 Special............../ x DX-ELS-tx 025 - 00 - 009 - 02 - 13 - 02 - 1200 - 113 - 20 - 10 / 0 DX-ELS-tx Level Transmitter, Aluminium Housing, 2” BSP Male Thread, Connection and Pipe Material 316 St.St.
- Page 15 Please pay attention to following matters in order to operate your flow switch properly. Please do not mount Do not pull the cable strongly, Please keep away from magnetic materials slant way, otherwise otherwise the characteristics like iron board ; otherwise the switch do not work correctly.
- Page 16 Breakdown Probable cause Failure detection\correction -Check if their working under favorable conditions , Fluid is leaking -Hole in the body metarial. contact the manufacturer. -The socket may not contact -Check the socket connections. The analog isn't giving -The product has been exposed in a mangetic signal or it's giving the -The magnetic field element must be removed or isolated.
