Installationsanleitung
CON-Line
DE
Installationsanleitung
GB
Installation manual
FR
Guide d'installation
NL
Installatievoorschrift
ES
Guía de instalación
SE
Installationsanvisning
TR
Yükleme Rehberi
RU
инструкция по установке
安装指南
CN
HAGOR Products GmbH | Oberbecksener Straße 97 | D-32547 Bad Oeynhausen | Telefon: +49(0)57 31-7 55 07-0 | Mail: info@hagor.de

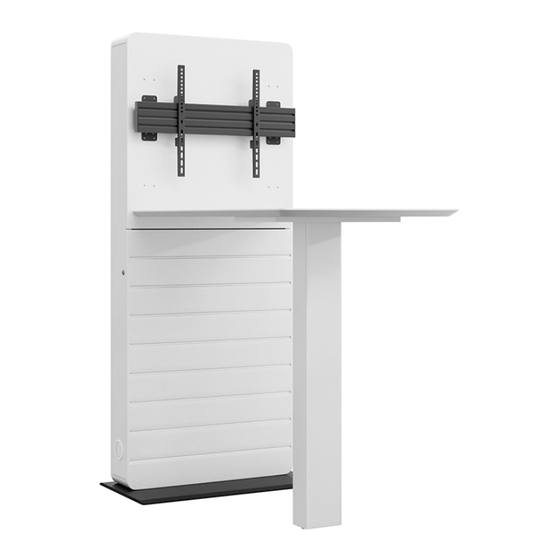

FS Table 32 - 55" | Art.-Nr.: 2815
®
Advertisement
Related Manuals for HAGOR CON-Line FS Table 32-55
Summary of Contents for HAGOR CON-Line FS Table 32-55
- Page 1 FS Table 32 - 55“ | Art.-Nr.: 2815 ® Installationsanleitung Installation manual Guide d‘installation Installatievoorschrift Guía de instalación Installationsanvisning Yükleme Rehberi инструкция по установке 安装指南 HAGOR Products GmbH | Oberbecksener Straße 97 | D-32547 Bad Oeynhausen | Telefon: +49(0)57 31-7 55 07-0 | Mail: info@hagor.de...
- Page 2 If you are unsure about the installation of the product or have any questions, please contact us or other trained specialists. HAGOR Products GmbH | Oberbecksener Straße 97 | D-32547 Bad Oeynhausen | Telefon: +49(0)57 31-7 55 07-0 | Mail: info@hagor.de...
- Page 3 M-B 4x M-C 4x M-A 4x M-D 4x M-E 4x M6x14 M6x30 M5x14 M8x30 M8x50 M-F 4x M-G 8x M-H 8x HAGOR Products GmbH | Oberbecksener Straße 97 | D-32547 Bad Oeynhausen | Telefon: +49(0)57 31-7 55 07-0 | Mail: info@hagor.de...
- Page 4 T-D 6x T-E 2x M6x35 Ø 8,4 mm T-F 2x T-G 2x Ø 8,4 mm HAGOR Products GmbH | Oberbecksener Straße 97 | D-32547 Bad Oeynhausen | Telefon: +49(0)57 31-7 55 07-0 | Mail: info@hagor.de...
- Page 5 Nehmen Sie die Frontblende ab. Die Frontblende ist durch eine Magnetarretierung fixiert. Take off the front panel. The front panel is fixed by a magnet lock. HAGOR Products GmbH | Oberbecksener Straße 97 | D-32547 Bad Oeynhausen | Telefon: +49(0)57 31-7 55 07-0 | Mail: info@hagor.de...
- Page 6 Verschraubung der Montageplatte von der Rückwand lösen. Loosen the screw connection of the mounting plate from the rear panel. HAGOR Products GmbH | Oberbecksener Straße 97 | D-32547 Bad Oeynhausen | Telefon: +49(0)57 31-7 55 07-0 | Mail: info@hagor.de...
- Page 7 Setzen Sie die Winkel B und C in den Korpus und verschrauben Sie diese in die Seite des Korpus. Place brackets B and C in the corpus and screw them into the side wall. HAGOR Products GmbH | Oberbecksener Straße 97 | D-32547 Bad Oeynhausen | Telefon: +49(0)57 31-7 55 07-0 | Mail: info@hagor.de...
- Page 8 Lay the corpus on its back and fix the base plate with screws, washers and nuts. Then set the totem up again. HAGOR Products GmbH | Oberbecksener Straße 97 | D-32547 Bad Oeynhausen | Telefon: +49(0)57 31-7 55 07-0 | Mail: info@hagor.de...
- Page 9 Slide the slot nuts into the rail, put on the caps and screw both tight. On the other side as well. HAGOR Products GmbH | Oberbecksener Straße 97 | D-32547 Bad Oeynhausen | Telefon: +49(0)57 31-7 55 07-0 | Mail: info@hagor.de...
- Page 10 The desired mounting height is selected according to the used screen. Align the rail centred and tighten the screws on the back properly now. HAGOR Products GmbH | Oberbecksener Straße 97 | D-32547 Bad Oeynhausen | Telefon: +49(0)57 31-7 55 07-0 | Mail: info@hagor.de...
- Page 11 8 wood drill bit. To do this, use the fastening adapter as a template as shown in the illustration. HAGOR Products GmbH | Oberbecksener Straße 97 | D-32547 Bad Oeynhausen | Telefon: +49(0)57 31-7 55 07-0 | Mail: info@hagor.de...
- Page 12 HAGOR Products GmbH | Oberbecksener Straße 97 | D-32547 Bad Oeynhausen | Telefon: +49(0)57 31-7 55 07-0 | Mail: info@hagor.de...
- Page 13 Hängen Sie den Bildschirm in die Halterung ein und ziehen Sie nach dem Ausrichten, die Sicherheitsschrauben fest. Attach the screen to the bracket and after aligning, tighten the security screws. HAGOR Products GmbH | Oberbecksener Straße 97 | D-32547 Bad Oeynhausen | Telefon: +49(0)57 31-7 55 07-0 | Mail: info@hagor.de...
- Page 14 Positionieren Sie das benötigte AV-Zubehör frei, nach Ihren Wünschen, auf der Montageplatte. Position the required AV accessories freely, according to your wishes, on the mounting plate. HAGOR Products GmbH | Oberbecksener Straße 97 | D-32547 Bad Oeynhausen | Telefon: +49(0)57 31-7 55 07-0 | Mail: info@hagor.de...
- Page 15 Screw the mounting plate back to the rear wall. Finally, the front panel is attached to the front of the corpus again. HAGOR Products GmbH | Oberbecksener Straße 97 | D-32547 Bad Oeynhausen | Telefon: +49(0)57 31-7 55 07-0 | Mail: info@hagor.de...
- Page 16 Place the table top on the surface (Attention: Put something on the floor to protect the table top). and mount the connecting plate together with the table leg on it. HAGOR Products GmbH | Oberbecksener Straße 97 | D-32547 Bad Oeynhausen | Telefon: +49(0)57 31-7 55 07-0 | Mail: info@hagor.de...
- Page 17 Stellfüße). Markieren Sie nun mit einem Stift die Bohrlöcher entlang der Stockschrauben. Now take the HAGOR drilling help and fix them in the corners of the upper corpus. (Distance between edge and marking: 105 mm) Carefully place the table and level it in front of your furniture (use the pre-assembled adjustable feet if necessary).
- Page 18 Now take a wood drill and drill the holes to 8-8.5. (Note: Please pre-drill the hole in advance with a smaller drill bit). HAGOR Products GmbH | Oberbecksener Straße 97 | D-32547 Bad Oeynhausen | Telefon: +49(0)57 31-7 55 07-0 | Mail: info@hagor.de...
- Page 19 Now push the stock bolts through the holes and secure them from the inside with the washers, toothed lock washers as well as the nuts. HAGOR Products GmbH | Oberbecksener Straße 97 | D-32547 Bad Oeynhausen | Telefon: +49(0)57 31-7 55 07-0 | Mail: info@hagor.de...
- Page 20 Finally, the front panel is attached to the front of the corpus again. The front panel is fixed by a magnet lock. HAGOR Products GmbH | Oberbecksener Straße 97 | D-32547 Bad Oeynhausen | Telefon: +49(0)57 31-7 55 07-0 | Mail: info@hagor.de...
- Page 21 HAGOR Products GmbH | Oberbecksener Straße 97 | D-32547 Bad Oeynhausen | Telefon: +49(0)57 31-7 55 07-0 | Mail: info@hagor.de...
-
Page 22: Abmessungen | Dimensions
Dieses Dokument ist Eigentum der HAGOR Products GmbH. Weitergabe sowie Vervielfältigung dieses Dokuments, Verwertu Zuwiderhandlung verp ichten zu Schadenersatz. Alle Rechte für den Fall der Patent-, Gebrauchs HAGOR Products GmbH | Oberbecksener Straße 97 | D-32547 Bad Oeynhausen | Telefon: +49(0)57 31-7 55 07-0 | Mail: info@hagor.de... - Page 23 HAGOR Products GmbH | Oberbecksener Straße 97 | D-32547 Bad Oeynhausen | Telefon: +49(0)57 31-7 55 07-0 | Mail: info@hagor.de...
- Page 24 HAGOR Products GmbH | Oberbecksener Straße 97 | D-32547 Bad Oeynhausen | Telefon: +49(0)57 31-7 55 07-0 | Mail: info@hagor.de...
