Antsig AP546 - Flat Panel Indoor Antenna Quick Start Guide

INTRODUCTION

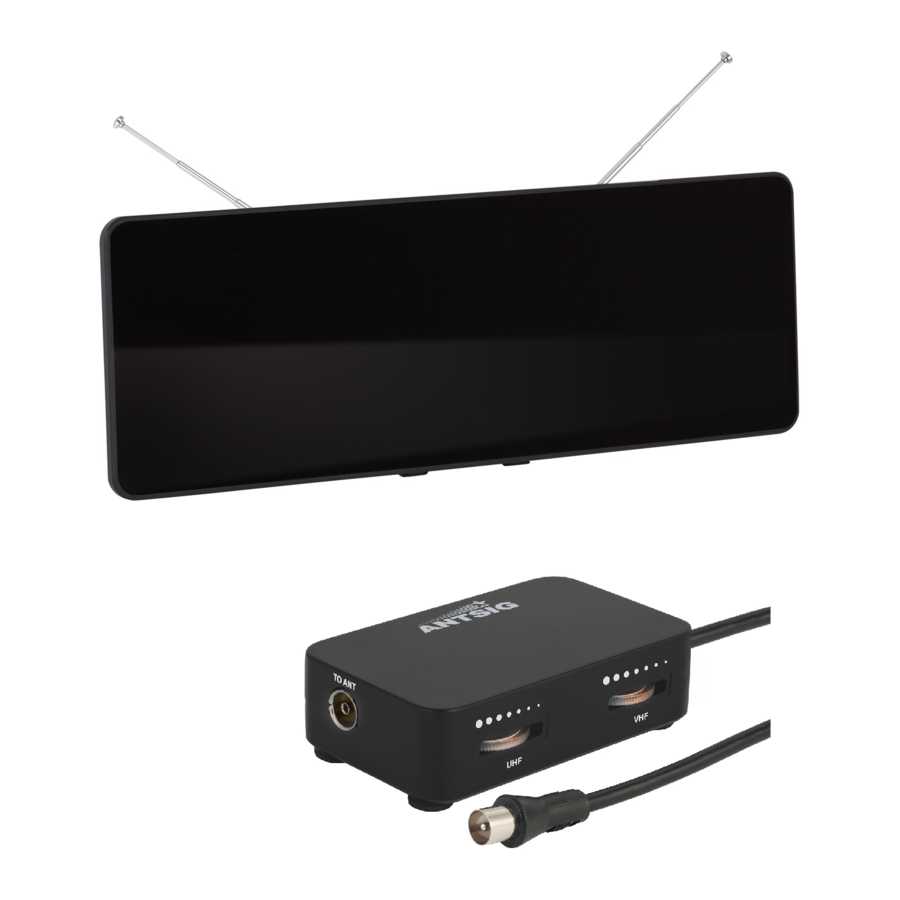

The AP546 digital TV antenna receives full HD television, DAB radio programs and Digital signals. It has a flat panel design with an attractive black gloss finish. An external amplifier has also been coupled with the antenna which has independent UHF and VHF gain adjustments to provide better control over the signals. The amplifier suits areas with weak to strong signals.

FEATURES

• Can be used to received both local and regional UHF and VHF signals
• Unit is coupled with adjustable separated VHF and UHF wide band amplifier for receiving best sound and picture
• External amplifier can be powered either with AC/DC adaptor or with USB cable provided
• Depending on signal reception, the unit can be used both with and without amplifier
• External amplifier can be used with any other type of antenna
• Amplifier includes two gain control integrated power indicators

SPECIFICATIONS

INSTALLATION INSTRUCTIONS

Note: Depending on which connection may give you the best signal, you can use your antenna either with or without the external amplifier. Try using the amplifier first, as it provides the best performance in most situations. If using the external amplifier causes loss of channels that you normally receive, try adjusting the gain independantly, before then trying to connect your antenna without the amplifier.

Operation with Amplifier using Adaptor

1. Plug the antenna's coaxial cable to the ANT socket of the external amplifier

2. Plug the amplifier's coaxial cable to the RF socket of your TV
3. Plug the adaptor's DC plug to the DC socket of external amplifier
4. Connect the adaptor's power plug to the electrical outlet
5. Switch on the TV and AP546 amplifier
6. Choose TV channels required by selection on your TV or remote control
7. To improve either VHF or UHF signal reception, turn the relevant gain tuner clockwise as shown in Fig1.b. A click sound can be heard, which then causes the gain control to glow red. Continue turning the tuner until satisfactory picture is found.


Operation with Amplifier using USB cable

1. Plug the antenna's coaxial cable to the ANT socket of the external amplifier.
2. Plug the amplifier's coaxial cable to the RF socket of your TV.

3. Connect the small plug of the USB cable to the small USB socket of external amplifier.
4. Connect the other end (large plug) of the USB cable to your TV, computer or USB power supply.
5. Switch on the TV and AP546 amplifier.
6. Choose TV channels required by selection on your TV or remote control.
7. To improve either VHF or UHF signal reception, turn the relevant gain tuner clockwise as shown in section A (Fig1.b).
   A click sound will be heard, which will then cause the gain tuners to glow, indicating power on. Continue turning the gain tuners until; satisfactory picture has been found.

Powering the amplifier using your computer. You can watch TV from your computer by connecting a TV tuner to your computer.

Operation without Amplifier Connection to the TV

1. Plug the antenna's coaxial cable to the RF socket of your TV.

2. Adjust antenna face direction, and element lengths/direction until you receive best reception.

Connection to the TV via Digital Receiver

1. Plug the antenna's coaxial cable to the ANT socket of the digital receiver
2. Connect your digital receiver to your TV

3. Adjust antenna face direction, and element lengths/direction until you receive best reception.

TROUBLE SHOOTING

If you are still experiencing reception problems after installation, please refer to the trouble-shooting guide below

Problems with Digital TV Reception
Unlike analogue terrestrial television, it is not possible to view digital channel under weak signal strength conditions. Therefore, typically you will either receive digital channels with a clear picture and sound or you will not receive any channels at all.

Insufficient digital signal can cause occasional blocking, freezing or complete loss of picture. Some roof antennas may not be suitable for digital terrestrial television. Ensure that you have fitted a suitable antenna to help improve signal quality to a suitable level for clear digital reception. Further check that all connections & cable from antenna to receiver are good quality, secure and clean.

Blocking, freezing or complete loss of picture can also occur when a digital signal is too strong. Adjusting the gain control knob until the picture improves may help.

ANTSIG is proudly produced by ARLEC Australia Pty. Ltd.
Visit us at: www.ANTSIG.com
