Antsig AP536 User Manual

AP536

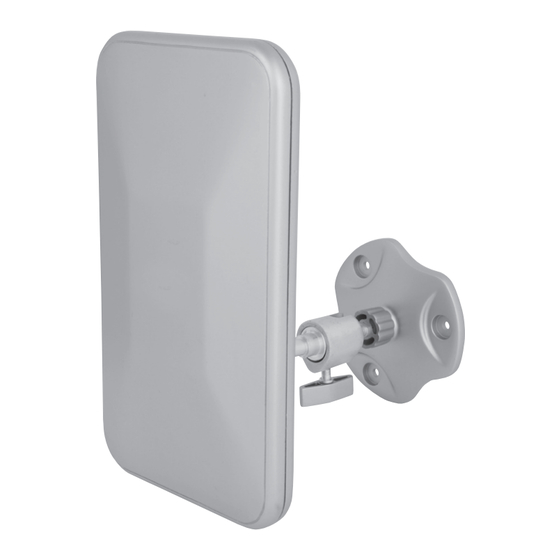

Under Eave Antenna with Built In Amplifier
USER GUIDE
Thanks for purchasing this AP536 Outdoor/Indoor Antenna.
Before installation,
Please read this manual carefully and keep this manual
for further information.

INTRODUCTION

AP536 is especially designed for terrestrial broadcasting reception.
With state-of-art low noise amplifier technology and circuitry, it will
provide best reception. It has compact and stylish housing, and will
accompany your TV or digital Set Top Box (STB).
With UV protected housing and water resistant sealing,
AP536 series antenna can be installed on a wall, window-shelter.
The special multi-directional base mechanism, allows adjustment to
any direction to get the best reception

FEATURES:

• Compact and Stylish design
• UHF 470~870MHz
• VHF 47~230MHz
• Gain 20±3dB
• Low noise amplifier technology
• High Directionality
• Water-proof and anti-UV housing
Powering method:
Via DC adaptor 9V@100mA (into DC input socket)

INSTALLATION

AC Adaptor
AP536 Antenna
1.5 m Flylead
10m Coaxial cable
RF Out RF In
STB or Digital TV
