Inovance Monarch - IC Card Password Keypad Manual

Preface

Thank you for purchasing the new-generation Monarch elevator IC card password keypad.
As an antenna card reader with both card swiping and password functions, the MCTCIC-A2 password keypad can be used to replace the MCTC-IC-A car call controller. Users can make elevator calls by entering passwords or directly swiping cards as required.
Before using this product, read this guide carefully to fully understand features of the product and ensure safe use. This guide describes product information, installation, wiring, and usage guide for your reference.

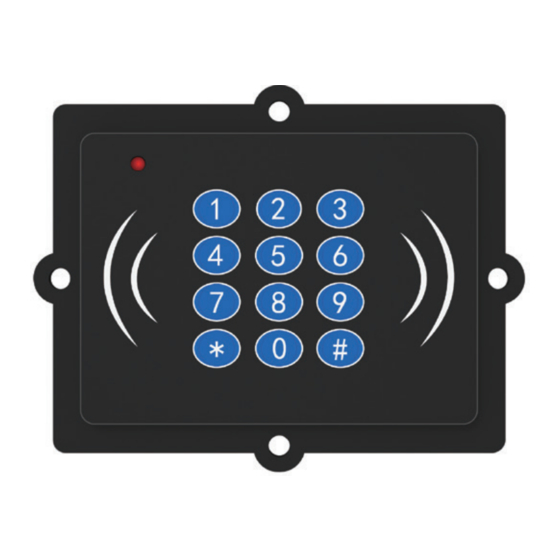

Front view of the product

Function Description

• Users can register, modify, and delete passwords using the password keypad to enable the password elevator call function. Also, the password keypad allows elevator calls by swiping IC cards.
• Administrators can enable or disable the IC card system using passwords.

Acquisition

The information in this user guide is subject to change without notice. Please acquire the latest document version by the following means:

• Contact your product distributor.
• Scan the QR code on the document cover.
• Visit Inovance's website http://www.inovance.com.

Product Information

Overall dimensions

Product dimensions (unit: mm)

Technical specifications

Installation

Directly install the product on the operation panel by following the operations described below.

Installation Guide
Drill a rounded rectangle hole (90.5 mm x 66.5 mm; rounded corner radius: 3.25 mm) on the car wall, and tighten four M4-12 bolts around the rectangle hole. The following figure shows the specific installation hole. Install the product on the four bolts, and tighten the product using four M4 nuts and four M4 washers.	The post-installation figure is shown below.

Note

• Before powering on, ensure that DC 24 V ±10% is adopted.
• Equipment components must be well insulated from the ground.
• Operating environment requirements must be met with sufficient space for heat dissipation.
• It is recommended that the equipment be powered off when connectors are removed.
• Be careful during installation to prevent equipment damages.

Wiring

• Application wiring

  Product wiring

Note

• The DC 24 V±10% power for CTB and car display board is directly used.
• To enable communication with the CTB, connect the 485 interface with the nearest terminal of the CTB or car display board as required.

Usage Guide

Password registration by a user

Flowchart for password registration by a user

Elevator call using a password by a user

Flowchart for elevator call using a password by a user

Password change by a user

Flowchart for password change by a user

Password change by an administrator

Flowchart for password change by an administrator

IC card system enabling and disabling using a password by an administrator

Flowchart for IC card system enabling and disabling by an administrator

User password deletion by an administrator

1. Make a complementary card for a user on the host computer with the password deletion function selected, which indicates that this card is used for deleting a password on the password keypad.
2. The flowchart for deleting a password is as follows.

   Flowchart for password deletion
3. After a password is deleted, elevator call using the original password fails, and new password registration is allowed.

Indicator description

• After #5# is entered for password registration by a user, the indicator blinks in red for 0.5 seconds and in green for 0.5 seconds.
• After #2# is entered for password change by a user, the indicator blinks in red for 50 ms and in red for 1 second.
• After #1# is entered for password change by an administrator, the indicator blinks in red for 1 second and in green for 1 second.
• After a room number and four-digit password are entered for elevator call by a user, the indicator is steady on in green.
• When the password keypad is in idle state, the password deletion function is enabled, or an administrator enables or disables IC card functions using a password, the indicator is steady on in red.

Buzzer sound

• If the buzzer sounds once, a button is pressed.
• If the buzzer sounds twice, the operation is correct, or further operation is allowed during the procedure.
• If the buzzer sounds four times, the operation is incorrect, or further operation is not allowed due to faults such as a password error. In this case, restart the whole procedure.

Note

• A user password consists of a room number (specified during card making with four digits) and a password. For example, if the room number is 1205 and the password is 8543, the user password is 12058543. During password registration and change, only the last four digits of the password are required.
• An administrator password contains 10 digits. A maximum of two administrator passwords can be stored. By default, both the two administrator passwords are set to 1111111111 before delivery. Therefore, the two administrator passwords must be changed after installation.
• After entering a password, press # to confirm.
• If an incorrect password is entered, press * to exit. Then, restart the whole procedure to register or change the password.
• If no operation is performed within a specified period, the system automatically exits the current procedure.
